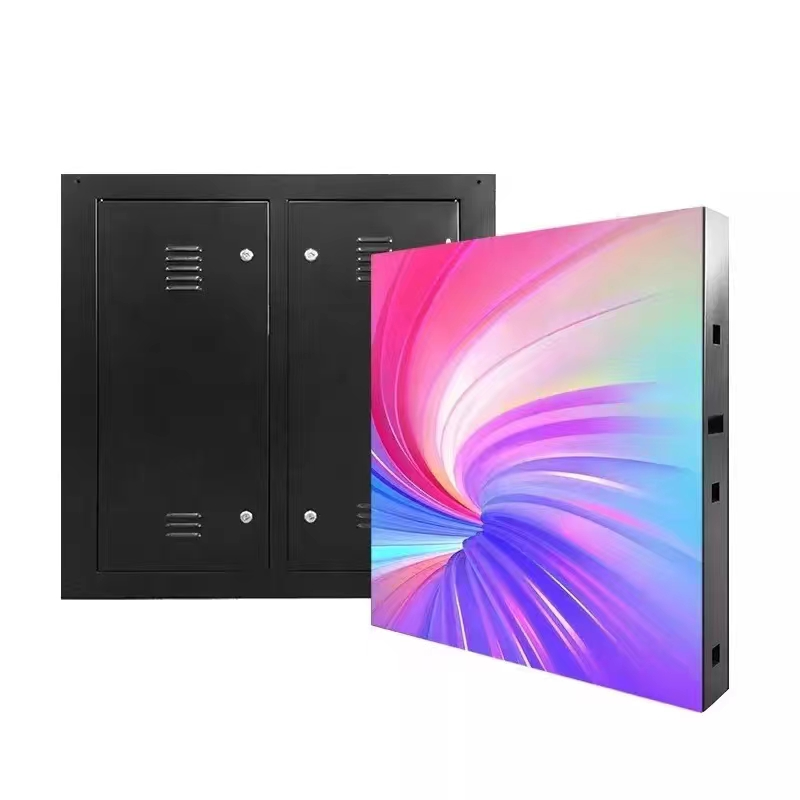

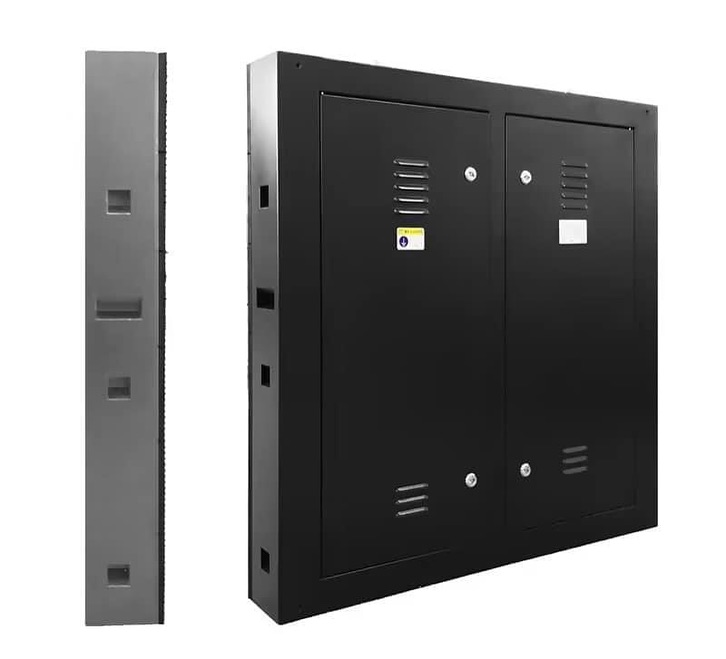

Outdoor MS LED Screen

• Application
• Advertising, Events, Stage, Stadiums

• Brightness
• 5000 cd/m cd/m sq

• Cable Type
• Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.

• Conductor
• High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation

• Control Mode
• Synchronous/Asynchronous

• Display Function
• Other

• Display Type
• Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.

• Features
• High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.

• Frequency
• 3840 Hertz (HZ)

• Input Voltage
• AC 220V / 110V 10%, 50~60Hz Volt (V)

• LED Type
• SMD1921

• Material
• eavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

• Operating Temperature
• 20 C to +60 C. Celsius (oC)

• Phase
• Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

• Pixels
• 2.5mm Pixel Pitch Pixel (P)

• Power Consumption
• Max 650W/m , Avg 200W/m Volt-Ampere (VA)

• Power Rating
• Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.

• Protection Level
• IP65

• Rated Current
• Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

• Rated Voltage
• Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

• Screen Dimension
• As per requirement

• Size
• Customizable

• Tube Chip Color
• Other

• Usage
• Outdoor

• Usage & Applications
• Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.

• View Angle
• 140 (horizontal & vertical)

• Warranty
• 2.Years

• Working Temperature
• -20 C to +50 C Fahrenheit (oF)

• Application
• Advertising, Events, Stadiums, Public Display

• Brightness
• 4500 cd/m cd/m sq

• Cable Type
• Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.

• Conductor
• High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.

• Control Mode
• Synchronous/Asynchronous

• Display Function
• Video

• Display Type
• Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.

• Features
• High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.

• Frequency
• 3840 Hertz (HZ)

• Input Voltage
• AC 220V/110V 10% Volt (V)

• LED Type
• SMD3535

• Material
• Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

• Operating Temperature
• 20 C to +60 C. Fahrenheit (oF)

• Phase
• Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

• Pixels
• P6 (6mm pixel pitch) Pixel (P)

• Power Consumption
• Max 850W/m , Avg 250W/m Volt-Ampere (VA)

• Power Rating
• Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.

• Protection Level
• IP65

• Rated Current
• Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

• Rated Voltage
• Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

• Screen Dimension
• Customized

• Size
• Customizable

• Tube Chip Color
• Full Color

• Usage
• Outdoor

• Usage & Applications
• Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.

• View Angle
• 140 (Horizontal) / 120 (Vertical)

• Warranty
• 2.Years

• Working Temperature
• -20 C to +60 C Fahrenheit (oF)

• Application
• Advertising, Events, Stage, Stadiums

• Brightness
• 5500 cd/m cd/m sq

• Cable Type
• Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.

• Conductor
• High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.

• Control Mode
• Synchronous / Asynchronous

• Display Function
• Other

• Display Type
• Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.

• Features
• High-brightness P3 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.

• Frequency
• 3840 Hertz (HZ)

• Input Voltage
• AC 220V 10%, 50/60Hz Volt (V)

• LED Type
• SMD 1921

• Material
• Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

• Operating Temperature
• Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF)

• Phase
• Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

• Pixels
• 3mm pixel pitch Pixel (P)

• Power Consumption
• Max 800W/m , Avg 260W/m Volt (V)

• Power Rating
• Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.

• Protection Level
• IP65

• Rated Current
• Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

• Rated Voltage
• Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

• Screen Dimension
• Customize as per requirement

• Size

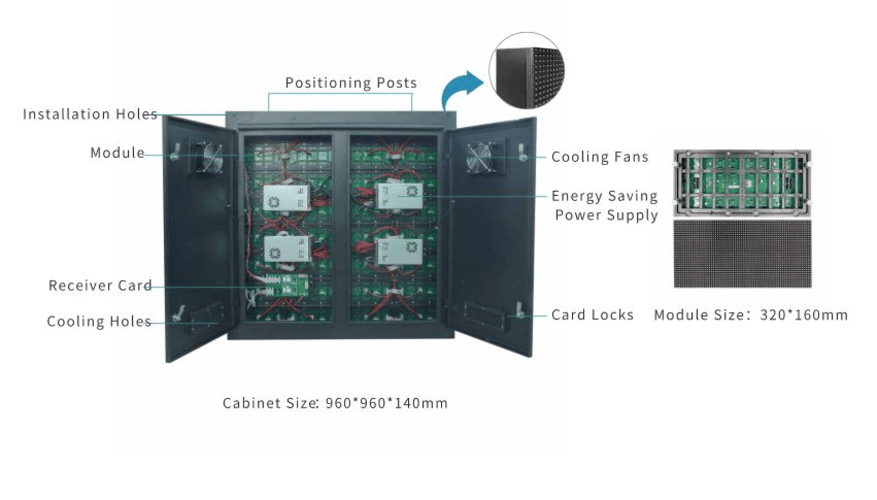

• Cabinet Size: 960mm x 960mm

• Tube Chip Color
• Full Color

• Usage
• Outdoor

• Usage & Applications
• deal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.

• View Angle
• Horizontal 140 , Vertical 120

• Warranty
• 2.Years

• Working Temperature
• -20 C to +60 C Fahrenheit (oF)

• Application
• Advertising, Event Display, Rental, Stadium

• Brightness
• 5500 nits cd/m sq

• Cable Type
• High-conductivity multi-strand copper power cables with heat-resistant FR insulation and shielded twisted-pair signal cables for stable outdoor operation.

• Conductor
• High-conductivity Copper (Cu) wiring

• Control Mode
• Synchronization with PC via Network, USB, or Wi-Fi

• Display Function
• Other

• Display Type
• Full-Color RGB SMD Outdoor LED Display (High-Brightness, Weatherproof Type)

• Features
• High-brightness P4 display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for smooth outdoor performance.

• Frequency
• 3840 Hertz (HZ)

• Input Voltage
• AC 110V/220V, 50-60Hz Volt (V)

• LED Type
• SMD1921

• Material
• Heavy-duty powder-coated Mild Steel (MS) cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

• Operating Temperature
• 20 C to +60 C Fahrenheit (oF)

• Phase
• Operates on Single Phase (220V AC) for standard setups, with Three Phase (380 415V AC) recommended for large-scale installations.

• Pixels
• P4 (4mm pixel pitch) Pixel (P)

• Power Consumption
• 600W/sqm (max), 200W/sqm (avg) Volt-Ampere (VA)

• Power Rating
• Maximum Power Consumption: 800 900 W per cabinet Average Power Consumption: 250 350 W per cabinet

• Protection Level
• IP65

• Rated Voltage
• AC 220V 10%, 50Hz Volt (V)

• Screen Dimension
• Customized as per requirement

• Size
• Customized

• Tube Chip Color
• Other

• Usage
• Outdoor

• Usage & Applications
• Outdoor Advertising Billboards Retail Facade Displays Stadium & Arena Signage Transportation Hubs (Bus/Train Stations) Public Information Displays Event & Exhibition Screens

• View Angle
• Horizontal 140 , Vertical 120

• Warranty
• 2.Years

• Working Temperature
• -20 C to +50 C Fahrenheit (oF)

• Application
• Stadiums, Billboards, Outdoor Events

• Brightness
• 5000 nits cd/m sq

• Conductor
• High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.

• Control Mode
• Synchronous/Asynchronous Control

• Display Function
• Other

• Display Type
• Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.

• Features
• High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.

• Frequency
• 3840 Hertz (HZ)

• Input Voltage
• AC 220V 10%, 50/60Hz Volt (V)

• LED Type
• SMD3535

• Material
• Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

• Operating Temperature
• Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF)

• Phase
• Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

• Pixels
• 8mm Pixel (P)

• Power Consumption
• Max 800W/m , Avg 300W/m Volt-Ampere-Reactive (var)

• Power Rating
• Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.

• Protection Level
• IP65

• Rated Current
• Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

• Rated Voltage
• Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

• Screen Dimension
• Customized

• Size
• Customizable

• Tube Chip Color
• Full Color

• Usage
• Outdoor Advertising

• Usage & Applications
• Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.

• View Angle
• Horizontal 140 , Vertical 120

• Warranty
• 2.Years

• Working Temperature
• -20 C to +60 C Fahrenheit (oF)

• Application
• Outdoor

• Brightness
• 5500-6000 cd/m cd/m sq

• Cable Type
• High-conductivity multi-strand copper power cables with heat-resistant FR insulation and shielded twisted-pair signal cables for stable outdoor operation.

• Control Mode
• Synchronous/Asynchronous Control

• Display Function
• Other

• Display Type
• Designed for large-format outdoor installations, delivering vivid visuals, wide viewing angles, and sunlight-readable performance with IP65-rated protection for all-weather operation.

• Features
• High-brightness P5 display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for smooth outdoor performance.

• Frequency
• 3840 Hertz (HZ)

• Input Voltage
• AC 220V 10%, 50/60 Hz Volt (V)

• LED Type
• SMD1921

• Material
• Heavy-duty powder-coated Mild Steel (MS) cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

• Operating Temperature
• 20 C to +60 C Fahrenheit (oF)

• Phase
• Operates on Single Phase (220V AC) for standard setups, with Three Phase (380 415V AC) recommended for large-scale installations.

• Pixels
• 5mm pixel pitch Pixel (P)

• Power Consumption
• Max 800 W/m , Avg 300 W/m Volt-Ampere (VA)

• Power Rating
• (Approx. 700 900 W/m max and 250 350 W/m average)

• Protection Level
• IP65

• Rated Voltage
• AC 220V 10%, 50Hz Volt (V)

• Screen Dimension

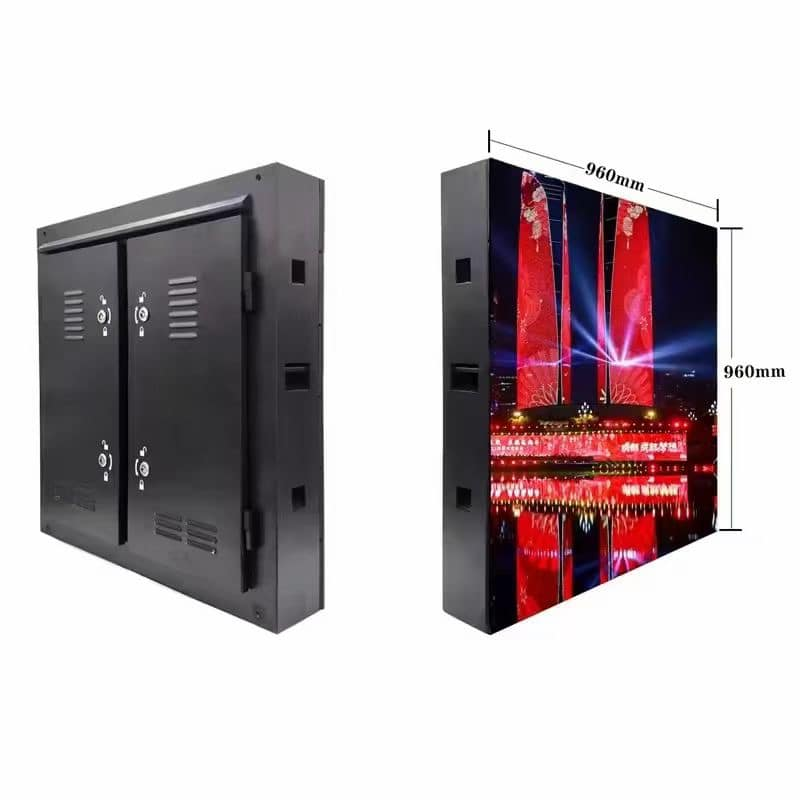

• 960 mm x 960 mm

• Size
• Customizable

• Tube Chip Color
• Full Color

• Usage
• Outdoor Advertising, Promotion Display

• Usage & Applications
• Designed for large-format outdoor installations, delivering vivid visuals, wide viewing angles, and sunlight-readable performance with IP65-rated protection for all-weather operation.

• View Angle
• Horizontal 140 , Vertical 120

• Warranty
• 2.years

• Working Temperature
• -20 C to +50 C Fahrenheit (oF)
