Outdoor LED Screen Mild Steel P5

4250.0 INR/Square Foot

Get a Price/Quote

Product Details:

Control Mode Synchronous/Asynchronous Control
Working Temperature -20 C to +50 C Fahrenheit (oF)
Size Customizable
Tube Chip Color Full Color
Brightness 5500-6000 cd/m cd/m sq
Input Voltage AC 220V 10%, 50/60 Hz Volt (V)
Pixels 5mm pixel pitch Pixel (P)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Outdoor LED Screen Mild Steel P5 Price And Quantity

Minimum Order Quantity 1 Piece Square Foot
Price 4250.0 INR/Square Foot

Outdoor LED Screen Mild Steel P5 Product Specifications

Brightness 5500-6000 cd/m cd/m sq
Rated Voltage AC 220V 10%, 50Hz Volt (V)
Tube Chip Color Full Color
Control Mode Synchronous/Asynchronous Control
Working Temperature -20 C to +50 C Fahrenheit (oF)
Size Customizable
Warranty 2.years
Display Function Other
Input Voltage AC 220V 10%, 50/60 Hz Volt (V)
Pixels 5mm pixel pitch Pixel (P)
Phase Operates on Single Phase (220V AC) for standard setups, with Three Phase (380 415V AC) recommended for large-scale installations.
Power Rating (Approx. 700 900 W/m max and 250 350 W/m average)
LED Type SMD1921
Cable Type High-conductivity multi-strand copper power cables with heat-resistant FR insulation and shielded twisted-pair signal cables for stable outdoor operation.
Protection Level IP65
Display Type Designed for large-format outdoor installations, delivering vivid visuals, wide viewing angles, and sunlight-readable performance with IP65-rated protection for all-weather operation.
Usage Outdoor Advertising, Promotion Display
Usage & Applications Designed for large-format outdoor installations, delivering vivid visuals, wide viewing angles, and sunlight-readable performance with IP65-rated protection for all-weather operation.
Operating Temperature 20 C to +60 C Fahrenheit (oF)
View Angle Horizontal 140 , Vertical 120
Frequency 3840 Hertz (HZ)
Features High-brightness P5 display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for smooth outdoor performance.
Power Consumption Max 800 W/m , Avg 300 W/m Volt-Ampere (VA)
Screen Dimension 960 mm x 960 mm
Material Heavy-duty powder-coated Mild Steel (MS) cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.
Application Outdoor

Cabinet Weight 28 kg
Refresh Rate 1920 Hz
Grey Scale 14 bit
Operating Humidity 10% - 90% RH
Maintenance Mode Front/Rear Service
Panel Material Mild Steel
Installation Type Wall Mounting/Steel Structure
Pixel Density 40,000 dots/m
Life Span 100,000 hours

Outdoor LED Screen Mild Steel P5 Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

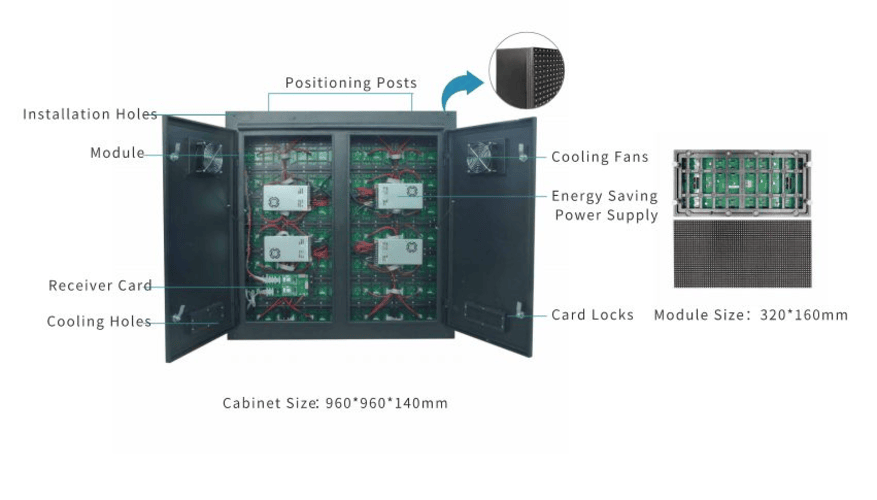

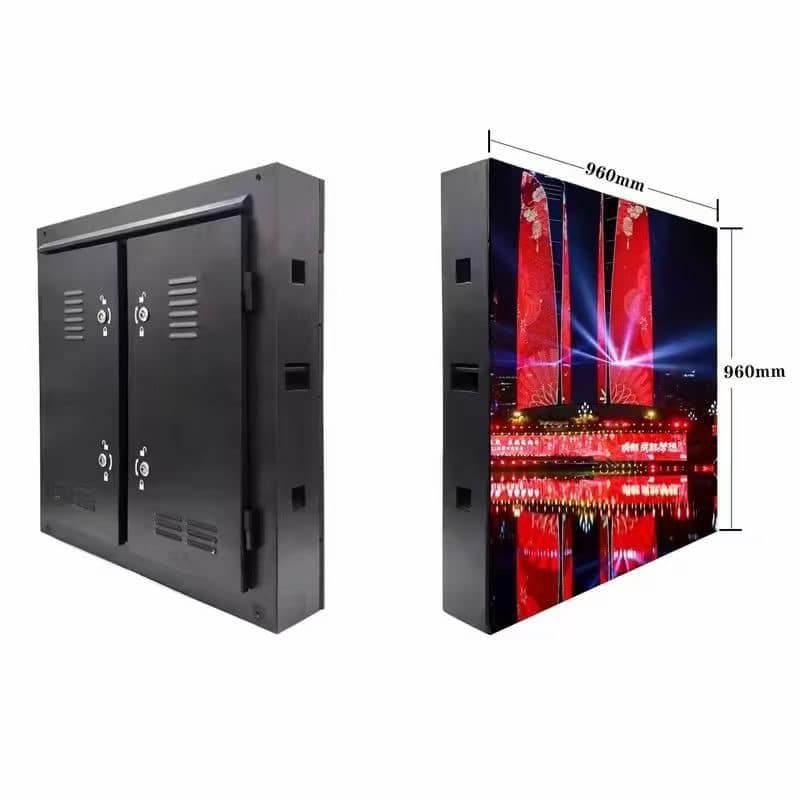

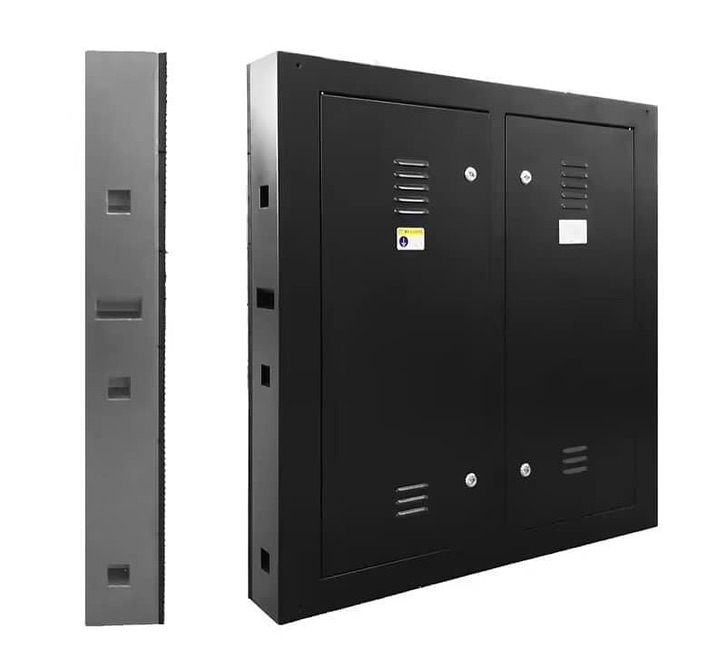

P5 Outdoor LED Display with Lampro Modules + MS Cabinets 960960 mm

Product Overview

The P5 Outdoor LED Display with Lampro Modules integrated into robust 960960 mm MS (Mild Steel) Cabinets is designed for high-impact outdoor advertising and public information displays. With a 5 mm pixel pitch, this display ensures excellent visibility from medium to long viewing distances, delivering bright, vibrant visuals even under direct sunlight.

Key Features

5 mm Pixel Pitch Ideal for medium & long-distance outdoor viewing
High Brightness Output Sunlight-readable display performance
960960 mm MS Cabinets Heavy-duty, powder-coated mild steel structure
IP65 Rated Protection Weatherproof against rain, dust & humidity
High Refresh Rate (3840 Hz) Smooth, flicker-free video playback
Wide Viewing Angle (140) Clear visibility from multiple directions
Front/Rear Serviceable Design Easy maintenance & module replacement
Energy Efficient SMPS Power System Stable and optimized power distribution

Technical Highlights

Specification	Details
Pixel Pitch	5 mm
Cabinet Size	960 960 mm
LED Type	Outdoor High-Brightness SMD
Brightness	55006500 nits
Refresh Rate	3840 Hz
Ingress Protection	IP65 (Front)
Operating Temperature	20C to +60C
Input Voltage	AC 220V 10%, 50Hz
Power Consumption	Approx. 700900 W/m (Max)

Applications

Outdoor Advertising Billboards
Highway & Roadside Displays
Stadium & Sports Arena Screens
Mall & Retail Facade Displays
Public Information & Government Projects
Events & Rental Installations
