Outdoor LED Screen Mild Steel P4

4750.0 INR/Square Foot

Get a Price/Quote

Product Details:

Screen Dimension Customized as per requirement
Input Voltage AC 110V/220V, 50-60Hz Volt (V)
View Angle Horizontal 140 , Vertical 120
Power Consumption 600W/sqm (max), 200W/sqm (avg) Volt-Ampere (VA)
Size Customized
Application Advertising, Event Display, Rental, Stadium
Pixels P4 (4mm pixel pitch) Pixel (P)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Outdoor LED Screen Mild Steel P4 Price And Quantity

Price 4750.0 INR/Square Foot
Minimum Order Quantity 1 sqm Square Foot

Outdoor LED Screen Mild Steel P4 Product Specifications

Conductor High-conductivity Copper (Cu) wiring
Pixels P4 (4mm pixel pitch) Pixel (P)
Brightness 5500 nits cd/m sq
Application Advertising, Event Display, Rental, Stadium
Phase Operates on Single Phase (220V AC) for standard setups, with Three Phase (380 415V AC) recommended for large-scale installations.
Display Type Full-Color RGB SMD Outdoor LED Display (High-Brightness, Weatherproof Type)
Size Customized
View Angle Horizontal 140 , Vertical 120
Power Consumption 600W/sqm (max), 200W/sqm (avg) Volt-Ampere (VA)
Screen Dimension Customized as per requirement
Input Voltage AC 110V/220V, 50-60Hz Volt (V)
Power Rating Maximum Power Consumption: 800 900 W per cabinet Average Power Consumption: 250 350 W per cabinet
Tube Chip Color Other
Operating Temperature 20 C to +60 C Fahrenheit (oF)
LED Type SMD1921
Features High-brightness P4 display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for smooth outdoor performance.
Warranty 2.Years
Working Temperature -20 C to +50 C Fahrenheit (oF)
Rated Voltage AC 220V 10%, 50Hz Volt (V)
Cable Type High-conductivity multi-strand copper power cables with heat-resistant FR insulation and shielded twisted-pair signal cables for stable outdoor operation.
Usage Outdoor
Protection Level IP65
Control Mode Synchronization with PC via Network, USB, or Wi-Fi
Material Heavy-duty powder-coated Mild Steel (MS) cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.
Usage & Applications Outdoor Advertising Billboards Retail Facade Displays Stadium & Arena Signage Transportation Hubs (Bus/Train Stations) Public Information Displays Event & Exhibition Screens
Display Function Other
Frequency 3840 Hertz (HZ)

Operating Humidity 10% - 90% RH
Contrast Ratio 4000:1
Weight 42 kg/sqm (Cabinet)
Maintenance Front & Rear Service
Installation Type Fixed / Rental (Hanging, Stacking)
Refresh Rate 1920 Hz
Cabinet Material Mild Steel
Module Size 320mm x 160mm
Lifetime 100,000 hours
Gray Scale 14-16 bit

Outdoor LED Screen Mild Steel P4 Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

P4 Outdoor LED Display with Lampro Modules + MS Cabinets 960960 mm

Overview
The P4 Outdoor LED Display with Lampro Modules mounted in MS (Mild Steel) Cabinets 960960 mm is a high-performance outdoor signage solution delivering bright, resilient visuals for digital billboards, stadium displays, retail facades, and public information screens. Combining rugged outdoor-grade LEDs with robust MS cabinets, this system is engineered for long-lasting performance in challenging weather conditions.

Key Features

P4 Pixel Pitch Outdoor Visibility

Fine 4 mm pixel pitch delivers crisp, clear visuals optimized for outdoor viewing distances (ideal for street-facing signage and public venues).
Smooth video playback and high contrast ensure engaging content display.

High Brightness for Daylight Clarity

Ultra-high brightness output ensures excellent readability even under direct sunlight perfect for outdoor advertising and promotional content.

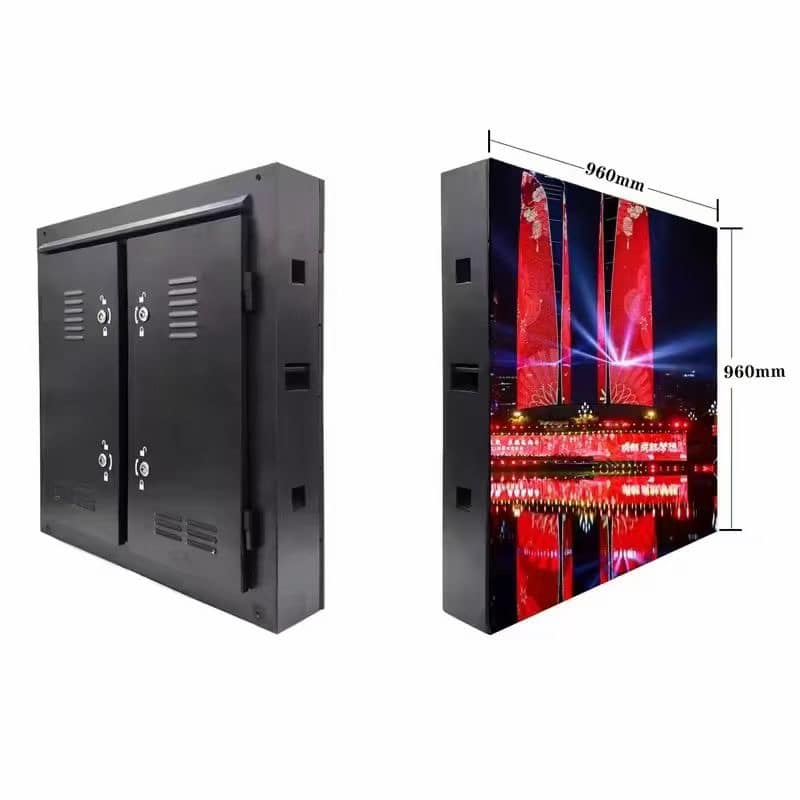

Durable MS Cabinets (960960 mm)

Heavy-duty Mild Steel (MS) Cabinets provide robust structural strength and long-term stability.
Precision-built 960960 mm modules allow flexible screen configurations with seamless alignment.
Cabinets are powder-coated and corrosion-resistant for enhanced outdoor endurance.

Weatherproof & Reliable Construction

Outdoor-rated with strong IP65 waterproof protection, shielding against rain, dust, and humidity.
UV-resistant materials prevent color fading and structural degradation.

High Refresh & Stable Performance

Advanced LED driving technology delivers a high refresh rate and stable performance ideal for live video, dynamic advertising, and motion-rich content.

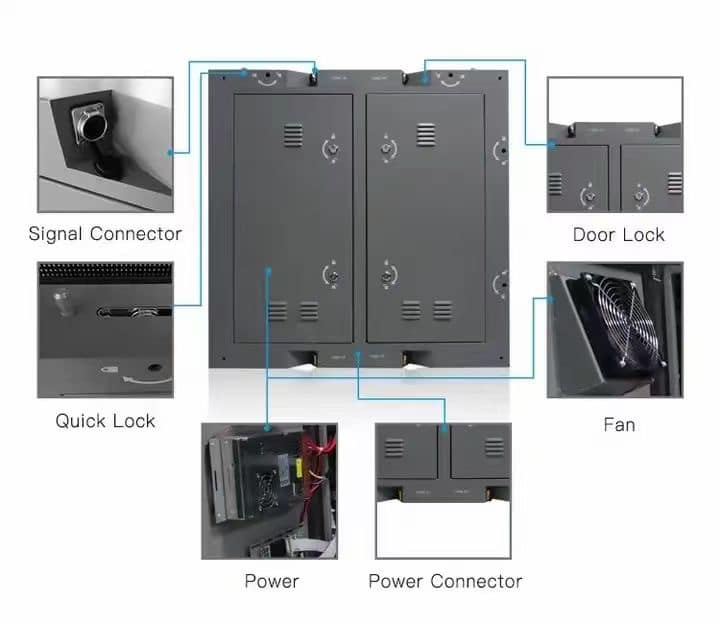

Service-Friendly Design

Front and rear service options available for easy maintenance.
Modular components allow rapid replacement of individual parts, minimizing downtime.

Efficient & Energy-Conscious Operation

Optimized power distribution and thermal management ensure lower power consumption and stable performance.

Wide Viewing Angles & Uniformity

Broad horizontal and vertical viewing angles deliver consistent visuals from multiple perspectives.
Uniform brightness and color across the entire display surface.

Typical Outdoor Applications

Outdoor Advertising Billboards
Retail Facade Displays
Stadium & Arena Signage
Transportation Hubs (Bus/Train Stations)
Public Information Displays
Event & Exhibition Screens
