Outdoor Led Video Display

• Application
• Outdoor

• Brightness
• 5000 cd/m sq

• Cable Type
• Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.

• Conductor
• High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.

• Control Mode
• Media Player Novastar

• Control System
• Novastart Media Player

• Display Function
• Digital

• Display Type
• Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.

• Features
• High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.

• Frequency
• 3840 Hertz (HZ)

• LED Type
• SMD

• Material
• Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

• Operating Temperature
• Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF)

• Phase
• Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

• Pixel Pitch
• P6

• Pixels
• P5 Pixel (P)

• Power Rating
• Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.

• Protection Level
• IP65

• Rated Current
• Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

• Rated Voltage
• Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

• Screen Dimension
• 960X960X110mm

• Size
• Customized

• Tube Chip Color
• Full Color

• Usage
• Outdoor

• Usage & Applications
• Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.

• Warranty
• 2.years

• Weight
• 35 Kilograms (kg)

• Application Areas
• Shopping Malls, Airports, Outdoor Billboards, Stadiums

• Cable Type
• Heavy-duty FR/FRLS copper power cable with high-speed data ribbon (flat) cable for stable signal transmission and safe outdoor operation.

• Conductor
• High-quality copper conductor cables for stable power transmission and safe outdoor operation.

• Contrast Ratio
• 4000:1

• Control System
• Novastar

• Display Type
• Outdoor SMD Full Color LED Digital Billboard Display.

• Features
• Weatherproof, High Brightness, Energy Efficient

• Frequency
• 3840 Hertz (HZ)

• Installation Type
• Wall-Mounted, Pole-Mounted, Hanging

• LED Type
• SMD2727

• Material
• Aluminum Alloy Cabinet

• Operating Temperature
• -10 C to +60 C Fahrenheit (oF)

• Panel Size
• 960mm x 960mm

• Phase
• Single Phase (AC supply compatible with standard commercial power connections).

• Pixel Pitch
• P8 (8mm)

• Power Rating
• Maximum: ~800W/sqm | Average: ~250 300W/sqm (energy-efficient outdoor operation).

• Rated Current
• Approximately 3 4 Amps per sqm (average load) and up to 8 10 Amps per sqm (maximum load) at 230V AC, depending on brightness and content. Volt (v)

• Rated Voltage
• AC 110V 240V, 50/60Hz (Single Phase). Volt (V)

• Usage
• Outdoor Advertising, Stadiums, Events

• Usage & Applications
• Suitable for outdoor digital billboards, highway advertising, commercial building facades, malls, and public information displays.

• View Angle
• Horizontal 140 / Vertical 120

• Warranty
• 2.years

• Weight
• 40 Kilograms (kg)

• Application Areas
• Stadiums, Outdoor Events, Shopping Malls, Advertising Billboards

• Contrast Ratio
• 5000:1

• Control System
• Novastar

• Display Type
• Outdoor Fixed LED Video Wall Display

• Features

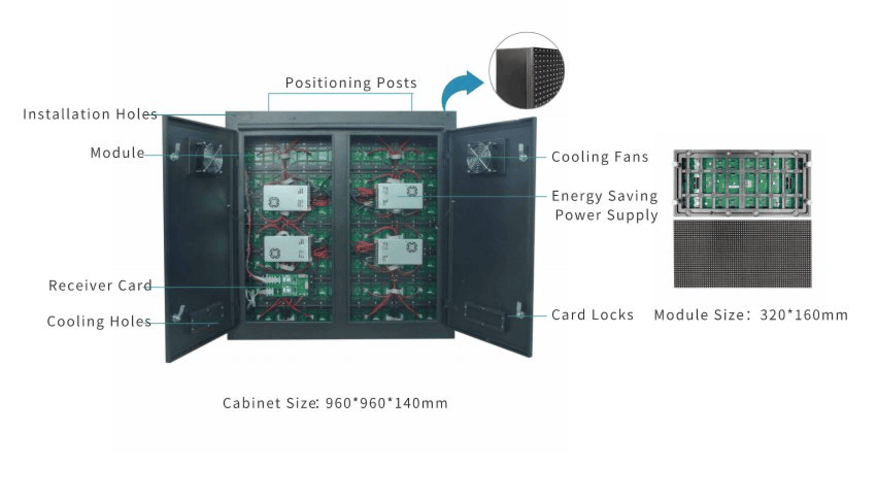

• Rugged P4 outdoor LED display with heavy-duty MS cabinet and 320 160 SMD modules for bright, seamless, all-weather performance.

• Frequency
• 3840 Hertz (HZ)

• Installation Type
• Fixed

• LED Type
• SMD2727

• Material
• MS Cabinets

• Operating Temperature
• 20 C to +50 C Rankine

• Panel Size
• 960 mm x 960 mm

• Pixel Pitch
• 4 mm

• Power Consumption
• Max. 800W per sqm; Avg. 270W per sqm Decibel-milliwatt (dBm)

• Usage
• deal for outdoor advertising, building fa ades, mall branding, and high-visibility public display applications.

• Usage & Applications
• Perfect for outdoor advertising billboards, shopping mall signage, building facades, public display boards, stadium screens, and transportation hubs.

• View Angle
• 140 Horizontal / 120 Vertical

• Voltage
• AC 110V / 220V, 50-60Hz Statampere (sA)

• Warranty
• 2.Years

• Weight
• 30 kg per panel (approx.) Kilograms (kg)

• Application Areas
• Stadiums, Shopping Malls, Billboards, Event Venues

• Contrast Ratio
• 4000:1

• Control System
• NovaStar / Linsn / Colorlight

• Features
• Weatherproof, High Brightness, Energy Efficient, Seamless Display

• Installation Type
• Fixed / Rental

• LED Type
• SMD 3-in-1

• Material
• Aluminum Cabinet / Die-cast Aluminum

• Panel Size
• 960 mm 960 mm (customizable)

• Pixel Pitch
• P6 / P8 / P10 mm (options available)

• Power Consumption
• Max 900 W/m , Avg 350 W/m Kilovolt-amp (kVA)

• Usage
• Outdoor Advertisement, Live Events, Public Displays

• View Angle
• Horizontal 140 , Vertical 120

• Voltage
• AC 110~240V, 50/60Hz Volt (v)

• Weight
• 40 kg per panel (vary by configuration) Kilograms (kg)

• Application Areas
• Outdoor public areas, Stadiums, Events, Shopping Malls, Billboards

• Cable Type
• Heavy-duty PVC insulated copper power cable with shielded CAT6/CAT6A data cable for stable outdoor signal transmission.

• Conductor
• High-conductivity copper power and signal wiring with weather-resistant insulated connectors for stable outdoor operation.

• Contrast Ratio
• 3000:1

• Control System
• NovaStar

• Display Type
• Outdoor Fixed Installation, Full-Color SMD (RGB) LED Display with MS (Mild Steel) Cabinet.

• Features
• Weatherproof, High Brightness, Energy Efficient, Long Lifespan

• Frequency
• 3840 Hertz (HZ)

• Installation Type
• Fixed and Rental (Available in both options)

• LED Type
• SMD 3535

• Material
• MS Cabinet

• Operating Temperature
• -20 C to +60 C, designed for reliable outdoor performance in extreme heat, rain, dust, and humidity conditions. Celsius (oC)

• Panel Size
• 960X960X110mm

• Phase
• Single Phase (AC 110V 240V, 50/60Hz); Three Phase recommended for large-scale outdoor screen installations.

• Pixel Pitch
• 6 mm

• Power Consumption
• Max 650W/m , Avg 220W/m Kilovolt-amp (kVA)

• Power Rating
• Max 750 850W per cabinet | Average 250 320W per cabinet (P6 Outdoor 960 960 MS Cabinet).

• Rated Current
• Approx. 3.5 4.0 Amps per cabinet (at 220V, Max Load) for P6 Outdoor 960 960 MS Cabinet. Volt (v)

• Rated Voltage
• AC 110V 240V, 50/60Hz (Suitable for standard outdoor power supply conditions). Volt (V)

• Usage
• Suitable for outdoor advertising hoardings, roadside LED screens, commercial facades, and public information displays.

• Usage & Applications
• Ideal for outdoor billboards, roadside displays, building facades, and commercial advertising requiring bright and weather-resistant performance.

• View Angle
• Horizontal 140 , Vertical 120

• Voltage
• AC 220 V / 50 Hz Volt (v)

• Warranty
• 2.Years

• Weight
• 30 kg per panel Kilograms (kg)

• Application Areas
• uitable for highways, outdoor advertising hoardings, commercial building facades, malls, stadiums, and public information display areas.

• Cable Type
• Heavy-duty FR/FRLS copper power cable with high-speed data ribbon (flat) cable for stable signal transmission and safe outdoor operation.

• Conductor
• High-quality copper conductor cables for stable power transmission and safe outdoor operation.

• Contrast Ratio
• 5000:1 (High contrast for sharp image clarity and better visibility in outdoor lighting conditions).

• Control System
• Novastar

• Display Type
• Outdoor SMD Full Color LED Digital Billboard Display.

• Features
• High-brightness, IP65-rated outdoor LED display with robust MS cabinet construction and seamless modular performance for reliable long-term use.

• Frequency
• 3840 Hertz (HZ)

• Installation Type
• Fixed outdoor installation suitable for wall-mounted, pole-mounted, rooftop, and structural frame installations.

• LED Type
• High-brightness Outdoor SMD (Surface Mounted Device) Full Color LED.

• Material
• Heavy-duty powder-coated Mild Steel (MS) cabinet with weatherproof SMD LED modules and corrosion-resistant hardware for outdoor durability.

• Operating Temperature
• -10 C to +60 C Celsius (oC)

• Panel Size
• 960X960X110mm

• Phase
• Single phase for small screens; three phase recommended for large outdoor LED displays.

• Pixel Pitch
• P6

• Power Consumption
• Maximum: ~800W/sqm | Average: ~250 300W/sqm (depending on brightness and content). Volt (V)

• Power Rating
• Maximum: ~800W/sqm | Average: ~250 300W/sqm

• Rated Current
• Approximately 3 4 Amps per sqm (average load) and up to 8 10 Amps per sqm (maximum load) at 230V AC, depending on brightness and content. Volt (v)

• Rated Voltage
• AC 110V 240V, 50/60Hz (Single Phase). Volt (V)

• Usage
• Used for outdoor advertising billboards, highway hoardings, commercial building displays, stadium screens, and public information signage.

• Usage & Applications
• Suitable for outdoor digital billboards, highway advertising, commercial building facades, malls, and public information displays.

• Voltage
• AC 110V 240V, 50/60Hz (compatible with standard commercial power supply). Volt (v)

• Warranty
• 2.Years

• Weight
• 30 Kilograms (kg)
