Digital Outdoor Billboard

4000.0 INR/Square Foot

Get a Price/Quote

Product Details:

Usage Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.
Weight 35 Kilograms (kg)
Pixel Pitch P6
Warranty 2.years
Control System Novastart Media Player
Power Rating Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.
Rated Voltage Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Digital Outdoor Billboard Price And Quantity

Minimum Order Quantity 30 Square Foot
Price 4000.0 INR/Square Foot

Digital Outdoor Billboard Product Specifications

Display Type Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.
Frequency 3840 Hertz (HZ)
Usage Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.
Rated Current Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)
Features High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.
Weight 35 Kilograms (kg)
Rated Voltage Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)
Power Rating Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.
Phase Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.
Pixel Pitch P6
Material Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.
Cable Type Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.
Usage & Applications Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.
Warranty 2.years
Conductor High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.
Control System Novastart Media Player
Operating Temperature Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF)

Digital Outdoor Billboard Trade Information

FOB Port Bangalore
Supply Ability 1000 Square Foot Per Day
Delivery Time 10 Days

Product Description

P5 Outdoor LED Display

Product Description

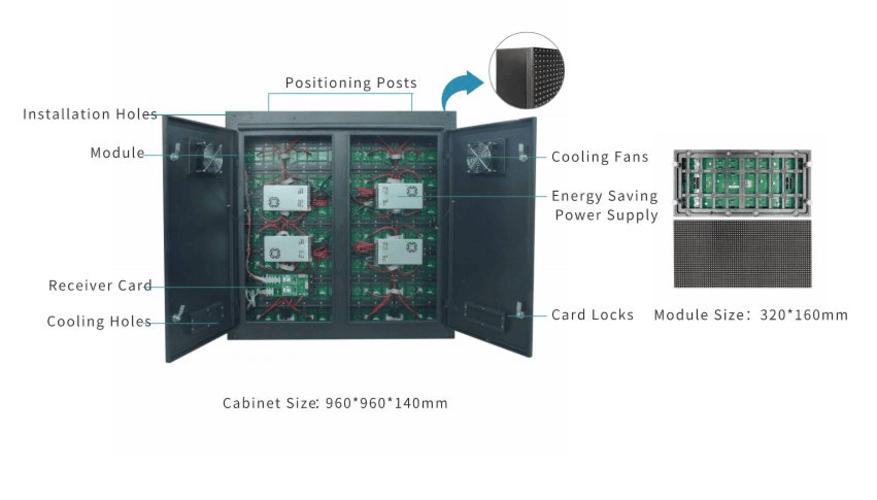

P5 Outdoor LED Display with 960960mm MS Cabinets and Lampro 320160mm modules is a high-resolution outdoor digital display solution designed for medium to long-distance viewing. The sturdy mild steel cabinet structure ensures durability, weather resistance, and stable performance in harsh outdoor environments, making it ideal for premium outdoor advertising and branding.

Technical Specifications

Pixel Pitch: P5 (5mm)
Module Size: 320160mm (Lampro Series)
Cabinet Size: 960960mm
Cabinet Material: Mild Steel (Powder Coated)
Brightness: 60006500 nits
Viewing Distance: 5 meters & above
Refresh Rate: 1920Hz / 3840Hz (optional)
IP Rating: IP65 (Front) / IP54 (Rear)
Display Type: Outdoor SMD Full Color LED Display
Operation Temperature: -10C to +60C
Rated Voltage: AC 110V240V
Power Consumption:
- Max: 850W/sqm
- Average: 280320W/sqm
Phase: Single Phase

Key Features (1-Line Highlights)

High brightness for clear daylight visibility
Strong MS cabinet for long outdoor durability
Seamless 960960 modular structure
Weatherproof & dust-resistant design

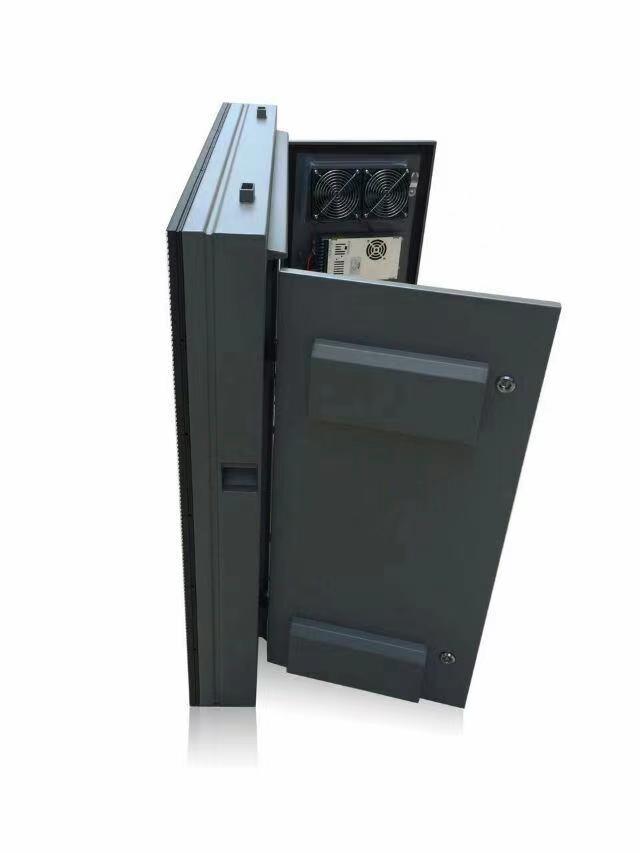

Easy front & rear service access
Energy-efficient performance

Usage & Applications (1 Line)

Perfect for outdoor billboards, building facades, stadium screens, malls, and high-traffic commercial areas.
