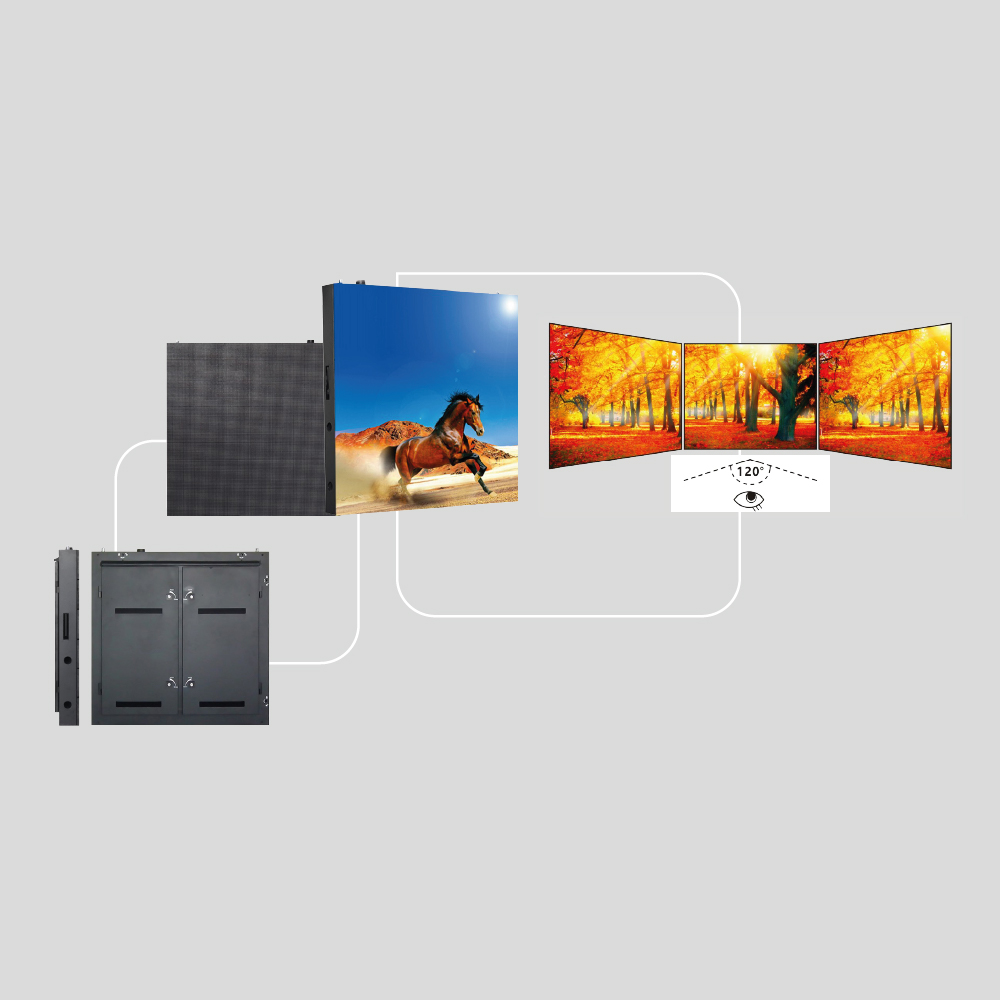

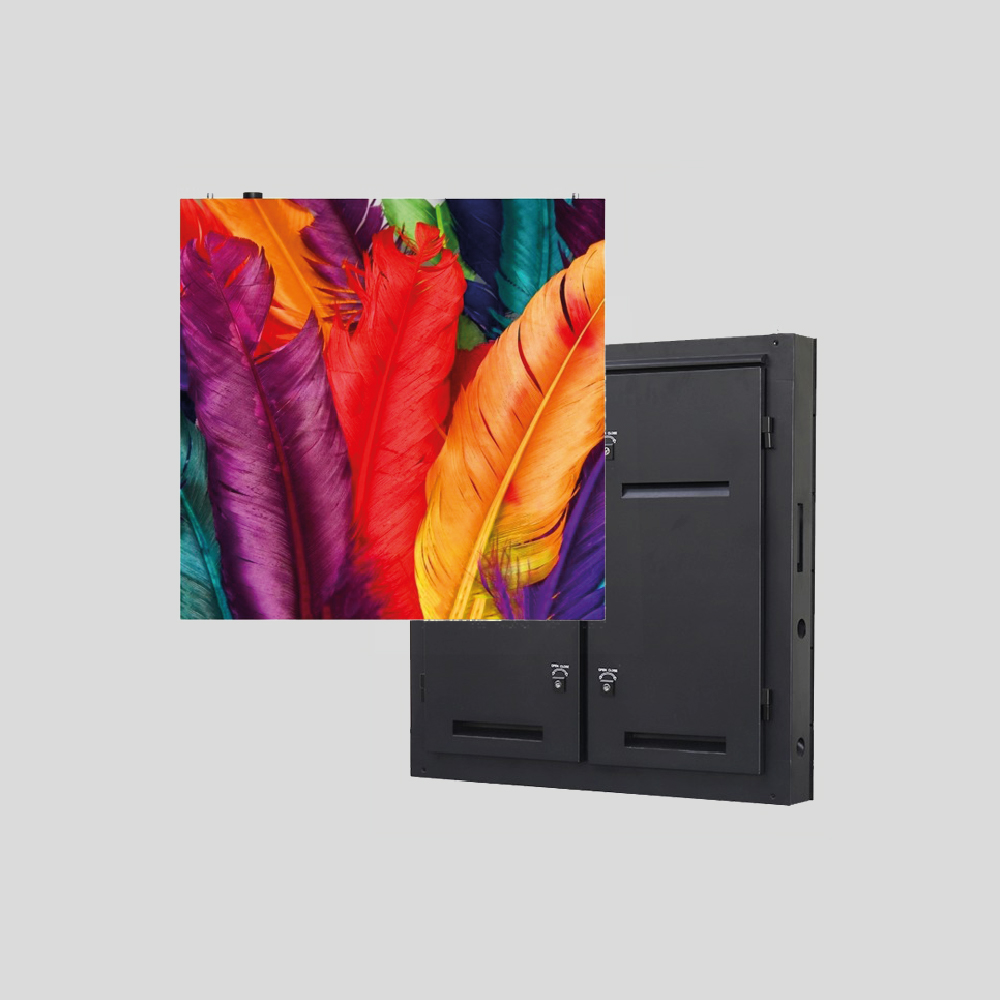

P6 Outdoor LED Video Display

3750.0 INR/Square Feet

Get a Price/Quote

Product Details:

Pixel Pitch 6 mm
LED Type SMD 3535
Contrast Ratio 3000:1
Usage Suitable for outdoor advertising hoardings, roadside LED screens, commercial facades, and public information displays.
Application Areas Outdoor public areas, Stadiums, Events, Shopping Malls, Billboards
View Angle Horizontal 140 , Vertical 120
Voltage AC 220 V / 50 Hz Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

P6 Outdoor LED Video Display Price And Quantity

Minimum Order Quantity 30 Square Foot
Price 3750.0 INR/Square Feet

P6 Outdoor LED Video Display Product Specifications

Features Weatherproof, High Brightness, Energy Efficient, Long Lifespan
Weight 30 kg per panel Kilograms (kg)
Installation Type Fixed and Rental (Available in both options)
Warranty 2.Years
Conductor High-conductivity copper power and signal wiring with weather-resistant insulated connectors for stable outdoor operation.
Display Type Outdoor Fixed Installation, Full-Color SMD (RGB) LED Display with MS (Mild Steel) Cabinet.
Frequency 3840 Hertz (HZ)
Panel Size 960X960X110mm
Power Rating Max 750 850W per cabinet | Average 250 320W per cabinet (P6 Outdoor 960 960 MS Cabinet).
Cable Type Heavy-duty PVC insulated copper power cable with shielded CAT6/CAT6A data cable for stable outdoor signal transmission.
Power Consumption Max 650W/m , Avg 220W/m Kilovolt-amp (kVA)
Control System NovaStar
LED Type SMD 3535
Pixel Pitch 6 mm
Operating Temperature -20 C to +60 C, designed for reliable outdoor performance in extreme heat, rain, dust, and humidity conditions. Celsius (oC)
Contrast Ratio 3000:1
Application Areas Outdoor public areas, Stadiums, Events, Shopping Malls, Billboards
Phase Single Phase (AC 110V 240V, 50/60Hz); Three Phase recommended for large-scale outdoor screen installations.
Usage Suitable for outdoor advertising hoardings, roadside LED screens, commercial facades, and public information displays.
Rated Current Approx. 3.5 4.0 Amps per cabinet (at 220V, Max Load) for P6 Outdoor 960 960 MS Cabinet. Volt (v)
View Angle Horizontal 140 , Vertical 120
Rated Voltage AC 110V 240V, 50/60Hz (Suitable for standard outdoor power supply conditions). Volt (V)
Usage & Applications Ideal for outdoor billboards, roadside displays, building facades, and commercial advertising requiring bright and weather-resistant performance.
Material MS Cabinet
Voltage AC 220 V / 50 Hz Volt (v)

Ingress Protection IP65 (Front) / IP54 (Rear)
Brightness 6500 cd/m
Cabinet Material Die-casting Aluminum
Service Access Front and Rear Maintenance Available
Color Temperature 6500K 500K (adjustable)
Signal Input HDMI, DVI, VGA, SDI, USB
Refresh Rate 1920 Hz / 3840 Hz (optional)
Operating Humidity 10% - 95% RH (non-condensing)
Cabinet Resolution 96 96 dots
Module Resolution 96 96 pixels
Life Span 100,000 Hours
Gray Scale 16 bit
Operating Temperature -20C to +60C

P6 Outdoor LED Video Display Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 8 Days
Main Domestic Market All India

Product Description

P6 Outdoor LED Display 960960 MS Cabinets with 192192 Lampro Modules (Customizable)

Product Features

Customizable Cabinet Design: Cabinets can be tailor-made in size, shape, color, and mounting options to suit specific project requirements (e.g., curved walls, special structures).

Pixel Pitch: 6mm Excellent for clear viewing at medium to long outdoor distances.

Cabinet Size: 960mm 960mm (Standard) Strong, stable MS (Mild Steel) cabinet with precision fabrication.

Module Size: 192mm 192mm Lampro Outdoor Modules High-quality LED modules for superior brightness and color uniformity.

Cabinet Material: MS (Mild Steel) with Anti-Rust & Weatherproof Coating Durable and cost-effective for outdoor environments.

High Brightness: Delivers bright visuals suitable for direct sunlight readability (typically 5,0006,500 nits).

Weatherproof Design: Engineered for outdoor use in rain, dust, humidity, and heat.

Wide Viewing Angle: Clear display visibility from multiple directions and large span coverage.

Reliable Heat Dissipation: Cabinet design ensures stable operating temperature and extended lifespan.

Stable Signal Performance: Ensures synchronized, flicker-free display with smooth video playback.

Flexible Maintenance Options: Front and/or rear access for servicing based on installation requirements.

Energy Efficient: Optimized power use with reliable electrical performance.

Typical Applications

Outdoor Advertising Billboards & Hoardings

Roadside & Highway LED Screens

Commercial Building Facades

Stadium Perimeter Displays

Public Information Signage

Retail & Urban Outdoor Installations
