Digital Outdoor Billboard

3400.0 INR/Square Foot

Get a Price/Quote

Product Details:

Panel Size 960mm x 960mm
Material Aluminum Alloy Cabinet
View Angle Horizontal 140 / Vertical 120
Features Weatherproof, High Brightness, Energy Efficient
Installation Type Wall-Mounted, Pole-Mounted, Hanging
Control System Novastar
LED Type SMD2727
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Digital Outdoor Billboard Price And Quantity

Minimum Order Quantity 30 Square Foot
Price 3400.0 INR/Square Foot

Digital Outdoor Billboard Product Specifications

Usage Outdoor Advertising, Stadiums, Events
Warranty 2.years
Contrast Ratio 4000:1
Usage & Applications Suitable for outdoor digital billboards, highway advertising, commercial building facades, malls, and public information displays.
Power Rating Maximum: ~800W/sqm | Average: ~250 300W/sqm (energy-efficient outdoor operation).
Pixel Pitch P8 (8mm)
Weight 40 Kilograms (kg)
Cable Type Heavy-duty FR/FRLS copper power cable with high-speed data ribbon (flat) cable for stable signal transmission and safe outdoor operation.
Rated Current Approximately 3 4 Amps per sqm (average load) and up to 8 10 Amps per sqm (maximum load) at 230V AC, depending on brightness and content. Volt (v)
Operating Temperature -10 C to +60 C Fahrenheit (oF)
Application Areas Shopping Malls, Airports, Outdoor Billboards, Stadiums
Features Weatherproof, High Brightness, Energy Efficient
Material Aluminum Alloy Cabinet
Rated Voltage AC 110V 240V, 50/60Hz (Single Phase). Volt (V)
View Angle Horizontal 140 / Vertical 120
Frequency 3840 Hertz (HZ)
Panel Size 960mm x 960mm
Conductor High-quality copper conductor cables for stable power transmission and safe outdoor operation.
Phase Single Phase (AC supply compatible with standard commercial power connections).
LED Type SMD2727
Control System Novastar
Installation Type Wall-Mounted, Pole-Mounted, Hanging
Display Type Outdoor SMD Full Color LED Digital Billboard Display.

Color Processing 16.7 Million Colors
Ingress Protection IP65 (Front) / IP54 (Rear)
Cabinet Maintenance Front and Rear Service
Frame Frequency 60Hz
Input Signal HDMI, DVI, VGA, SDI, USB
System Support Windows, Android
Gray Scale 14-16 bit
Module Resolution 160 x 160 dots
Refresh Rate 1920Hz 3840Hz
Cabinet Resolution 160 x 160 dots
Lifespan 100,000 hours
Operating Temperature -20C to +50C

Digital Outdoor Billboard Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

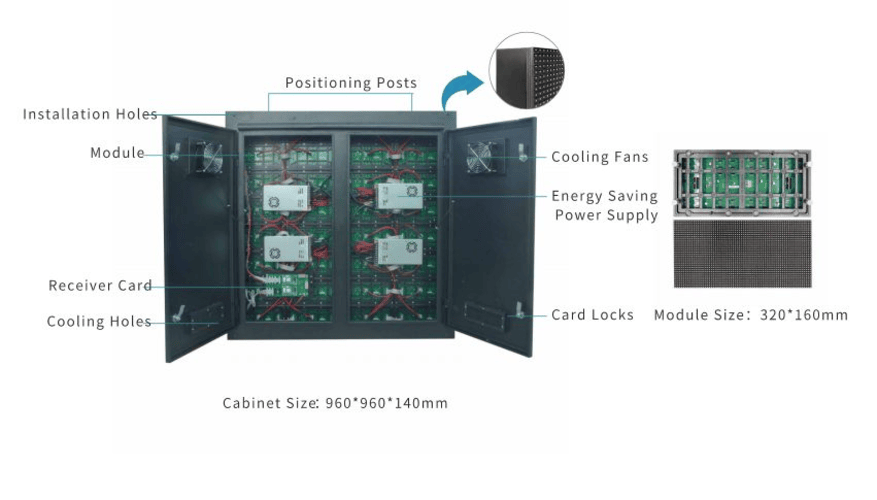

P8 Outdoor LED Display MS Cabinet 960960mm with Lampro Modules (320160mm)

Product Description

P8 Outdoor LED Display with 960960mm MS Cabinets and Lampro 320160mm modules is a robust and high-brightness outdoor video wall solution designed for long-distance viewing. Built with a durable mild steel cabinet structure, it ensures strong weather resistance and stable performance in challenging outdoor conditions. Ideal for advertising, public displays, and large venue installations.

Technical Specifications

Pixel Pitch: P8 (8mm)
Module Size: 320160mm (Lampro Series)
Cabinet Size: 960960mm (MS Cabinet)
Cabinet Material: Mild Steel (Powder Coated)
Brightness: 55006500 nits
Viewing Distance: 8 meters & above
Refresh Rate: 1920Hz / 3840Hz (optional)
IP Rating: IP65 (Front) / IP54 (Rear)
Display Type: Outdoor SMD Full Color LED Display
Operation Temperature: -10C to +60C
Rated Voltage: AC 110V240V
Power Consumption:
- Max: 800W/sqm
- Average: 250300W/sqm
Phase: Single Phase

Key Features (Short Highlights)

High brightness for direct sunlight visibility
Strong MS cabinet for heavy-duty outdoor use
Seamless 960960 standard cabinet structure
Weatherproof & dustproof design
Easy front & rear maintenance
Energy-efficient power supply system

Applications

Highway & Roadside Billboards Large-format outdoor advertising for maximum long-distance visibility.
Stadiums & Sports Grounds Live match display, scoreboards, and sponsor promotions.
Commercial Building Facades Brand promotions and digital signage.
Shopping Malls & Multiplex Exteriors Promotional campaigns and event displays.
Public Spaces & City Squares Government announcements and public awareness campaigns.
Industrial & Corporate Premises Company branding and information display.
