Digital Outdoor Billboard

4750.0 INR/Square Foot

Get a Price/Quote

Product Details:

Pixel Pitch 4 mm
Application Areas Stadiums, Outdoor Events, Shopping Malls, Advertising Billboards
Installation Type Fixed
Warranty 2.Years
Power Consumption Max. 800W per sqm; Avg. 270W per sqm Decibel-milliwatt (dBm)
Usage deal for outdoor advertising, building fa ades, mall branding, and high-visibility public display applications.
Weight 30 kg per panel (approx.) Kilograms (kg)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Digital Outdoor Billboard Price And Quantity

Price 4750.0 INR/Square Foot
Minimum Order Quantity 30 Square Foot

Digital Outdoor Billboard Product Specifications

Power Consumption Max. 800W per sqm; Avg. 270W per sqm Decibel-milliwatt (dBm)
Usage deal for outdoor advertising, building fa ades, mall branding, and high-visibility public display applications.
Weight 30 kg per panel (approx.) Kilograms (kg)
Contrast Ratio 5000:1
Pixel Pitch 4 mm
Frequency 3840 Hertz (HZ)
Display Type Outdoor Fixed LED Video Wall Display
Application Areas Stadiums, Outdoor Events, Shopping Malls, Advertising Billboards
Warranty 2.Years
Usage & Applications Perfect for outdoor advertising billboards, shopping mall signage, building facades, public display boards, stadium screens, and transportation hubs.
Installation Type Fixed
Operating Temperature 20 C to +50 C Rankine
LED Type SMD2727

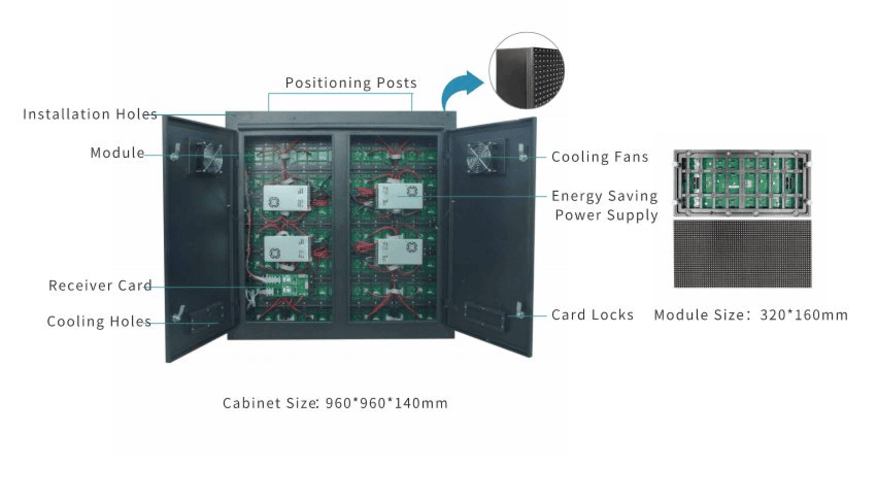

Features Rugged P4 outdoor LED display with heavy-duty MS cabinet and 320 160 SMD modules for bright, seamless, all-weather performance.
Panel Size 960 mm x 960 mm
Material MS Cabinets

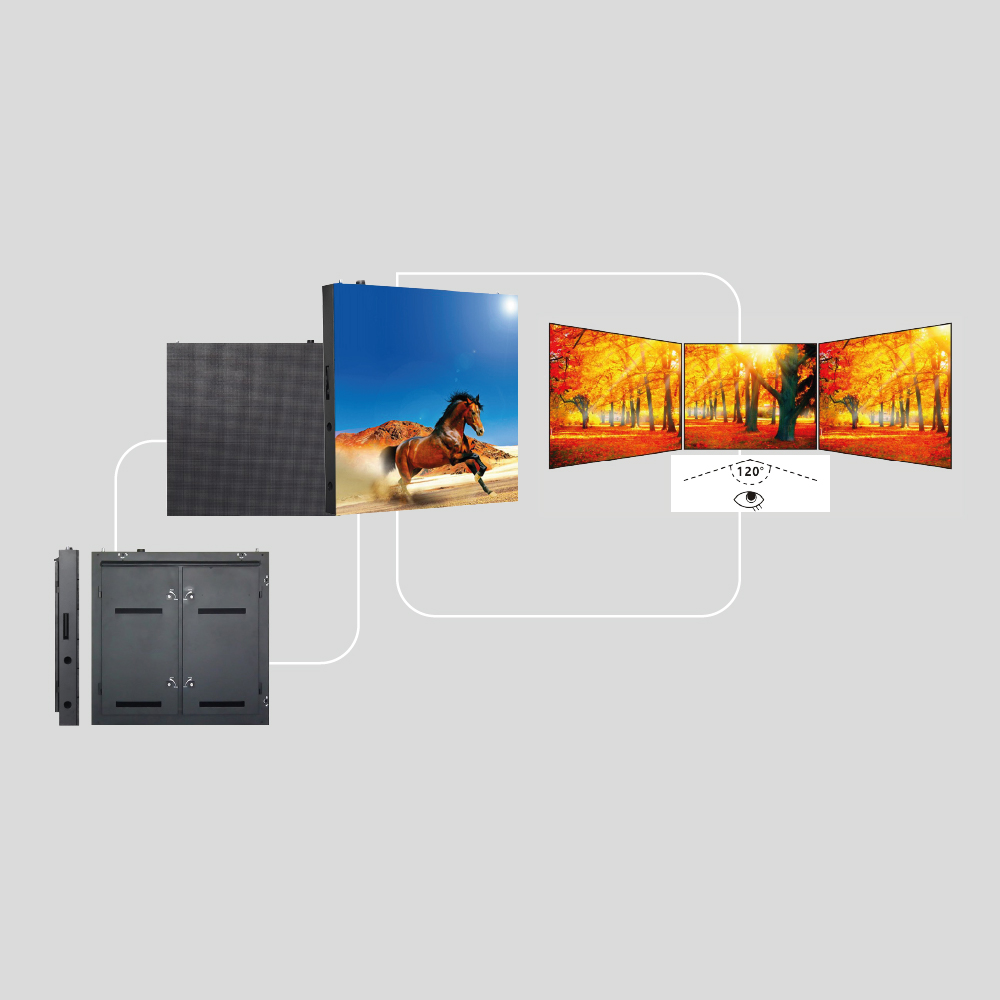

View Angle 140 Horizontal / 120 Vertical
Voltage AC 110V / 220V, 50-60Hz Statampere (sA)
Control System Novastar

Operating Temperature -20C to +60C
Lifetime 100,000 Hours
Cabinet Resolution 160 x 160 pixels
Operating Humidity 10%~90% RH (No Condensation)
Gray Scale 14-16 bit
Ingress Protection IP65 (Front), IP54 (Rear)
Module Resolution 160 x 160 pixels
Frame Frequency 60Hz
Color Temperature 6500K (Adjustable)
Processing Technology 16-bit
Signal Input HDMI, DVI, VGA, SDI, AV
Refresh Rate 1920Hz
Brightness 6500 nits

Digital Outdoor Billboard Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

The P4 Outdoor LED Display with MS (Mild Steel) Cabinets and 320160 SMD Modules is a high-performance, weather-resistant outdoor screen engineered to deliver bright, vibrant visuals with excellent durability and stability. Built with a sturdy MS cabinet structure and premium 320160 SMD LED modules, this display provides superior image quality at a 4 mm pixel pitch ideal for outdoor advertising, DOOH signage, retail displays, and public information boards.

With high brightness, wide viewing angle, and robust protection against rain, dust, and sunlight, this outdoor LED screen ensures clear visibility even in direct daylight. The modular design enables flexible configurations and easy maintenance, making it suitable for fixed installations on building facades, shopping malls, stadiums, transportation hubs, and more.

Key Features

Pixel Pitch: P4 (4 mm) vivid outdoor visuals
Modules: Standard 320160 SMD LED Modules
Cabinet Material: Heavy-duty Mild Steel (MS) Cabinets
Brightness: High outdoor brightness (typically 55006500 nits)
Wide Viewing Angle: Excellent view from multiple directions
Seamless Display Surface: Smooth video wall alignment
Modular Design: Easy panel replacement & front/rear maintenance
High Refresh Rate: Flicker-free performance for video & broadcast
Weatherproof Protection: Suitable for outdoor conditions
Energy Efficient & Reliable: Stable performance with low power draw

Display Function

Outdoor high-brightness video, image, text and dynamic advertising display.

Display Type

Outdoor Fixed LED Video Wall Display

Usage & Application (Short Marketing Style)

Perfect for outdoor advertising billboards, shopping mall signage, building facades, public display boards, stadium screens, and transportation hubs.
