Outdoor LED Screen Mild Steel P3

Price 5500.0 INR/ Square Foot

Get a Price/Quote

MOQ : 1 Square Meter Square Foot

Outdoor LED Screen Mild Steel P3 Specification

Size

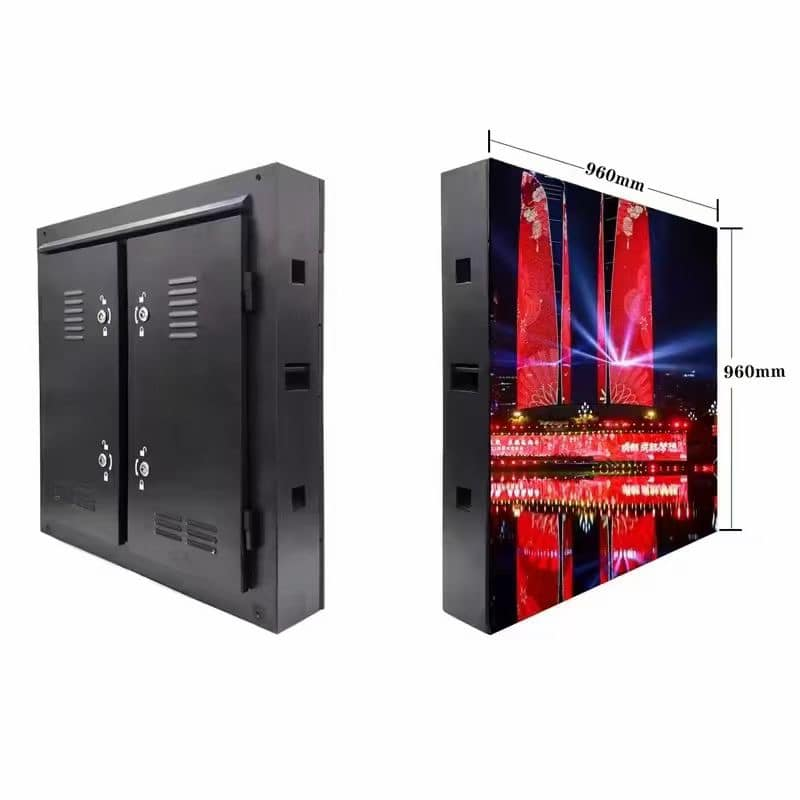

Cabinet Size: 960mm x 960mm

Screen Dimension
Customize as per requirement

Pixels
3mm pixel pitch Pixel (P)

Application
Advertising, Events, Stage, Stadiums

Power Consumption
Max 800W/m , Avg 260W/m Volt (V)

Brightness
5500 cd/m cd/m sq

Display Function
Other

Tube Chip Color
Full Color

View Angle
Horizontal 140 , Vertical 120

Usage
Outdoor

Protection Level
IP65

Input Voltage
AC 220V 10%, 50/60Hz Volt (V)

Control Mode
Synchronous / Asynchronous

Working Temperature
-20 C to +60 C Fahrenheit (oF)

LED Type
SMD 1921

Power Rating
Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.

Warranty
2.Years

Rated Voltage
Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

Usage & Applications
deal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.

Cable Type
Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.

Operating Temperature
Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF)

Display Type
Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.

Phase
Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

Conductor
High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.

Material

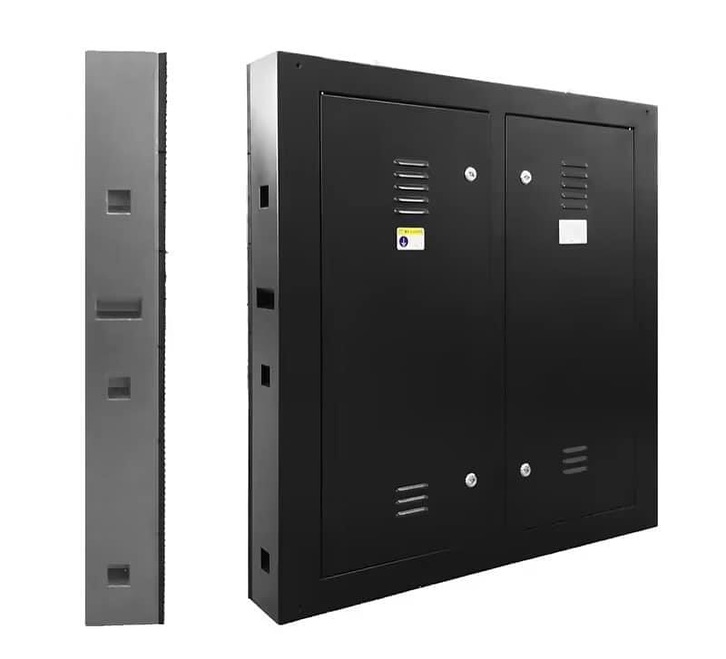

Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

Features
High-brightness P3 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.

Rated Current
Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

Frequency
3840 Hertz (HZ)

Humidity Range
10% to 95% RH

Lifespan
>100,000 Hours

Module Resolution
64 x 64 dots

Module Size
192mm x 192mm

Contrast Ratio
2000:1

Signal Transmission
CAT5/CAT6 Cable, Fiber Optic (optional)

Maintenance Method
Front and Rear Service

Installation Type
Fixed / Rental

Supported Input
HDMI, DVI, VGA, SDI, USB, LAN

Weight per Cabinet
Approx. 28 kg

Cabinet Material
Mild Steel

Gray Scale
14 bits

Driving IC
MBI5124 or Equivalent

Refresh Rate
>1920Hz

Color Temperature
6500K 8000K Adjustable

Outdoor LED Screen Mild Steel P3 Trade Information

Minimum Order Quantity
1 Square Meter Square Foot

Supply Ability
5000 Square Foots Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Outdoor LED Screen Mild Steel P3

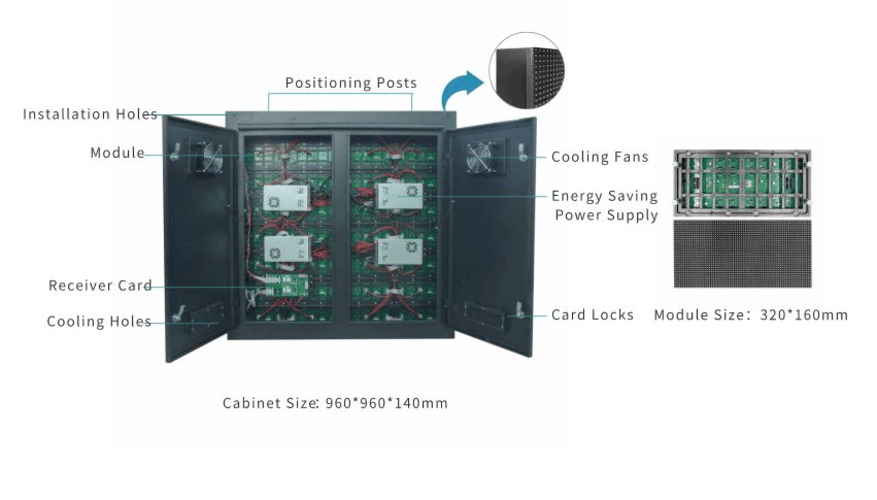

P3 Outdoor LED Display with Lampro Modules (320160 mm) + MS Cabinets 960960 mm

Product Overview

The P3 Outdoor LED Display with Lampro Modules (320160 mm) integrated into heavy-duty 960960 mm MS (Mild Steel) Cabinets is designed for high-resolution outdoor applications requiring sharper visuals at closer viewing distances. With a 3 mm pixel pitch, this display delivers exceptional clarity, vibrant colors, and superior brightness for premium outdoor advertising and commercial installations.

Key Features

3 mm Pixel Pitch High-resolution display for medium viewing distances
High Brightness ( 55006500 nits) Excellent sunlight readability
320160 mm Lampro Modules Precise alignment & seamless tiling
960960 mm MS Cabinet Strong, powder-coated corrosion-resistant structure
IP65 Front Protection Weatherproof against rain & dust
High Refresh Rate (3840 Hz) Smooth, flicker-free video performance
Wide Viewing Angle (140) Consistent visuals from multiple directions
Front/Rear Serviceable Easy installation & maintenance

Technical Specifications

Specification	Details
Pixel Pitch	3 mm
Module Size	320 160 mm
Cabinet Size	960 960 mm
LED Type	Outdoor High-Brightness SMD
Brightness	50006500 nits
Refresh Rate	3840 Hz
Ingress Protection	IP65 (Front)
Operating Temperature	20C to +60C
Input Voltage	AC 220V 10%, 50Hz
Max Power Consumption	700900 W/m
Average Power Consumption	250350 W/m
