Outdoor LED Screen Mild Steel P8

Price 3400.0 INR/ Square Feet

Get a Price/Quote

MOQ : 1 Unit Square Foot

Outdoor LED Screen Mild Steel P8 Specification

Application
Stadiums, Billboards, Outdoor Events

Input Voltage
AC 220V 10%, 50/60Hz Volt (V)

Size
Customizable

Screen Dimension
Customized

Brightness
5000 nits cd/m sq

Control Mode
Synchronous/Asynchronous Control

Working Temperature
-20 C to +60 C Fahrenheit (oF)

Usage
Outdoor Advertising

Display Function
Other

Protection Level
IP65

Pixels
8mm Pixel (P)

LED Type
SMD3535

View Angle
Horizontal 140 , Vertical 120

Tube Chip Color
Full Color

Power Consumption
Max 800W/m , Avg 300W/m Volt-Ampere-Reactive (var)

Power Rating
Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.

Warranty
2.Years

Rated Voltage
Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

Usage & Applications
Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.

Operating Temperature
Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF)

Phase
Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

Display Type
Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.

Material
Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

Frequency
3840 Hertz (HZ)

Rated Current
Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

Conductor
High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.

Features
High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.

Refresh Rate
1920 Hz

Maintenance Mode
Front/Rear Maintenance

Contrast Ratio
4000:1

Lifetime
>100,000 hours

Gray Scale
14 bit

Cabinet Material
Mild Steel

Module Size
320mm x 160mm

Frame Rate
60 Hz

Pixel Density
15625 pixels/m

Weight
Approx. 45 kg/Panel

Operating Humidity
10% to 95% RH

Outdoor LED Screen Mild Steel P8 Trade Information

Minimum Order Quantity
1 Unit Square Foot

Supply Ability
5000 Square Foots Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Outdoor LED Screen Mild Steel P8

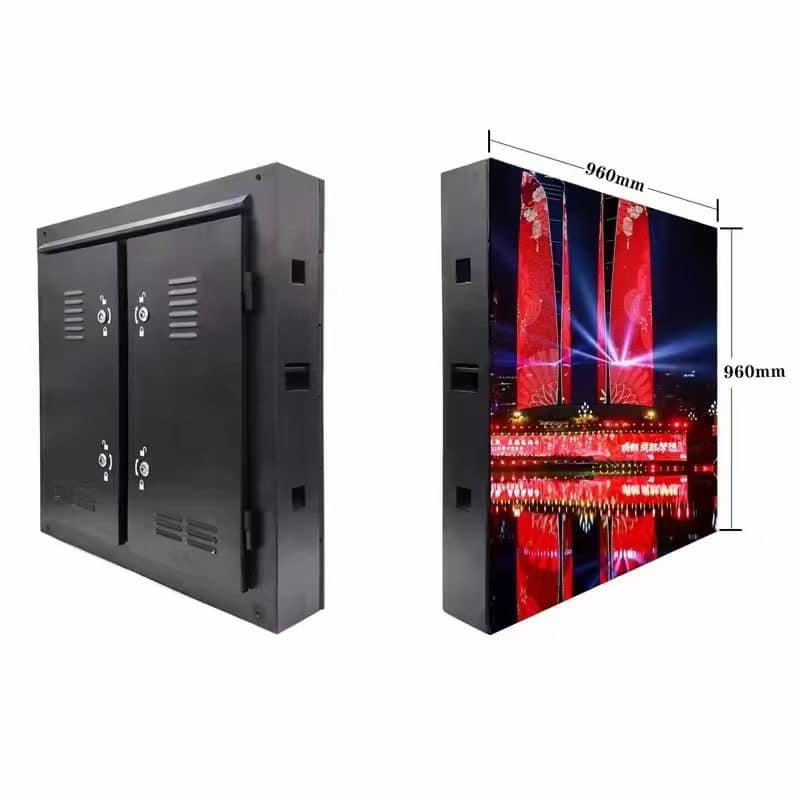

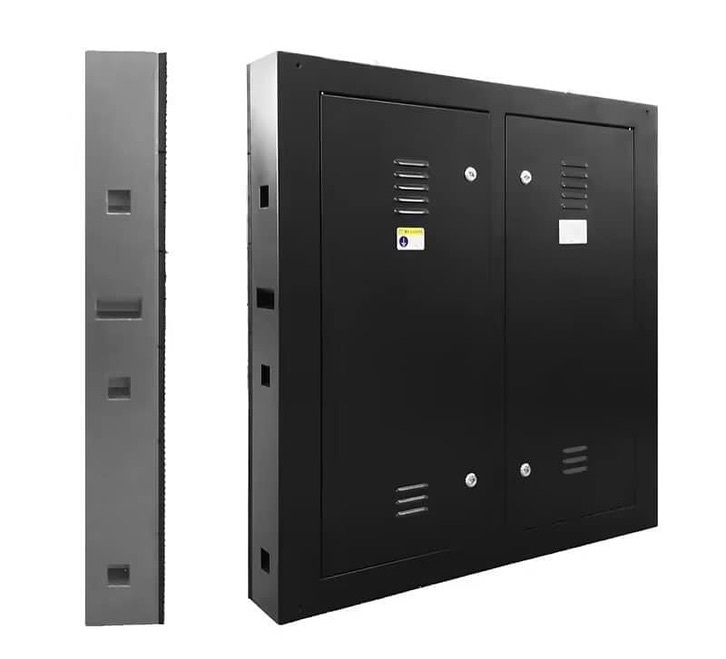

P8 Outdoor LED Display MS Cabinet 960960mm with Lampro Modules (320160mm)

Product Description

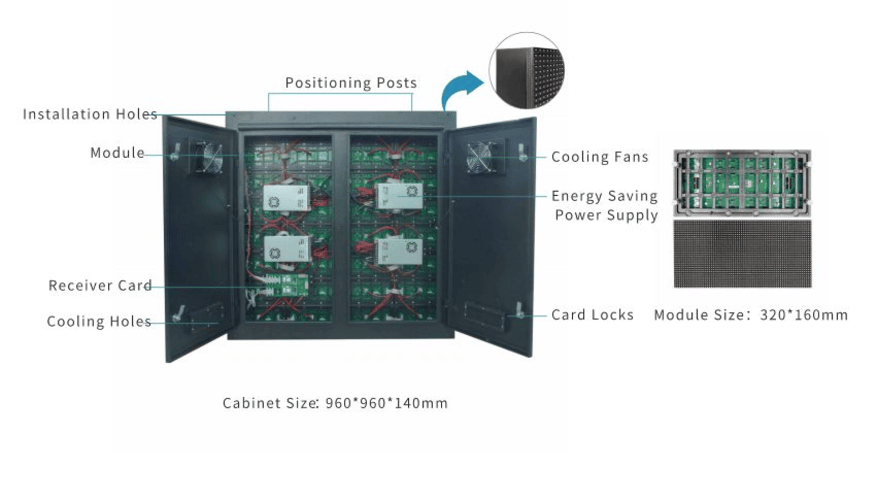

P8 Outdoor LED Display with 960960mm MS Cabinets and Lampro 320160mm modules is a robust and high-brightness outdoor video wall solution designed for long-distance viewing. Built with a durable mild steel cabinet structure, it ensures strong weather resistance and stable performance in challenging outdoor conditions. Ideal for advertising, public displays, and large venue installations.

Technical Specifications

Pixel Pitch: P8 (8mm)
Module Size: 320160mm (Lampro Series)
Cabinet Size: 960960mm (MS Cabinet)
Cabinet Material: Mild Steel (Powder Coated)
Brightness: 55006500 nits
Viewing Distance: 8 meters & above
Refresh Rate: 1920Hz / 3840Hz (optional)
IP Rating: IP65 (Front) / IP54 (Rear)
Display Type: Outdoor SMD Full Color LED Display
Operation Temperature: -10C to +60C
Rated Voltage: AC 110V240V
Power Consumption:
- Max: 800W/sqm
- Average: 250300W/sqm
Phase: Single Phase

Key Features (Short Highlights)

High brightness for direct sunlight visibility
Strong MS cabinet for heavy-duty outdoor use
Seamless 960960 standard cabinet structure
Weatherproof & dustproof design
Easy front & rear maintenance
Energy-efficient power supply system

Applications

Highway & Roadside Billboards Large-format outdoor advertising for maximum long-distance visibility.
Stadiums & Sports Grounds Live match display, scoreboards, and sponsor promotions.
Commercial Building Facades Brand promotions and digital signage.
Shopping Malls & Multiplex Exteriors Promotional campaigns and event displays.
Public Spaces & City Squares Government announcements and public awareness campaigns.
Industrial & Corporate Premises Company branding and information display.
