Outdoor LED Screen Mild Steel P2.5

Price 9500.0 INR/ Square Foot

Get a Price/Quote

MOQ : 1 Unit Square Foot

Outdoor LED Screen Mild Steel P2.5 Specification

View Angle
140 (horizontal & vertical)

Brightness
5000 cd/m cd/m sq

Application
Advertising, Events, Stage, Stadiums

Screen Dimension
As per requirement

Usage
Outdoor

Pixels
2.5mm Pixel Pitch Pixel (P)

Working Temperature
-20 C to +50 C Fahrenheit (oF)

Input Voltage
AC 220V / 110V 10%, 50~60Hz Volt (V)

Power Consumption
Max 650W/m , Avg 200W/m Volt-Ampere (VA)

Display Function
Other

Size
Customizable

Tube Chip Color
Other

Protection Level
IP65

LED Type
SMD1921

Control Mode
Synchronous/Asynchronous

Power Rating
Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.

Warranty
2.Years

Usage & Applications
Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.

Rated Voltage
Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

Operating Temperature
20 C to +60 C. Celsius (oC)

Cable Type
Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.

Phase
Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

Display Type
Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.

Rated Current
Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

Frequency
3840 Hertz (HZ)

Conductor
High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation

Material
eavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.

Features
High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.

Cabinet Material
Mild Steel

Operating Humidity
10% - 90% RH

Life Span
100,000 hours

Module Size
320mm x 160mm

Weight per Cabinet
Approximately 35 kg

Refresh Rate
1920 Hz

Maintenance
Front/Rear Serviceable

Driving Method
1/32 Scan

Module Resolution
128 x 64 dots

Gray Scale
16 bit

Outdoor LED Screen Mild Steel P2.5 Trade Information

Minimum Order Quantity
1 Unit Square Foot

Supply Ability
5000 Square Foots Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Outdoor LED Screen Mild Steel P2.5

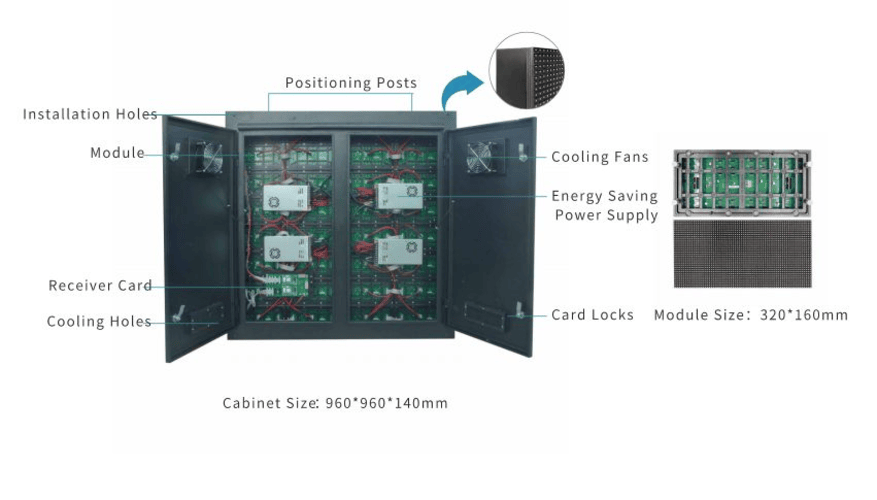

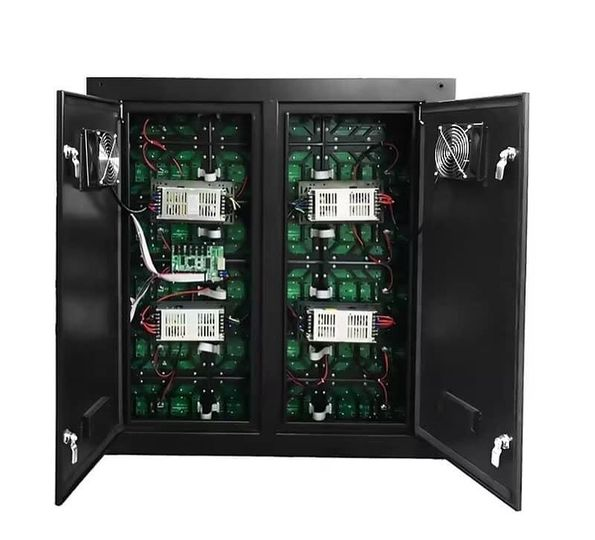

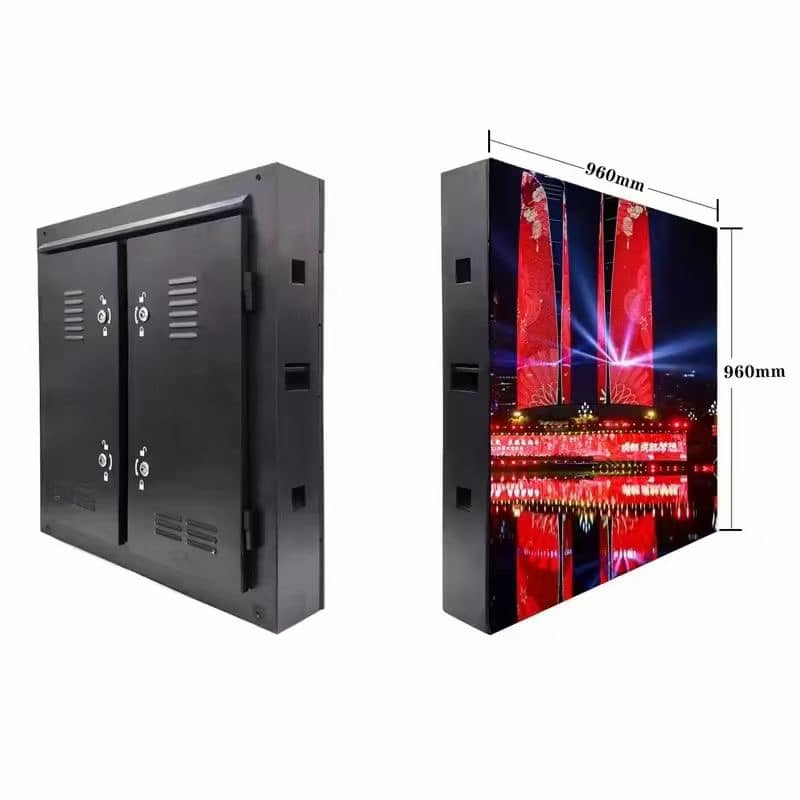

P2.5 Outdoor LED Display with Lampro Modules (320160 mm) + MS Cabinets 960960 mm

Product Overview

The P2.5 Outdoor LED Display with Lampro Modules (320160 mm) integrated into robust 960960 mm MS (Mild Steel) Cabinets is a premium high-resolution outdoor display solution. Designed for close to medium viewing distances, this display delivers ultra-sharp visuals, superior brightness, and reliable performance in demanding outdoor environments.

Key Features

2.5 mm Pixel Pitch Ultra-clear visuals for closer outdoor viewing
High Brightness ( 55006500 nits) Excellent daylight readability
320160 mm Lampro Modules Seamless tiling & precise alignment
960960 mm MS Cabinet Heavy-duty powder-coated structure
IP65 Weatherproof Protection Resistant to rain, dust & humidity
High Refresh Rate (3840 Hz) Smooth, flicker-free video playback
Wide Viewing Angle (140) Consistent brightness & color uniformity
Front/Rear Serviceable Design Easy maintenance & reduced downtime

Technical Specifications

Specification	Details
Pixel Pitch	2.5 mm
Module Size	320 160 mm
Cabinet Size	960 960 mm
LED Type	Outdoor High-Brightness SMD
Brightness	50005500 nits
Refresh Rate	3840 Hz
Ingress Protection	IP65 (Front)
Operating Temperature	20C to +60C
Input Voltage	AC 220V 10%, 50Hz
Max Power Consumption	700900 W/m
Average Power Consumption	250350 W/m
