Outdoor LED Screen Mild Steel P6

3750.0 INR/Square Foot

Get a Price/Quote

Product Details:

Control Mode Synchronous/Asynchronous
View Angle 140 (Horizontal) / 120 (Vertical)
Protection Level IP65
Application Advertising, Events, Stadiums, Public Display
Power Consumption Max 850W/m , Avg 250W/m Volt-Ampere (VA)
Usage Outdoor
Brightness 4500 cd/m cd/m sq
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Outdoor LED Screen Mild Steel P6 Price And Quantity

Price 3750.0 INR/Square Foot
Minimum Order Quantity 1 Unit Square Foot

Outdoor LED Screen Mild Steel P6 Product Specifications

Size Customizable
Usage & Applications Ideal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.
Rated Voltage Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)
Tube Chip Color Full Color
Screen Dimension Customized
Material Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.
Conductor High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.
Cable Type Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.
Display Function Video
Input Voltage AC 220V/110V 10% Volt (V)
LED Type SMD3535
Pixels P6 (6mm pixel pitch) Pixel (P)
Working Temperature -20 C to +60 C Fahrenheit (oF)
Warranty 2.Years
Brightness 4500 cd/m cd/m sq
Usage Outdoor
Frequency 3840 Hertz (HZ)
Application Advertising, Events, Stadiums, Public Display
Display Type Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.
Operating Temperature 20 C to +60 C. Fahrenheit (oF)
Power Consumption Max 850W/m , Avg 250W/m Volt-Ampere (VA)
Phase Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.
View Angle 140 (Horizontal) / 120 (Vertical)
Control Mode Synchronous/Asynchronous
Rated Current Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)
Features High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.
Power Rating Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.
Protection Level IP65

Lifespan >100,000 hours
Gray Scale 16 bit
Maintenance Front/Rear Serviceable
Installation Type Fixed/Wall Mounting
Humidity 10% - 90% RH
Operating System Compatibility Windows
Module Size 192 x 192 mm
Cabinet Material Mild Steel
Weight 13 kg/cabinet
Module Resolution 32 x 32 dots
Refresh Rate 1920 Hz

Outdoor LED Screen Mild Steel P6 Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

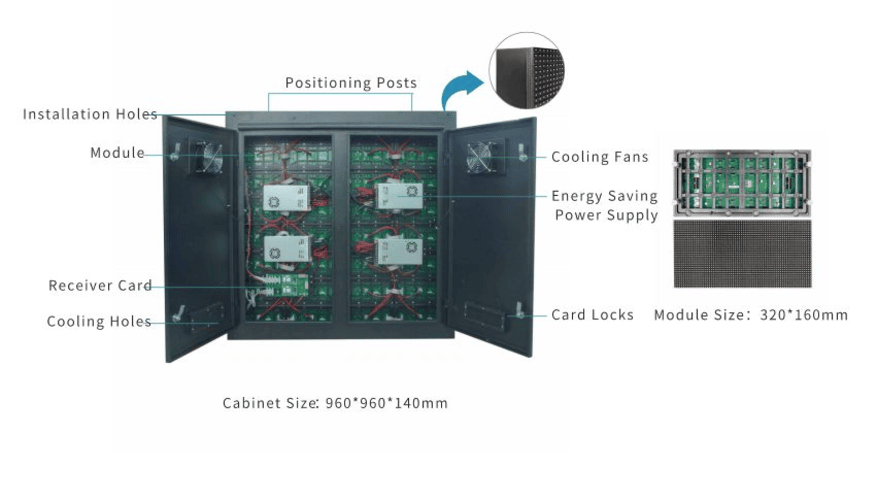

P6 Outdoor LED Display with Lampro Modules (192192 mm) + MS Cabinets 960960 mm

Product Overview

The P6 Outdoor LED Display with Lampro Modules (192192 mm) integrated into heavy-duty 960960 mm MS (Mild Steel) Cabinets is engineered for high-performance outdoor advertising and large-format digital displays. With a 6 mm pixel pitch, it provides excellent visibility for medium to long viewing distances, making it ideal for highways, commercial facades, stadiums, and public installations.

Key Features

6 mm Pixel Pitch Optimized for long-distance outdoor viewing
High Brightness (Sunlight Readable) 55006500 nits
192192 mm Lampro Modules Precise alignment & seamless tiling

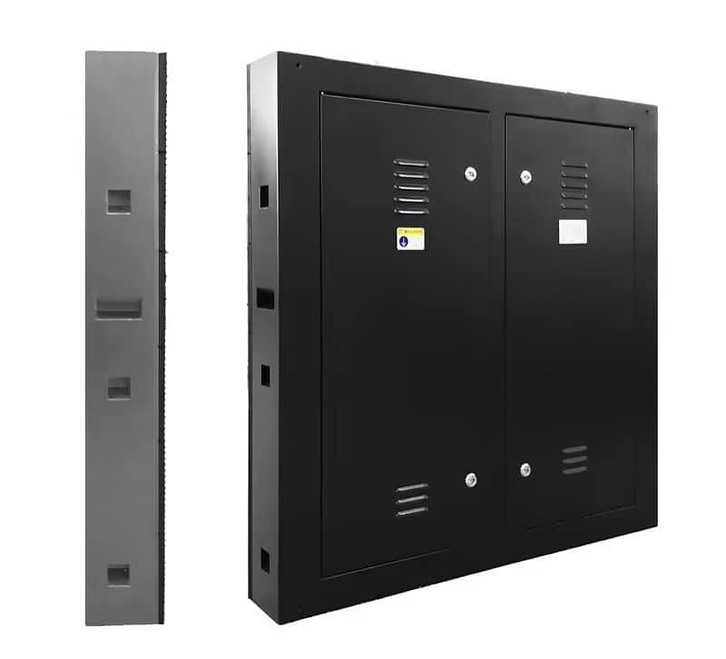

960960 mm MS Cabinets Strong, powder-coated corrosion-resistant structure
IP65 Weatherproof Protection Reliable in rain, dust & humidity
High Refresh Rate (3840 Hz) Smooth, flicker-free visuals
Wide Viewing Angle (140) Clear display from multiple perspectives
Front/Rear Serviceable Design Easy maintenance & reduced downtime

Technical Specifications

Specification	Details
Pixel Pitch	6 mm
Module Size	192 192 mm

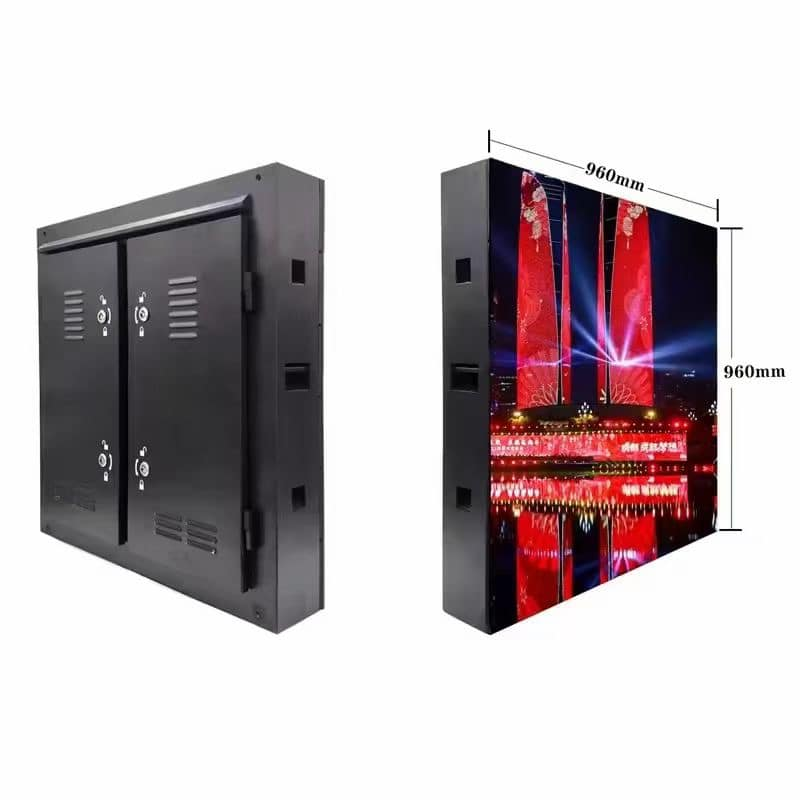

Cabinet Size	960 960 mm
LED Type	Outdoor High-Brightness SMD
Brightness	40004500 nits
Refresh Rate	3840 Hz
Ingress Protection	IP65 (Front)
Operating Temperature	20C to +60C
Input Voltage	AC 220V 10%, 50Hz
Max Power Consumption	650800 W/m
Average Power Consumption	250350 W/m

Applications

Highway & Roadside Billboards
Outdoor Advertising Hoardings
Stadium & Sports Displays
Transportation Hubs
Commercial Complex Facades
Government & Public Information Boards
