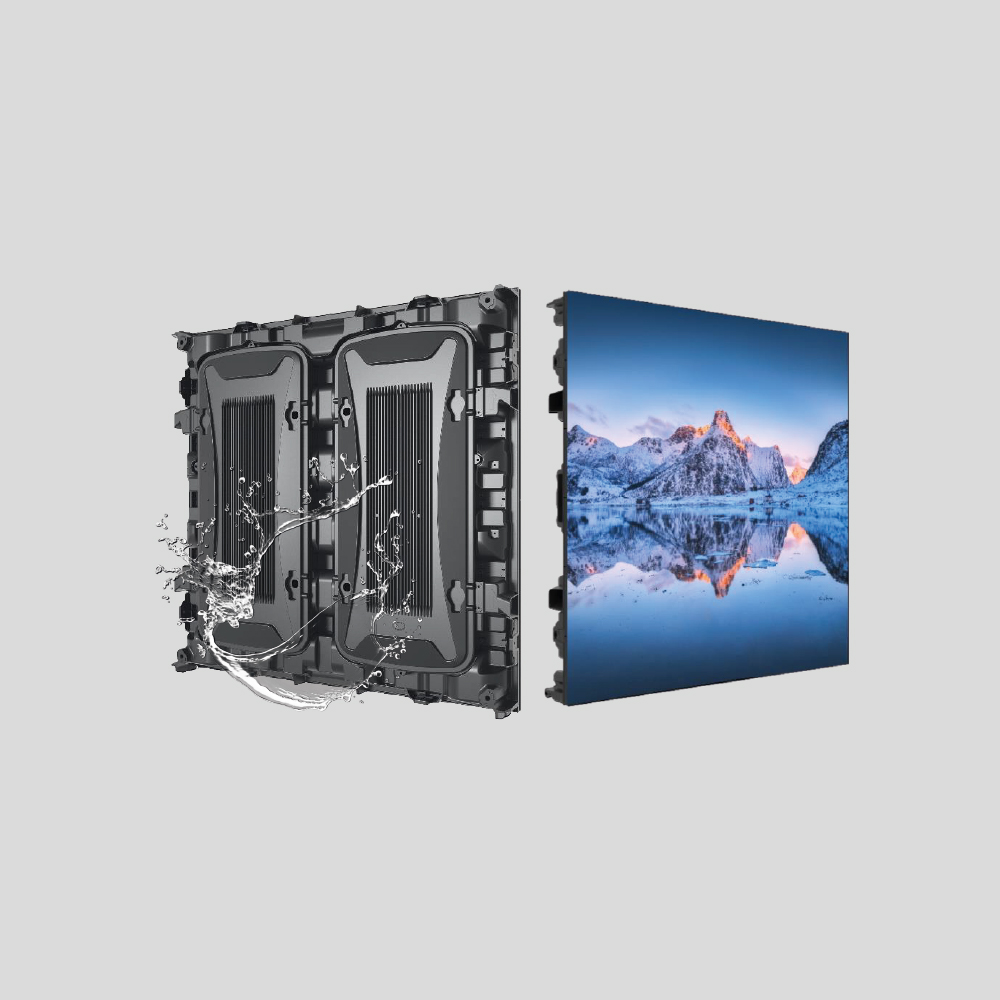

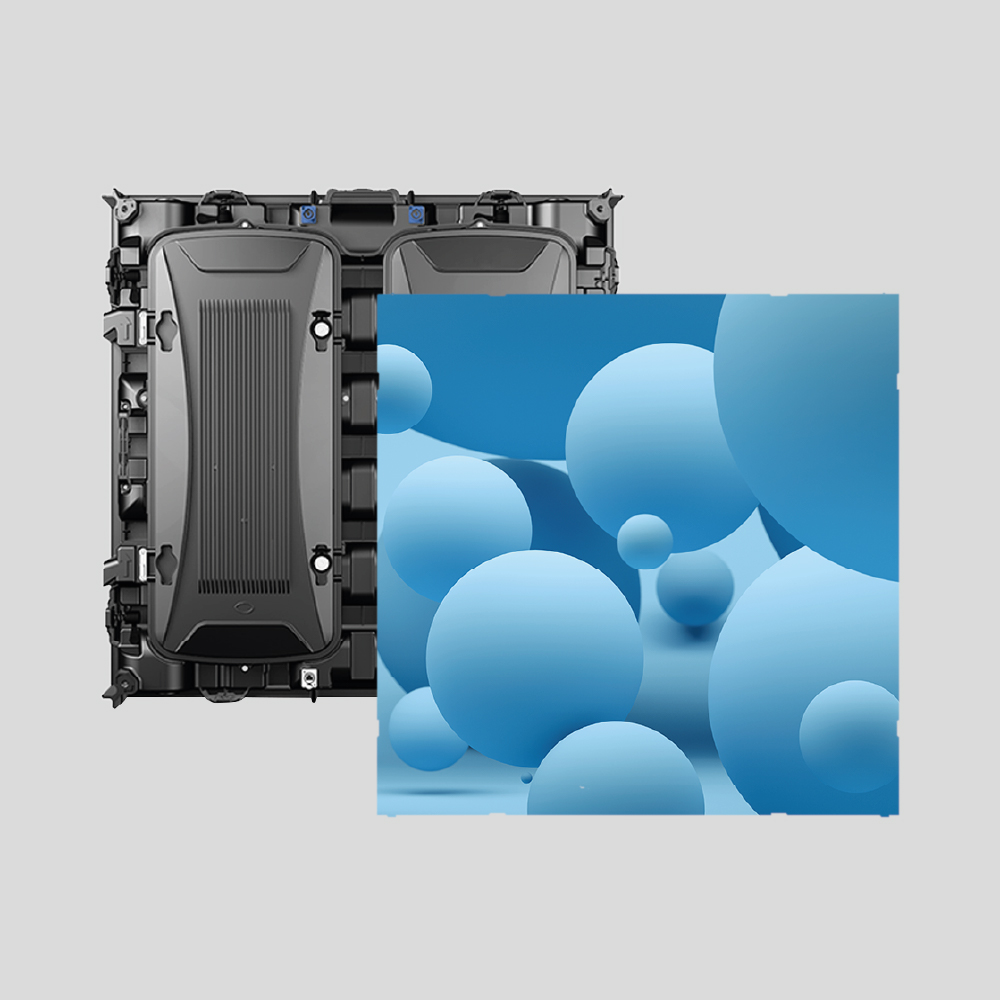

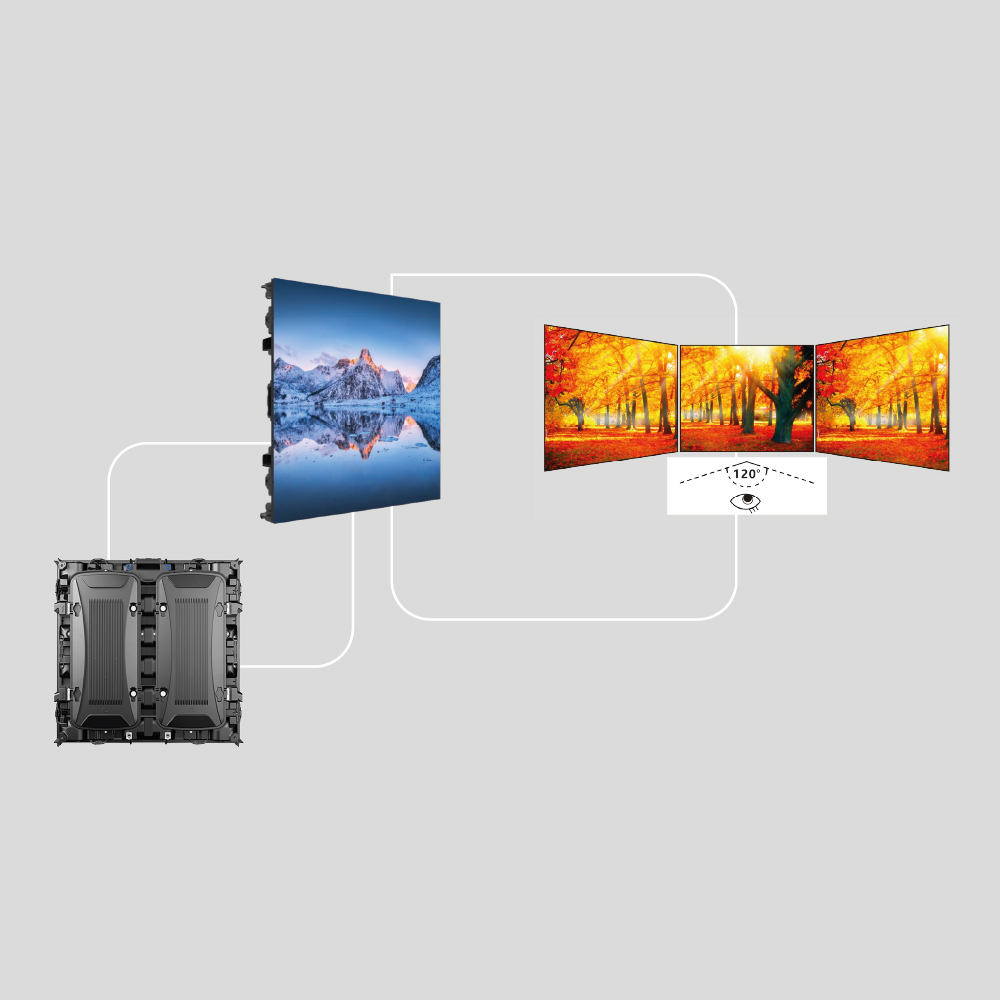

P8 Outdoor LED Screen Diecast Magnesium

4500.0 INR/Square Feet

Get a Price/Quote

Product Details:

Water Proof Yes
Body Material Magnesium Alloy
Power Supply AC 110-240V, 50/60Hz
Product Type P8 Outdoor LED Screen Diecast Magnesium
Power Rating Max 800 900W per cabinet | Average 250 350W per cabinet (960 960 P2.5 Outdoor Die-Cast Magnesium Cabinet).
Display Function Video, Image, Animation, Text, Graphics
Application Outdoor Advertising, Stadiums, Events, Public Displays
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

P8 Outdoor LED Screen Diecast Magnesium Price And Quantity

Minimum Order Quantity 30 Square Foot
Price 4500.0 INR/Square Feet

P8 Outdoor LED Screen Diecast Magnesium Product Specifications

Size 960mm x 960mm (standard cabinet)
Dimension (L*W*H) 960mm x 960mm x 80mm Millimeter (mm)
Rated Voltage AC 110V 240V, 50/60Hz (Wide voltage input for stable outdoor operation). Volt (V)
Working Voltage AC 220V 10%, 50/60Hz
Water Proof Yes
Warranty 2.Years
Rated Current Approx. 4.0 4.5 Amps per cabinet (at 220V, Max Load) for P2.5 Outdoor 960 960 Die-Cast Magnesium Cabinet. Volt (v)
Frame Diecast Magnesium Alloy
Phase Single Phase (AC 110V 240V, 50/60Hz); Three Phase recommended for large screen installations.
Features High-brightness P2.5 outdoor LED display with lightweight 960 960 die-cast magnesium cabinets delivering durable, seamless, and weatherproof performance.
Frequency 3840 Hertz (HZ)
Product Type P8 Outdoor LED Screen Diecast Magnesium
IP Rating IP65
Color Full Color
Usage & Applications Designed for premium outdoor advertising, building facades, roadside billboards, commercial complexes, stadium perimeters, and large public information displays requiring high brightness and weather-resistant performance.
Working Temperature -20 C to +60 C Celsius (oC)
Conductor High-purity copper internal power and signal conductors with gold-plated connector pins for stable outdoor performance.
Screen Dimension Customized
Pixels 8mm Pixel Pitch Pixel (P)
Operating Temperature -20 C to +60 C, designed for stable outdoor performance in extreme heat, rain, and dusty environments. Celsius (oC)
Display Function Video, Image, Animation, Text, Graphics
Material Die-Cast Magnesium Cabinet with Weatherproof Outdoor SMD Modules and Anti-Corrosion Coating.
Power Supply AC 110-240V, 50/60Hz
Display Type Outdoor Fixed Installation, Full-Color SMD (RGB) LED Display with Die-Cast Magnesium Cabinet.
Power Rating Max 800 900W per cabinet | Average 250 350W per cabinet (960 960 P2.5 Outdoor Die-Cast Magnesium Cabinet).
Body Material Magnesium Alloy
Application Outdoor Advertising, Stadiums, Events, Public Displays

Cabinet Weight 23 kg
Operating System Supported Windows, Mac OS, Android
Signal Input HDMI, DVI, VGA, SDI, USB
Refresh Rate 1920 Hz
Operating Humidity 10%-90% RH
Brightness >5500 nits
Maintenance Front/Rear Maintenance Supported
Gray Scale 14 bit
LED Type SMD3535
Cooling System Intelligent Air Cooling
Life Span >100,000 hours
Pixel Density 15,625 dots/m
Module Resolution 32 x 16 pixels
Control System Synchronous/Asynchronous Control
Viewing Angle Horizontal 140, Vertical 120

P8 Outdoor LED Screen Diecast Magnesium Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

P8 Outdoor LED Display 960960 Die-Cast Magnesium Cabinet (With 320160 Lampro Modules)

Product Description

The P8 Outdoor LED Display 960960 Die-Cast Magnesium Cabinet Series is a high-brightness, large-format outdoor display solution designed for long-distance viewing applications. Constructed with die-cast magnesium cabinets, it provides a lightweight yet highly durable structure with excellent heat dissipation and corrosion resistance for continuous outdoor performance.

Integrated with 320160mm Lampro outdoor modules, the display ensures stable performance, uniform brightness, and vivid color output. With an 8mm pixel pitch, it is ideal for medium to long viewing distances such as highways, large billboards, and stadium displays.

Engineered with IP65 protection, this system withstands harsh environmental conditions including rain, dust, heat, and humidity.

Key Specifications

Pixel Pitch: 8mm
Cabinet Size: 960mm 960mm
Module Size: 320mm 160mm (Lampro Outdoor Modules)
Cabinet Material: Die-Cast Magnesium
LED Type: SMD 3535 (High Brightness Outdoor Grade)
Brightness: 6,0007,000 Nits
Rated Voltage: AC 110V240V, 50/60Hz
Operating Temperature: -20C to +60C
Power Rating: Max 700800W | Avg 220300W per cabinet
Rated Current: Approx. 3.23.8 Amps per cabinet (at 220V, Max Load)
Phase: Single Phase (Three Phase recommended for large installations)
Maintenance: Front & Rear Serviceable
Protection Rating: IP65 (Front & Rear)

Applications

Highway & Expressway Billboards
Large Outdoor Advertising Hoardings
Stadium Perimeter & Scoreboards
Commercial Complex Displays
Public Information & Traffic Displays
