P4 Outdoor LED Screen Diecast Magnesium Specification

Water Proof
Yes

Power Supply
AC Power Supply

Body Material
Diecast Magnesium Alloy

Product Type
P4 Outdoor LED Screen, Diecast Magnesium Cabinet

Power Rating
Max 800 900W per cabinet | Average 250 350W per cabinet (960 960 P2.5 Outdoor Die-Cast Magnesium Cabinet).

Application
Outdoor Advertising, Events, Signage

Display Function
Video, Image, Text Display

Working Voltage
AC 110V/220V 10%, 50~60Hz

Screen Dimension
Customizable

IP Rating
IP65 (Front), IP54 (Rear)

Working Temperature
-20 C to +60 C Celsius (oC)

Pixels
P4 (4mm Pixel Pitch) Pixel (P)

Frame
Diecast Magnesium

Usage & Applications
Designed for premium outdoor advertising, building facades, roadside billboards, commercial complexes, stadium perimeters, and large public information displays requiring high brightness and weather-resistant performance.

Size
Customizable

Rated Voltage
AC 110V 240V, 50/60Hz (Wide voltage input for stable outdoor operation). Volt (V)

Operating Temperature
-20 C to +60 C, designed for stable outdoor performance in extreme heat, rain, and dusty environments. Celsius (oC)

Color
Full Color RGB

Dimension (L*W*H)
960mm x 960mm x 100mm (Cabinet Size) Millimeter (mm)

Warranty
2.Years

Phase
Single Phase (AC 110V 240V, 50/60Hz); Three Phase recommended for large screen installations.

Display Type
Outdoor Fixed Installation, Full-Color SMD (RGB) LED Display with Die-Cast Magnesium Cabinet.

Rated Current
Approx. 4.0 4.5 Amps per cabinet (at 220V, Max Load) for P2.5 Outdoor 960 960 Die-Cast Magnesium Cabinet. Volt (v)

Frequency
3840 Hertz (HZ)

Features
High-brightness P4 outdoor LED display with lightweight 960 960 die-cast magnesium cabinets delivering durable, seamless, and weatherproof performance.

Conductor
High-purity copper internal power and signal conductors with gold-plated connector pins for stable outdoor performance.

Material
Die-Cast Magnesium Cabinet with Weatherproof Outdoor SMD Modules and Anti-Corrosion Coating.

Gray Scale
16 bit

Installation Type
Fixed / Rental / Hanging

Operating Humidity
10% ~ 95% RH

LED Type
SMD1921

Lifespan
100,000 hours

Viewing Angle

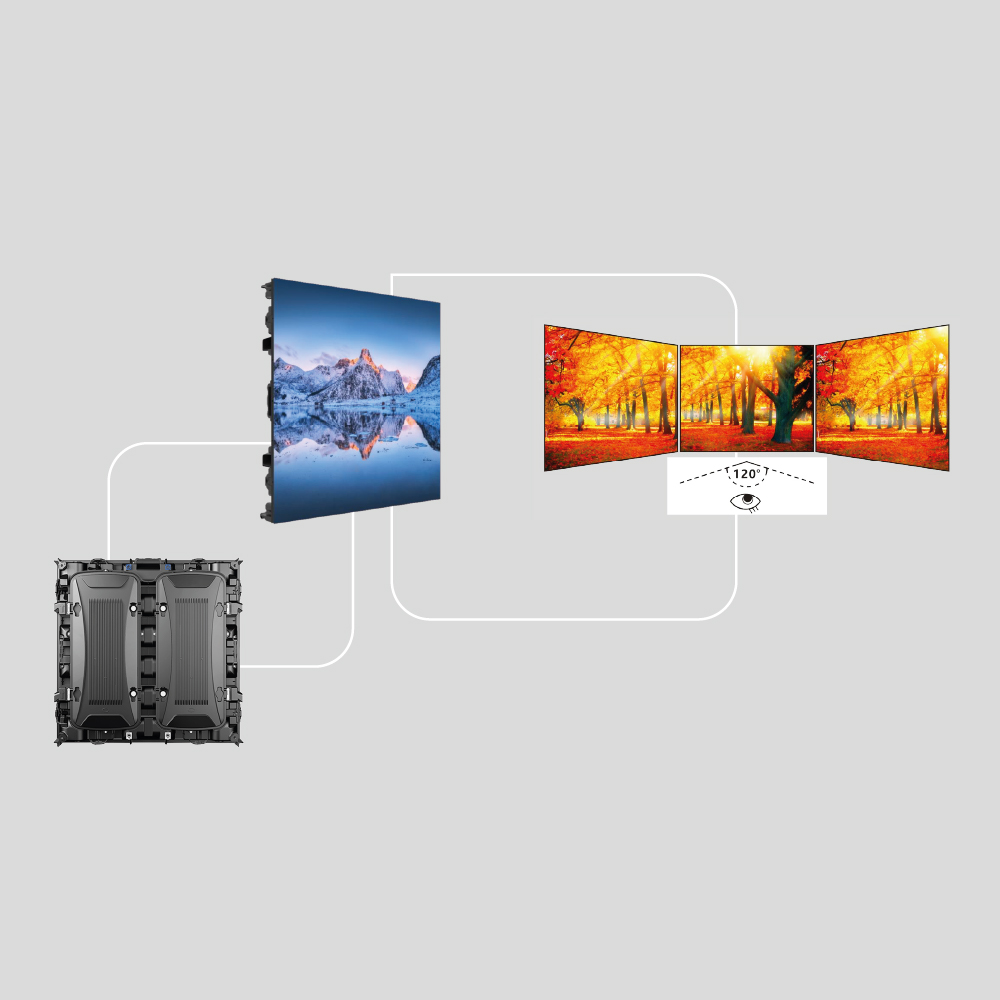

160 (Horizontal), 140 (Vertical)

Brightness
5500 nits

Average Power Consumption
260W/m

Control System
Synchronous/Asynchronous

Module Resolution
64 x 32 dots

Cabinet Weight
8 kg 5% (per cabinet)

Refresh Rate
1920 Hz

Maximum Power Consumption
800W/m

Maintenance
Front / Rear Maintenance

Cabinet Material
Diecast Magnesium Alloy

P4 Outdoor LED Screen Diecast Magnesium Trade Information

Minimum Order Quantity
30 Square Foots

Supply Ability
5000 Square Foots Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About P4 Outdoor LED Screen Diecast Magnesium

P4 Outdoor LED Display 960960 Die-Cast Magnesium Cabinet (With 320160 Lampro Modules)

Product Description

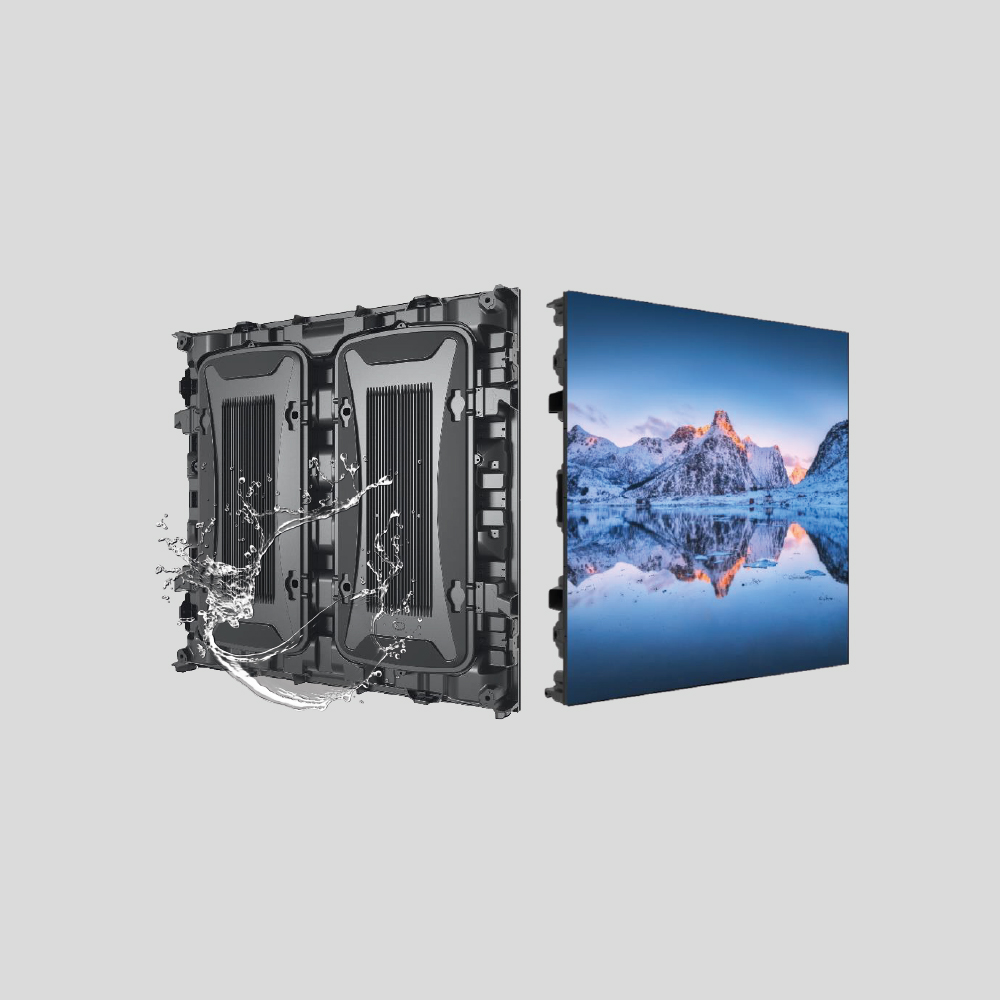

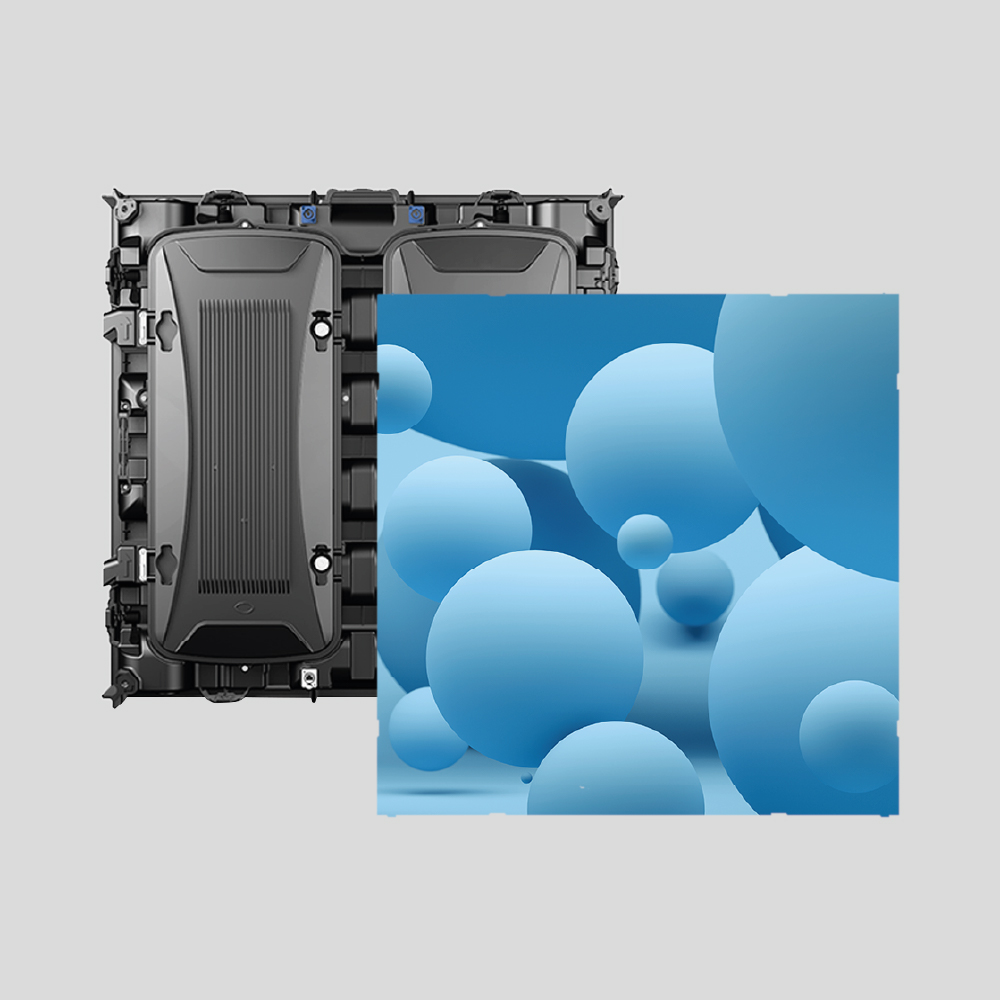

The P4 Outdoor LED Display 960960 Die-Cast Magnesium Cabinet Series is a robust and cost-effective outdoor display solution designed for high visibility and long-term durability. Built with die-cast magnesium cabinets, this series offers a lightweight structure, excellent heat dissipation, and strong resistance to corrosion, making it ideal for permanent outdoor installations.

Equipped with 320160mm Lampro outdoor modules, the display ensures accurate pixel placement, uniform brightness, and vivid color reproduction. With a 4mm pixel pitch, it provides clear visuals for medium to long viewing distances, making it perfect for outdoor advertising and commercial signage.

Engineered with IP65 weather protection, the display performs reliably in rain, dust, humidity, and high-temperature environments.

Key Specifications

Pixel Pitch: 4mm
Cabinet Size: 960mm 960mm
Module Size: 320mm 160mm (Lampro Outdoor Modules)
Cabinet Material: Die-Cast Magnesium
LED Type: SMD 1921 (Outdoor Grade)
Brightness: 5,5006,500 Nits
Rated Voltage: AC 110V240V, 50/60Hz
Operating Temperature: -20C to +60C
Power Rating: Max 750850W | Avg 250320W per cabinet
Rated Current: Approx. 3.54.0 Amps per cabinet (at 220V, Max Load)
Phase: Single Phase (Three Phase recommended for large installations)
Maintenance: Front & Rear Serviceable
Protection Rating: IP65 (Front & Rear)

Applications

Outdoor Advertising Billboards
Highway & Roadside Displays
Commercial Building Facades
Shopping Malls & Multiplexes
Stadium Perimeter Screens
Public Information Displays
