P3 Outdoor LED Screen Diecast Magnesium Specification

Body Material
Diecast Magnesium Alloy

Power Supply
Integrated Power Supply

Water Proof
Yes

Power Rating
Max 800 900W per cabinet | Average 250 350W per cabinet (960 960 P2.5 Outdoor Die-Cast Magnesium Cabinet).

Product Type
P3 Outdoor LED Screen Diecast Magnesium

Display Function
Video, Graphic, Animation, Text

Application
Ideal for high-resolution outdoor advertising, commercial facades, highway billboards, and public information displays requiring bright and weatherproof performance.

Working Voltage
AC 110-240V, 50/60Hz

Screen Dimension
Customizable

IP Rating
IP65

Working Temperature
-20 C to +50 C Celsius (oC)

Pixels
P3 (3mm Pixel Pitch) Pixel (P)

Frame
Diecast Magnesium Alloy

Size
960mm x 960mm Per Panel

Rated Voltage
AC 110V 240V, 50/60Hz (Wide voltage input for stable outdoor operation). Volt (V)

Usage & Applications
Designed for premium outdoor advertising, building facades, roadside billboards, commercial complexes, stadium perimeters, and large public information displays requiring high brightness and weather-resistant performance.

Color
Full Color RGB

Operating Temperature
-20 C to +60 C, designed for stable outdoor performance in extreme heat, rain, and dusty environments. Celsius (oC)

Dimension (L*W*H)
960mm x 960mm x 100mm (Per Cabinet) Millimeter (mm)

Warranty
2.Years

Display Type
Outdoor Fixed Installation, Full-Color SMD (RGB) LED Display with Die-Cast Magnesium Cabinet.

Phase
ingle Phase (AC 110V 240V, 50/60Hz); Three Phase recommended for large screen installations.

Rated Current
Approx. 4.0 4.5 Amps per cabinet (at 220V, Max Load) for P2.5 Outdoor 960 960 Die-Cast Magnesium Cabinet. Volt (v)

Conductor
High-purity copper internal power and signal conductors with gold-plated connector pins for stable outdoor performance.

Features
High-brightness P3 outdoor LED display with lightweight 960 960 die-cast magnesium cabinets delivering durable, seamless, and weatherproof performance.

Material
Die-Cast Magnesium Cabinet with Weatherproof Outdoor SMD Modules and Anti-Corrosion Coating.

Frequency
3840 Hertz (HZ)

Maintenance
Front/Rear Serviceable

Grey Scale
14-16 Bit

Refresh Rate
1920Hz

Installation
Hanging/Mounting/Floor Support

Cabinet Weight
Approx. 7.5 kg

Viewing Angle
Horizontal 140, Vertical 120

Life Span
100,000 hours

Module Resolution
64 x 64 pixels

LED Type
SMD 1921

Control System
Novastar / Linsn Compatible

Brightness
5000 nits

Operating Humidity
10% - 95% RH

P3 Outdoor LED Screen Diecast Magnesium Trade Information

Minimum Order Quantity
30 Square Foots

Supply Ability
5000 Square Foots Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About P3 Outdoor LED Screen Diecast Magnesium

P3 Outdoor LED Display 960960 Die-Cast Magnesium Cabinet (With 320160 Lampro Modules)

Product Description

The P3 Outdoor LED Display 960960 Die-Cast Magnesium Cabinet Series is a high-performance outdoor display solution designed for superior brightness, durability, and seamless large-format installations. Built using lightweight die-cast magnesium cabinets, this series ensures excellent structural strength, efficient heat dissipation, and corrosion resistance for long-term outdoor use.

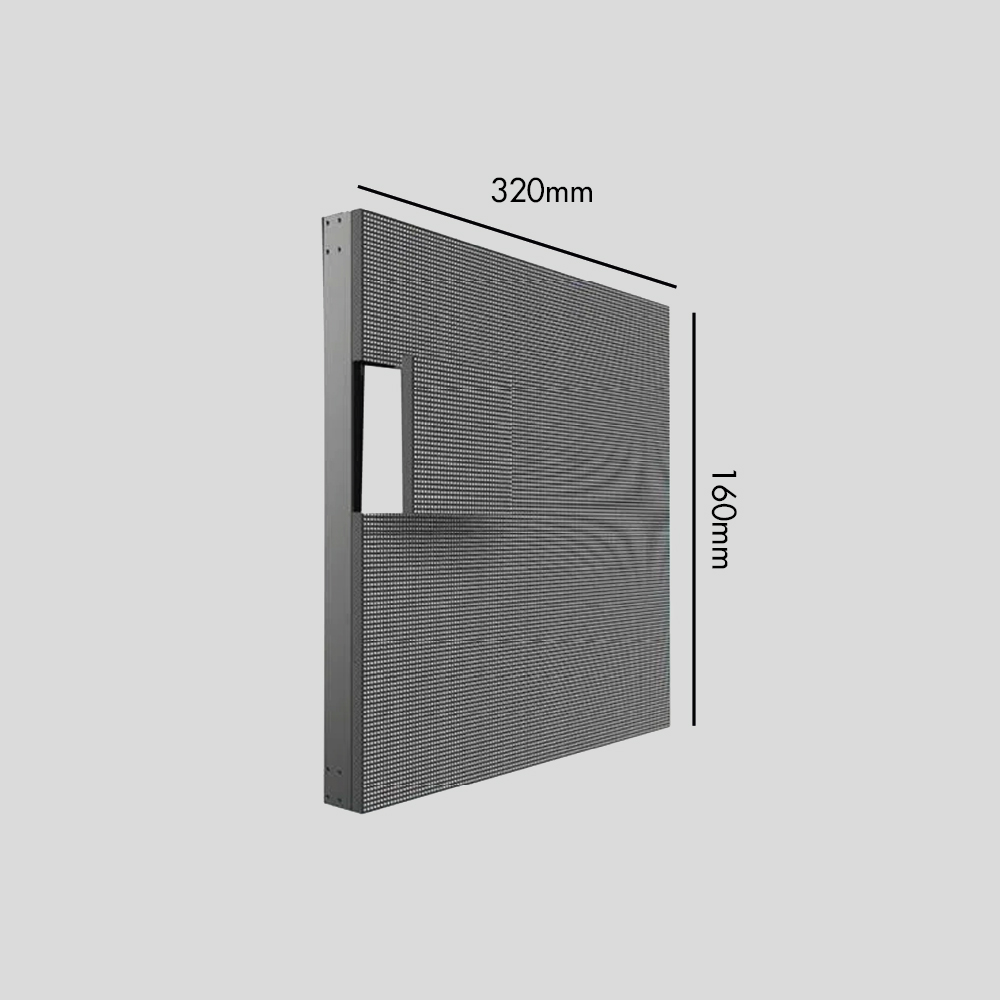

Configured with 320160mm Lampro outdoor modules, the display offers precise pixel alignment, uniform brightness, and vibrant color reproduction. With a 3mm pixel pitch, it delivers sharp visuals suitable for medium viewing distances, making it ideal for roadside billboards, commercial facades, and advertising displays.

Designed with IP65 protection, the system performs reliably in harsh outdoor environments including rain, dust, and high temperatures.
