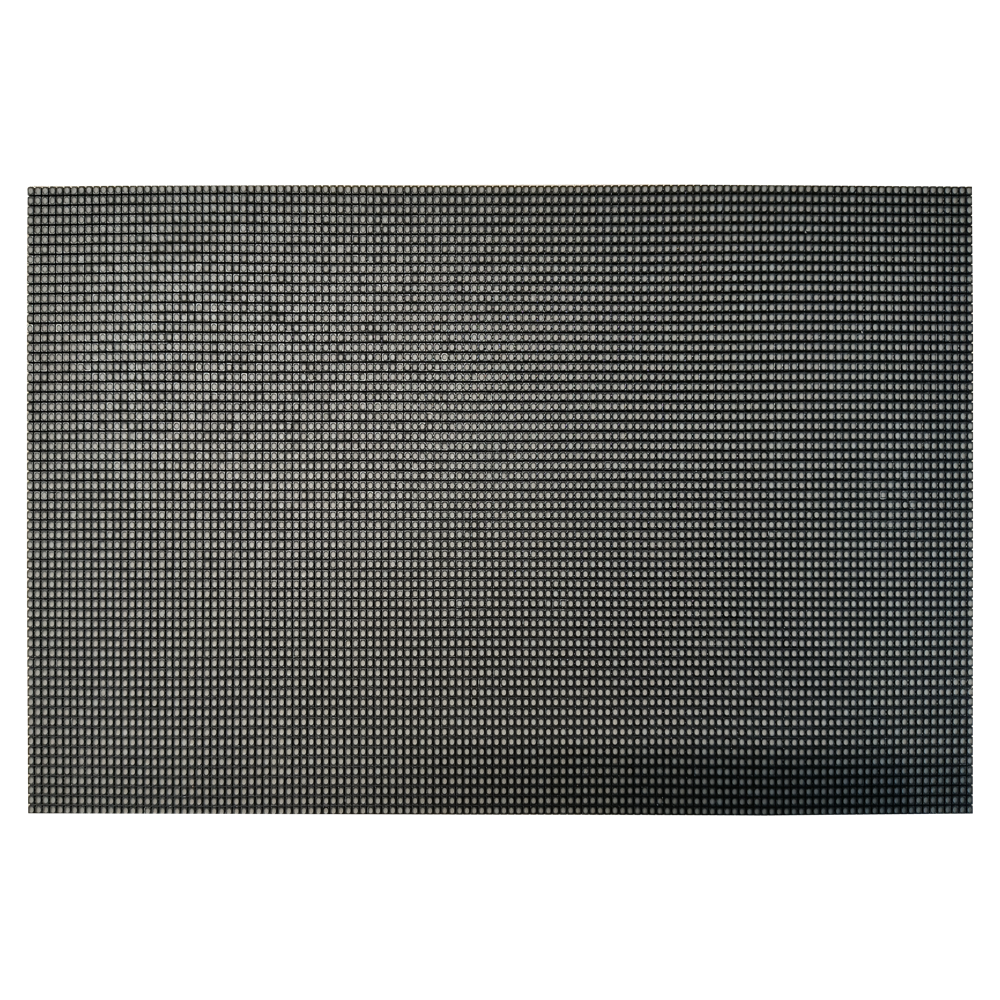

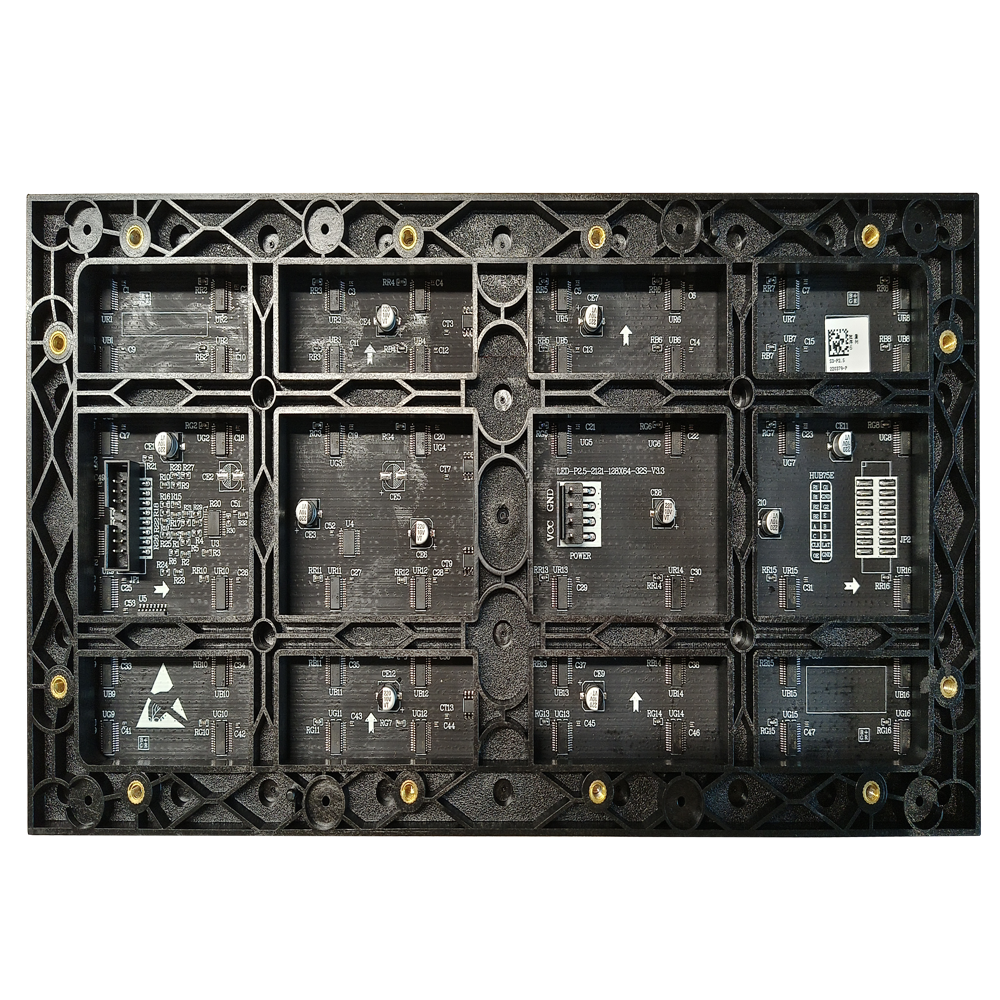

P2.5 SMD Outdoor LED Module

3000.0 INR/Number

Get a Price/Quote

Product Details:

Life Span 100,000 hours
Shape Rectangular
Operating Temperature -20 C to +60 C Fahrenheit (oF)
Power Supply 5V/60A
Efficiency (%) >85%
Beam 160 Horizontal, 140 Vertical
Response Time 1ms Hours
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

P2.5 SMD Outdoor LED Module Price And Quantity

Minimum Order Quantity 1 Piece Number
Price 3000.0 INR/Number

P2.5 SMD Outdoor LED Module Product Specifications

Warranty 1.Year
Operating Temperature -20 C to +60 C Fahrenheit (oF)
Application Outdoor Advertising, Digital Signage
Base SMD
Working Temperature -20 C to +60 C Fahrenheit (oF)
Usage & Applications Ideal for outdoor advertising billboards, retail signage, stadium displays, transportation hubs, and high-brightness public information screens.
Beam 160 Horizontal, 140 Vertical
Efficiency (%) >85%
LED Type SMD2121
Power Supply 5V/60A
Power Factor 0.90
Input Voltage DC 5V Volt (V)
Life Span 100,000 hours
Color Full Color
Shape Rectangular
IP Rating IP65
Weight 0.55 kg/piece Grams (g)
Display Type Full-Color RGB SMD Outdoor LED Display Module (High-Brightness, Weatherproof Type).
Material High-strength ABS / PC (Polycarbonate) fire-retardant plastic
Product Type Outdoor LED Module
Lamp Power 18W Volt-Ampere (VA)
Dimension (L*W*H) 320mm x 160mm x 17mm Millimeter (mm)
Wireless Distance Up to 200m (optional - wireless control) Millimeter (mm)
Size 320mm x 160mm
Humidity % 10% to 95% RH
Color Temperature 6500K 7500K (Cool White Daylight) Fahrenheit (oF)
Control Type Other
Response Time 1ms Hours
Current Rating 4.5A per module
Housing High-strength industrial ABS / Polycarbonate (PC)
Light Color RGB

Gray Scale 16-bit
Viewing Distance 2.5m to 100m
Module Resolution 128 x 64 pixels
PCB Color Black
Max Power Consumption 65W/module
Refresh Rate 1920 Hz
Maintenance Front and Rear Serviceable
Brightness 4200 cd/m
Storage Humidity 10% to 95% RH
Pixel Pitch 2.5mm
Drive Mode 1/32 Scan
Cabinet Resolution 256 x 128 pixels (for 640mm x 320mm cabinet)
Avg Power Consumption 32W/module
Module Interface HUB75
Installation Type Fixed/Rental
Storage Temperature -40C to +85C

P2.5 SMD Outdoor LED Module Trade Information

Supply Ability 5000 Number Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

P2.5 Outdoor Lampro LED Module 320160 mm

Overview

The P2.5 Outdoor Lampro LED Module (320160 mm) is a high-performance outdoor LED display solution engineered for superior visibility in bright environments. With a fine 2.5 mm pixel pitch and rugged IP-rated design, this module delivers crisp visuals and reliable performance for outdoor advertising, digital signage, sports venues, and large public displays.

Key Features

2.5 mm Pixel Pitch for Clear Outdoor Performance

Ultra-fine pixel pitch delivers sharp, high-resolution images and text ideal for engaging viewers even at closer viewing distances.

High Brightness for Daylight Visibility

Powerful LED brightness ensures exceptional legibility under direct sunlight and varying outdoor lighting conditions.

Standard 320160 mm Module Size

Modular format (320 mm 160 mm) enables flexible configuration and easy scaling to larger screen sizes.
Designed for seamless tiling with precise alignment and gap-free visuals.

Weather-Resistant & Durable Design

Robust, outdoor-ready construction with high Ingress Protection (IP65/ IP67 options) safeguards against rain, dust, and humidity.
Corrosion-resistant materials and UV-stable components extend life in challenging outdoor environments.

High Refresh Rate & Stable Performance

Advanced driving technology supports flicker-free content, smooth motion and high refresh rates perfect for dynamic video, live broadcasting, and digital advertising.

Easy Maintenance & Serviceability

Front or rear service options allow flexible installation and fast module access for maintenance.
Intelligent modular design simplifies repairs and reduces downtime.

Efficient & Reliable Operation

Optimized energy usage with thermal management ensures cooler operation and low operational cost.

Wide Viewing Angles & Color Uniformity

Uniform brightness and superb color consistency create eye-catching visuals across the full viewing field.

Typical Outdoor Applications

Outdoor advertising billboards
Retail & shopping district digital signage
Stadium and arena perimeter displays
Transportation hubs and airport signage
Public squares, event venues, and entertainment centers
