P2.5 Indoor GOB LED Display Module

Price 1900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece Number

P2.5 Indoor GOB LED Display Module Specification

Housing
Die-cast Aluminum/Plastic

Control Type
Other

Response Time
1ms Hours

Efficiency (%)
85%

Shape
Rectangular

Operating Temperature
-10 C to +60 C Fahrenheit (oF)

Wireless Distance
Up to 100m (with suitable control system) Millimeter (mm)

Humidity %
10% to 90% RH, Non-condensing

Current Rating
3.5 - 4.5A (per module)

Life Span
100,000 Hours

Power Supply
5V DC

Beam
140 (Horizontal) / 140 (Vertical)

Light Color
RGB

Product Type
Indoor GOB LED Display Module

Material
PCB, Epoxy Resin with GOB Protection

Base
SMD (Surface Mounted Device)

Power Factor
0.92

Input Voltage
DC 4.2-5V Volt (V)

Working Temperature
-10 C to +60 C Fahrenheit (oF)

Lamp Power
0.2W per LED Volt-Ampere (VA)

Application
Indoor Advertising, Stage Display, Conference, Control Room

Size
320mm x 160mm

Dimension (L*W*H)
320mm x 160mm x 20mm Millimeter (mm)

Weight
0.55kg Grams (g)

Color
Full Color (RGB)

LED Type
SMD2121

Color Temperature
6500K-9300K Fahrenheit (oF)

IP Rating
IP54

Protection Level
GOB (Glue on Board) Anti-collision, Dustproof, Moistureproof

Maintenance Type
Front Service

Module Interface
HUB75

Drive IC
ICN2038S or Equivalent

Brightness
800 nits

Module Working Voltage
DC 5V

Gray Scale
14-16 bit

Pixel Pitch
2.5mm

Resolution
128 x 64 dots

Storage Humidity
10%-95% RH, Non-condensing

Refresh Rate
1920Hz

Module Flatness
0.1mm

Module Density
160,000 dots/m

Viewing Distance
2.5m - 30m

Storage Temperature
-40C to +80C

Frame Frequency
60Hz

P2.5 Indoor GOB LED Display Module Trade Information

Minimum Order Quantity
1 Piece Number

Supply Ability
5000 Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About P2.5 Indoor GOB LED Display Module

P2.5 Indoor GOB LED Module 320160mm (Lampro Series)

Product Description

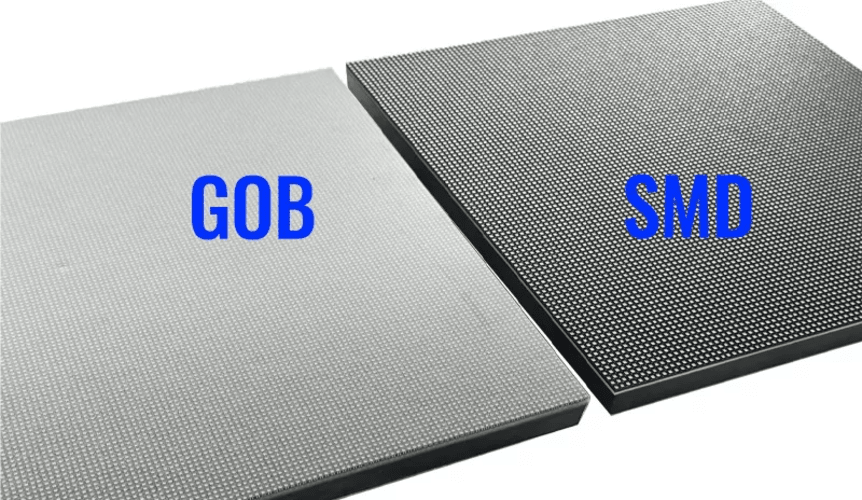

The P2.5 Indoor GOB LED Module 320160mm (Lampro Series) is a premium fine-pitch display module designed for sharp, high-quality indoor visuals with enhanced protection and durability. Featuring GOB (Glue-on-Board) technology, the LED surface is coated with a transparent silicone layer that safeguards against dust, moisture, and accidental contact perfect for high-traffic indoor environments.

With a 2.5 mm pixel pitch, this Lampro series module delivers crisp image clarity, smooth gradients, and vibrant colors optimized for indoor viewing distances. The module integrates seamlessly into indoor LED cabinets and offers reliable performance for corporate, retail, entertainment, and control room applications.

Key Specifications

Pixel Pitch: 2.5 mm
Module Size: 320 mm 160 mm
LED Type: High-quality SMD LEDs with GOB protective coating
Lampro Series: Advanced indoor LED modules
Brightness: Optimized for indoor lighting environments
Refresh Rate: 3840 Hz (Flicker-free video performance)
Viewing Angle: Wide horizontal & vertical for uniform visuals
Operating Temperature: -10 C to +45 C (Indoor use)
Input Voltage: DC 5 V
Scan Mode: 1/16 or 1/20 (depending on driver IC configuration)
Protection Level: Enhanced dust & splash resistance from GOB coating

Benefits of GOB Technology

Enhanced Surface Protection: Against dust, minor liquid splashes, and impact
Improved Durability: Reduces LED damage risk and extends module life
Consistent Visual Quality: Smoother surface with uniform brightness and color
Lower Maintenance Needs: Easier to clean and maintain in busy indoor environments
