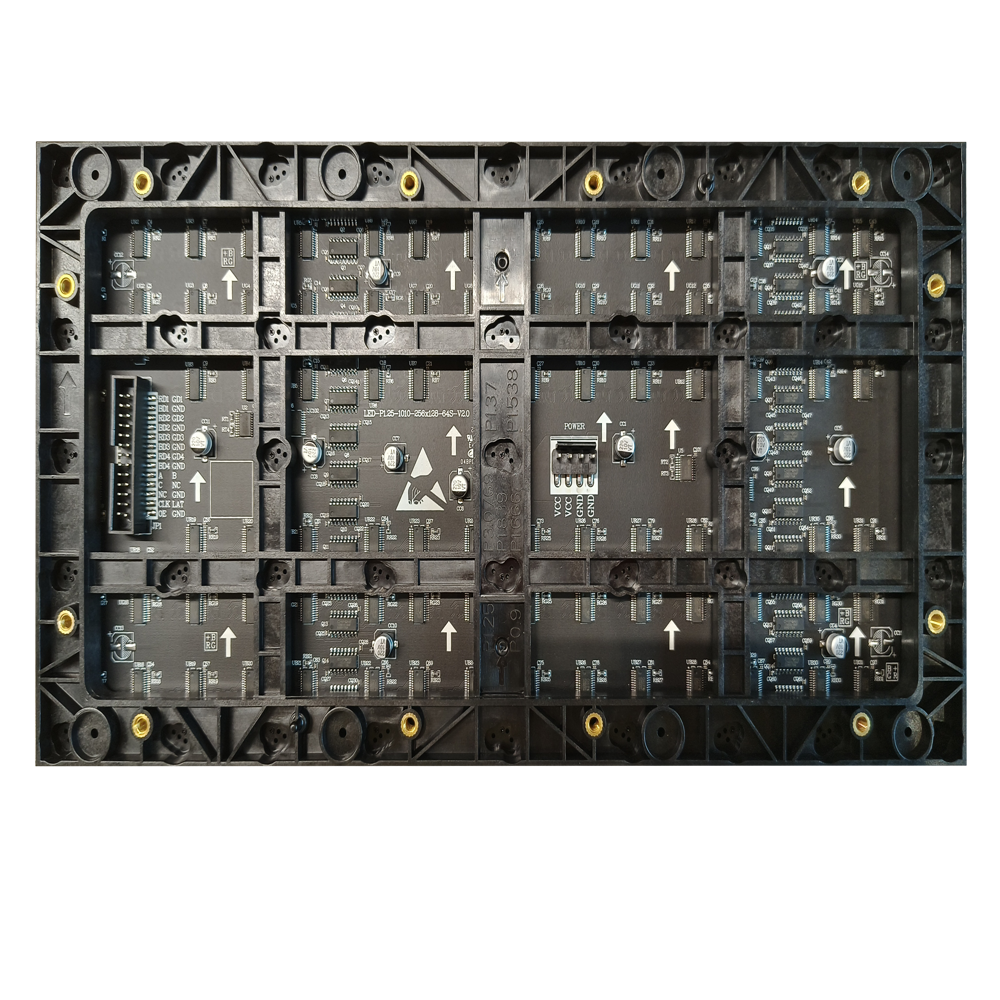

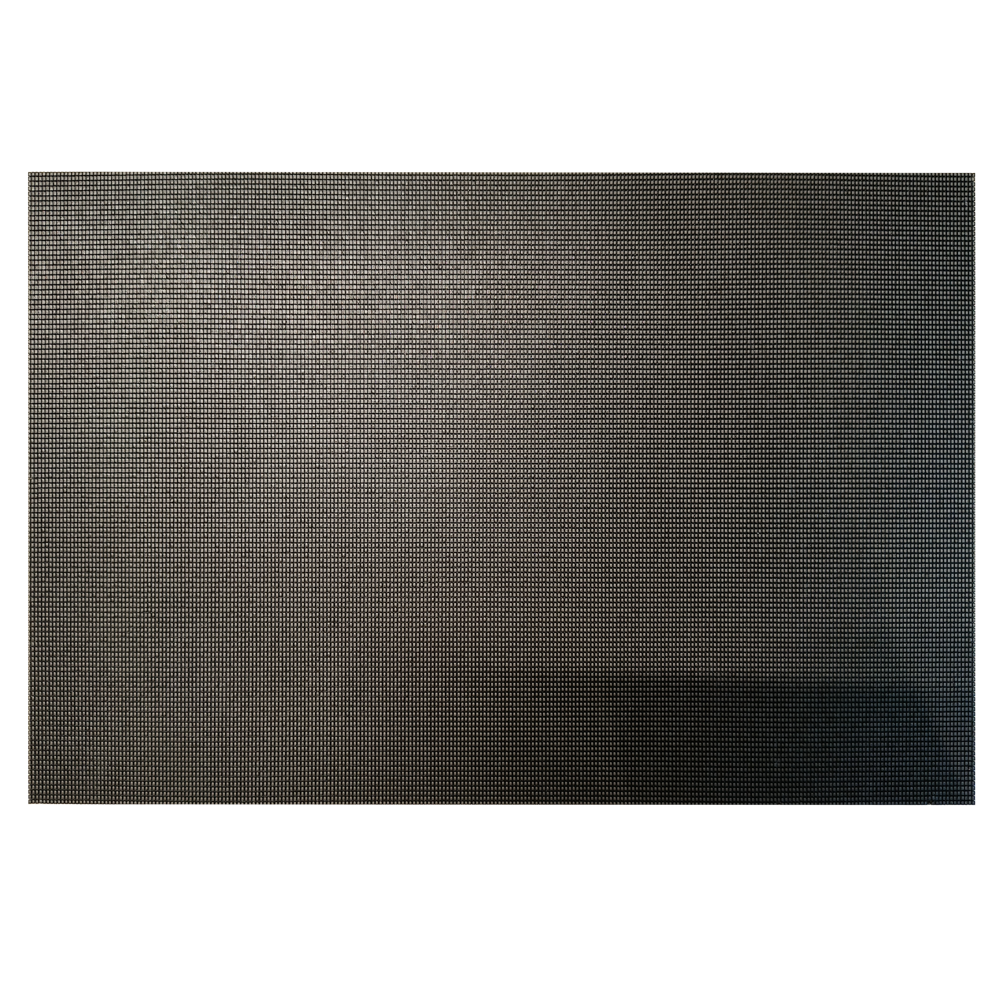

P1.25 SMD Indoor LED Module

P1.25 Indoor Lampro LED Module Product Specification

1. Pixel & Display

• Pixel Pitch: 1.25 mm

• LED Type: SMD 1515 / 1010 (High-density)

• Display Type: Full-Color RGB Indoor LED Module

• Module Resolution: 256 128 pixels (typical for 320 160 mm module)

• Pixel Configuration: 3-in-1 RGB

2. Physical Specifications

• Module Size: 320 mm 160 mm

• Module Material: High-strength ABS/PC fire-retardant housing

• Weight: Lightweight for easy installation

• Ingress Protection: IP20 (indoor use)

3. Optical Performance

• Brightness: Typical indoor high brightness (adjustable)

• Colour Temperature: 65007500 K (adjustable)

• Contrast Ratio: High contrast for vivid visuals

• Viewing Angle:

  • Horizontal: 160

  • Vertical: 140

• Grey Scale: 1416 bit (high grey levels for smooth gradients)

4. Electrical & Drive

• Refresh Rate: 3840 Hz (flicker-free, broadcast compatible)

• Scan Mode: 1/32 or 1/40 (depending on panel design)

• Driving Method: Constant current driving

• Power Supply: 5 V DC (standard LED module supply)

• Max Power Consumption: ~ 80120 W/m (varies by brightness)

• Average Power Consumption: ~ 2545 W/m (typical)

5. Connectivity

• Data Interface: HUB75 compatible

• Control System: Synchronous & asynchronous capable

• Signal Cable: Standard shielded data cable

• Connector Type: Gold plated for stable signal transmission

6. Maintenance

• Service Access: Front & Rear serviceable options

• Module Replacement: Tool-less magnetic or screw lock optional

7. Environmental & Operational

• Operating Temp: 0C ~ 40C (Indoor environment)

• Storage Temp: -20C ~ 60C

• Humidity: 10% 90% RH (non-condensing)

8. Application

Perfect for:

• Conference rooms & boardrooms

• TV studios & control rooms

• Corporate lobbies, museums & showrooms

• Retail digital signage & experiential displays

• Command & monitoring centers
