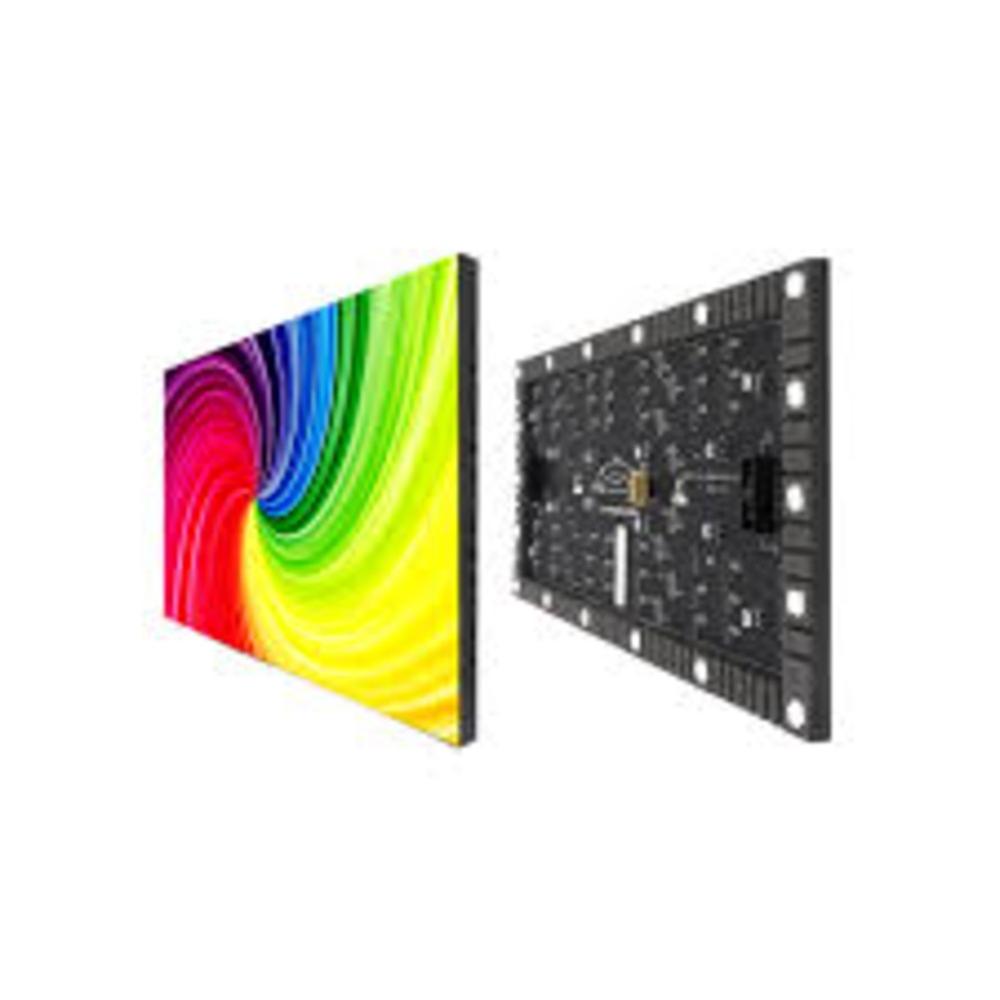

P2 Indoor Flexible Module Specification

Shape
Flexible, can be bent

Response Time
1ms Hours

Current Rating
4.8A max/module

Humidity %
10% - 90% RH

Light Color
Full Color RGB

Power Supply
5V/40A

Control Type
Other

Operating Temperature
-10 C to +65 C Fahrenheit (oF)

Life Span
>100,000 hours

Housing
Flexible PCB Module

Beam
160 horizontal/vertical

Efficiency (%)
>80%

Wireless Distance
Up to 100m (with optional wireless controller) Millimeter (mm)

Product Type
P2 Indoor Flexible LED Display Module

Material
Soft PCB+Magnet

Base
SMD2121

Power Factor
0.95

Input Voltage
DC 5V Volt (V)

Working Temperature
-20 C to +60 C Fahrenheit (oF)

Lamp Power
120W/sqm Volt-Ampere (VA)

Application
Indoor advertising, curved and cylindrical LED screens, creative displays

Size
320X160mm

Dimension (L*W*H)
320X160 Millimeter (mm)

Weight
0.25 kg/module Grams (g)

Color
SMD

LED Type
SMD

Color Temperature
6500K Fahrenheit (oF)

IP Rating
IP30

Average Power Consumption
200W/sqm

Drive Mode
1/30 scan

Storage Temperature
-30C to +80C

Maintenance
Front serviceable

LED Life Span
>100,000 hrs

Refresh Rate
1920Hz

Mount Type
Magnetic installation

Pixel Pitch
2.0 mm

Seam Gap
<1mm

Max Power Consumption
<600W/sqm

Contrast Ratio
3000:1

Signal Input
DVI, HDMI, LAN

Gray Scale
14 bit

Module Resolution
120 60 pixels

Cabinet Material
None (seamless, module-based)

Brightness
900 nits

Viewing Angle
160

P2 Indoor Flexible Module Trade Information

Minimum Order Quantity
1 Piece Number

Supply Ability
5000 Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About P2 Indoor Flexible Module

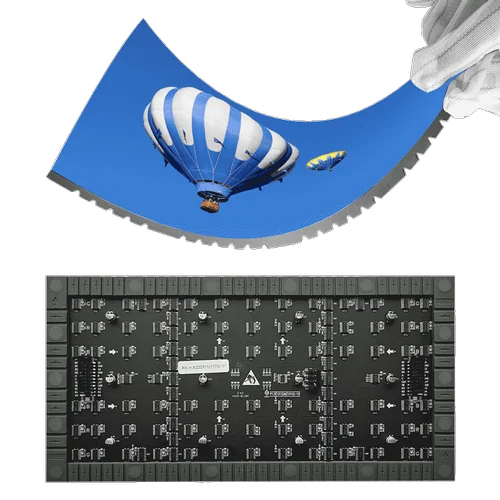

Product Description P2.5 Indoor Flexible Lampro LED Module (320160 mm)

The P2.5 Indoor Flexible Lamprop LED Module (320160 mm) is a high-resolution, full-color soft LED display panel engineered for next-generation indoor visual solutions. With a 2.5 mm pixel pitch, this module delivers crisp, detailed imagery suitable for environments where viewers are close such as retail spaces, corporate lobbies, exhibition halls, auditoriums, and creative signage.

Key Features

Exceptional Visual Clarity
Designed with a 2.5 mm fine pixel pitch and high-quality SMD RGB LEDs, it produces vibrant colors and sharp images with excellent uniformity and smooth motion video playback.

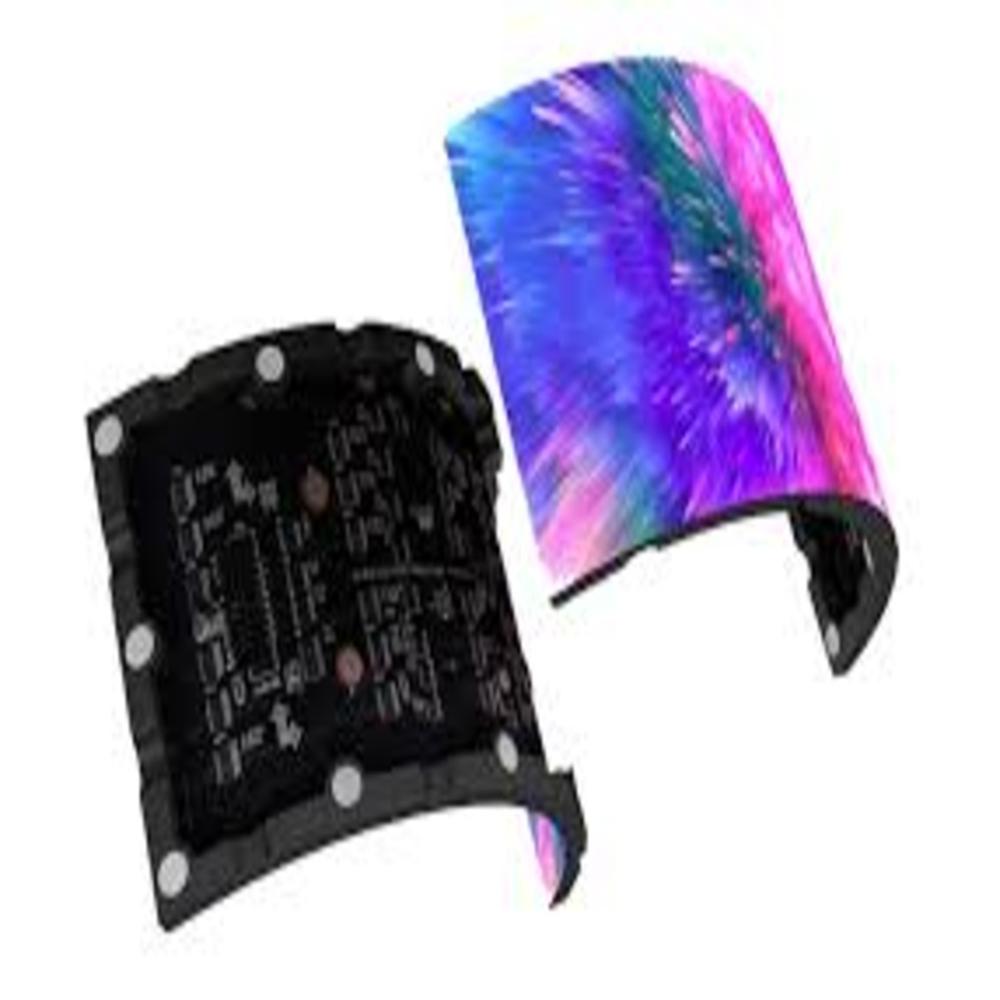

Flexible & Creative Design
Built on a soft and flexible substrate, this LED module can be bent and shaped into curves, arcs and artistic configurations without sacrificing display quality ideal for curved LED walls, architectural installations, cylindrical displays, and immersive interiors.

Easy Integration & Compatibility
The module is compatible with common LED control systems (NovaStar, Linsn, Colorlight, etc.) and supports high refresh rates for flicker-free video content. Its standard 320160 mm size and 12864 pixel resolution makes it easy to tile into larger video walls.

Lightweight & Simple Installation
The lightweight and compact design simplifies mounting and structural requirements. Flexible LED modules can be installed using magnetic frames or custom mounts, enabling fast assembly and service access.
