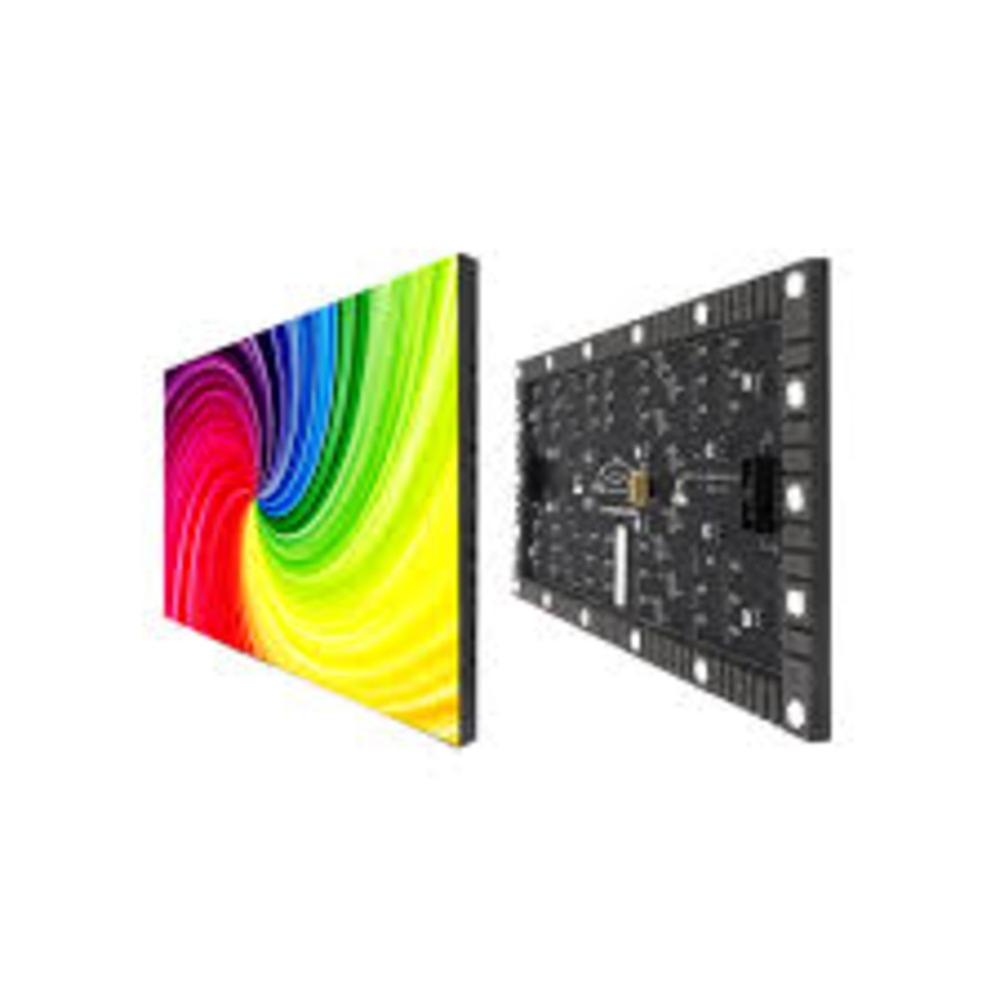

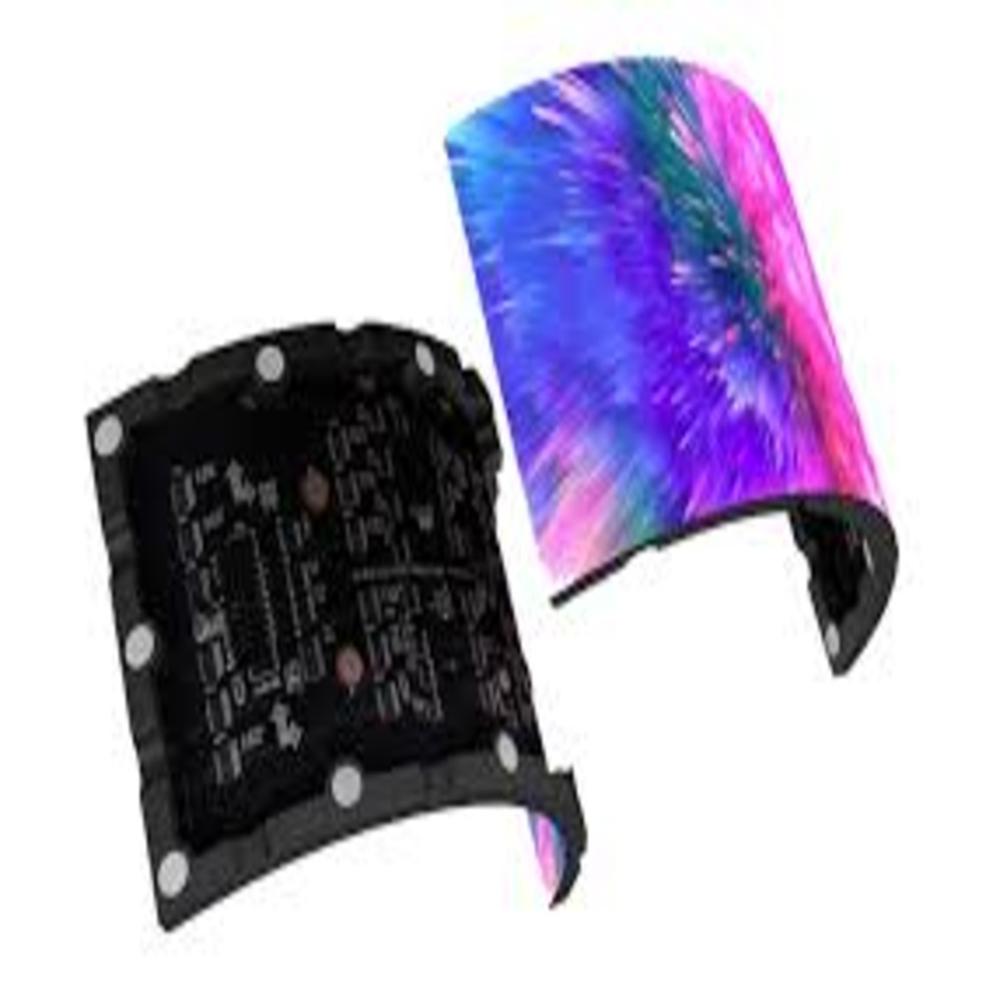

P2.5 Indoor Flexible Module

1750.0 INR/Number

Get a Price/Quote

Product Details:

Housing Flexible PCB
Operating Temperature -20 C to +50 C Fahrenheit (oF)
Current Rating 3-4A
Light Color Full Color
Efficiency (%) 85%
Humidity % 10%-95% RH
Shape Flexible/Curved
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

P2.5 Indoor Flexible Module Price And Quantity

Price 1750.0 INR/Number
Minimum Order Quantity 1 Piece Number

P2.5 Indoor Flexible Module Product Specifications

Power Supply DC Power Supply
Control Type Other
Power Factor 0.95
Life Span 100,000 hours
Weight ~0.12 kg per module GSM (gm/2)
Beam 120
Size 320X160mm
Wireless Distance Up to 200m (depends on controller) Millimeter (mm)
Response Time 1 ms Hours
IP Rating IP43
Shape Flexible/Curved
Base SMD
Dimension (L*W*H) 320X160 Millimeter (mm)
LED Type SMD2121
Efficiency (%) 85%
Humidity % 10%-95% RH
Working Temperature -20 C to +50 C Fahrenheit (oF)
Application Indoor Advertising, Curved LED Displays, Stage Design, Creative Displays
Light Color Full Color
Product Type Indoor Flexible LED Module
Color Temperature 6500K (Customizable) Fahrenheit (oF)
Color SMD
Operating Temperature -20 C to +50 C Fahrenheit (oF)
Current Rating 3-4A
Lamp Power 10-12W/module Volt-Ampere (VA)
Material Flexible FPCB/Soft Board
Input Voltage DC 5V Volt (V)
Housing Flexible PCB

Module Resolution 96 x 48 dots
Driving Method 1/32 Scan
Display Mode 800x600, 1024x768, 1280x1024, etc.
Viewing Angle 140/120 (H/V)
Connector HUB75
Service Access Front Serviceable
Mounting Type Magnetic/Frame Mount
Refresh Rate 1920 Hz
Cabinet Material Flexible Soft Rubber
Maximum Power Consumption 40W/module
Average Power Consumption 20W/module
Pixel Pitch 2.5mm
Brightness 1000 nits
Gray Scale 14-16 Bits

P2.5 Indoor Flexible Module Trade Information

Supply Ability 5000 Number Per Month
Delivery Time 10 Hours
Main Domestic Market All India

Product Description

Product Description P2.5 Indoor Flexible Lamprop LED Module (320160 mm)

The P2.5 Indoor Flexible Lamprop LED Module (320160 mm) is a high-performance, full-colour LED display panel engineered for premium indoor visual applications, creative installations, and curved LED walls. Designed with a fine 2.5 mm pixel pitch, this module delivers crisp, vivid graphics and smooth video playback even at close viewing distances making it ideal for retail environments, exhibitions, stage backdrops, corporate lobbies, and experiential displays.

Key Features

Fine Pitch High Definition: The 2.5 mm pixel pitch ensures excellent clarity and detail in text, images, and motion video perfect for indoor environments where viewers are close to the display.
Flexible & Creative Design: Built on a soft, bendable PCB, this module allows for creative shapes including convex, concave, cylindrical, ribbon, or wave-shaped installations.
Full-Color SMD LEDs: Uses SMD RGB LEDs for bright, uniform colour reproduction with wide viewing angles.
High Refresh & Smooth Playback: Capable of high refresh rates for flicker-free video playback, ideal for dynamic indoor content.
Magnetic Front Service (Optional): Many flexible modules include magnetic front-service capability for easy installation and maintenance without rear access.
Lightweight & Ultra-Thin: The lightweight design supports complex structures without adding excessive load to mounting frames.

Applications

This LED module is especially suitable for:

Curved indoor LED video walls
Retail signage & exhibition displays
Shopping malls & showrooms
Event & stage backdrops
Corporate presentation walls
Creative architectural LED installations
