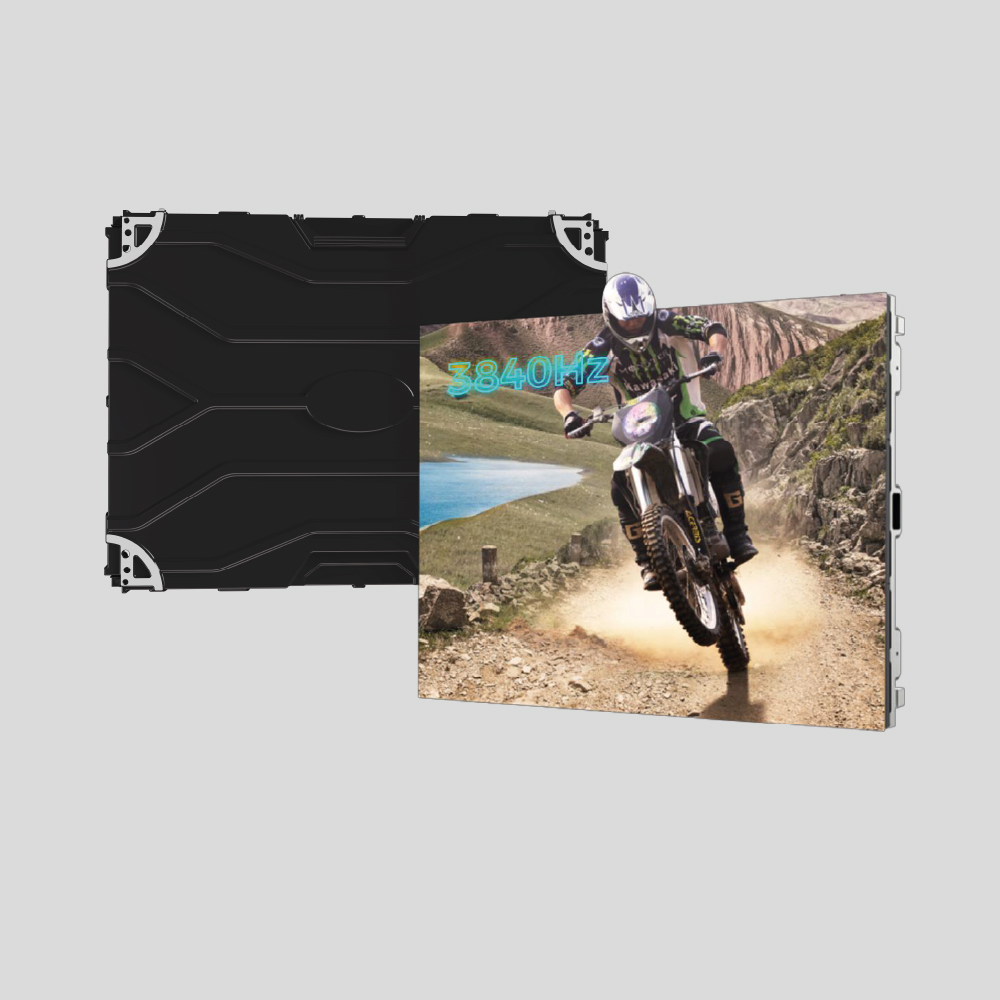

P2.5 Indoor LED Wall

5500.0 INR/Square Feet

Get a Price/Quote

Product Details:

Material Die-cast Aluminum
Installation Type Wall-mounted, Hanging, Stacking
Power Consumption Max: 650W/m , Avg: 220W/m Volt (V)
Weight ~7.5 kg/panel Kilograms (kg)
Voltage AC 110-220V Volt (v)
Control System NovaStar / Colorlight / Linsn
Features High Definition, Seamless Display, Lightweight, Front/Rear Serviceable
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

P2.5 Indoor LED Wall Price And Quantity

Minimum Order Quantity 30 Square Foot
Price 5500.0 INR/Square Feet

P2.5 Indoor LED Wall Product Specifications

Application Areas Shopping Malls, Conference Rooms, Indoor Events, Control Rooms, Exhibition Halls
Warranty 2.years
Power Rating Maximum power consumption approx. 600 800 W/m , with average consumption around 180 250 W/m , depending on brightness and content.
Conductor High-conductivity multi-strand copper power wiring with shielded data cables for stable and reliable indoor performance.
Usage & Applications deal for conference rooms, corporate boardrooms, TV studios, control centers, retail showrooms, and premium indoor video wall installations.
Pixel Pitch 2.5mm
Panel Size 640mm x 640mm
Usage Indoor
Rated Voltage Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)
View Angle 140 (Horizontal) / 140 (Vertical)
Contrast Ratio 3000:1
Operating Temperature Designed for stable indoor operation within a temperature range of 0 C to +40 C. Fahrenheit (oF)
LED Type SMD2121
Voltage AC 110-220V Volt (v)
Control System NovaStar / Colorlight / Linsn
Phase Operates on Single Phase (220V AC, 50Hz) power supply for standard indoor installations.
Display Type Full-Color RGB SMD Indoor Fine-Pitch LED Display with seamless die-cast cabinet design for high-resolution video wall applications.
Features High Definition, Seamless Display, Lightweight, Front/Rear Serviceable
Weight ~7.5 kg/panel Kilograms (kg)
Installation Type Wall-mounted, Hanging, Stacking
Frequency 3840 Hertz (HZ)
Power Consumption Max: 650W/m , Avg: 220W/m Volt (V)
Cable Type High-quality multi-strand copper power cables with FR/PVC insulation and shielded flat ribbon or twisted-pair signal cables for stable indoor data transmission.
Material Die-cast Aluminum

Humidity Range 10% - 90% RH, non-condensing

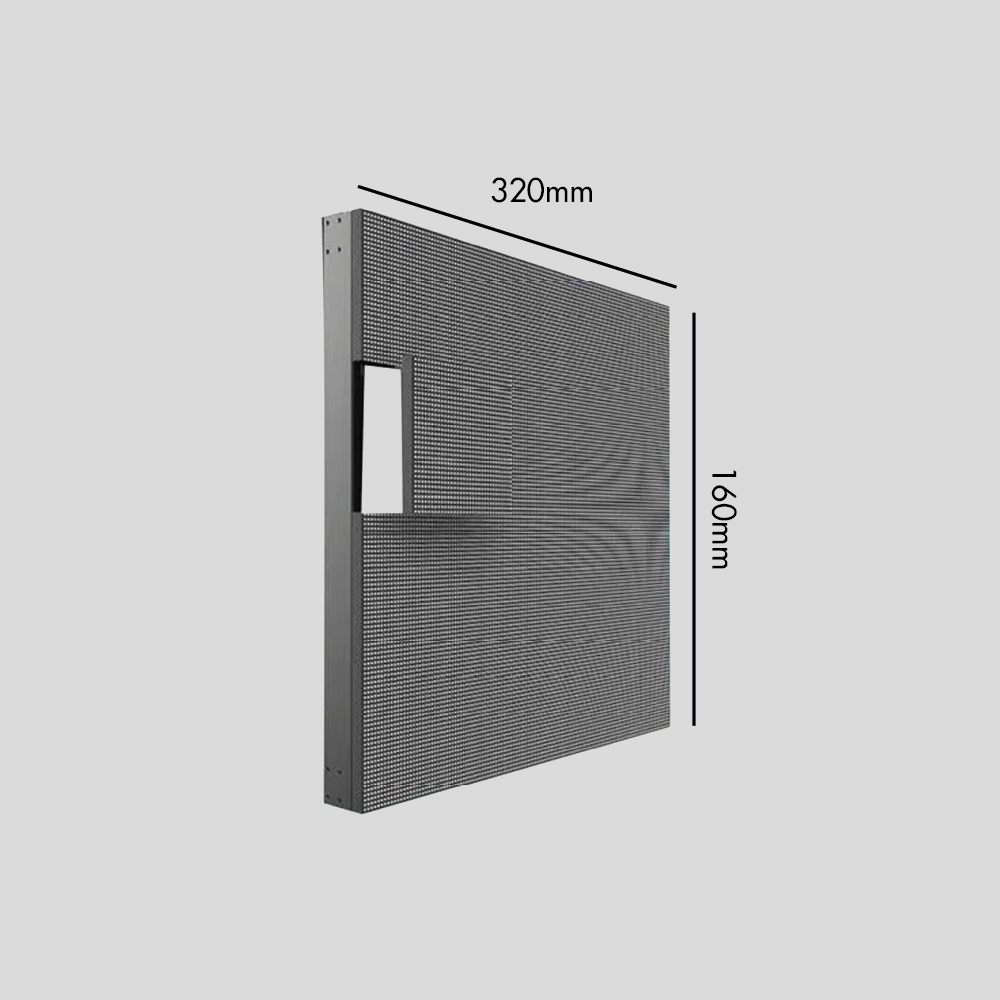

Module Size 320mm x 160mm
Lifespan >100,000 hours
Refresh Rate 1920 Hz
Gray Scale 14-bit/16-bit
Ingress Protection IP40 (Front), IP21 (Rear)
Resolution per Panel 256 x 256 pixels
Cabinet Depth 75mm
Operating Temperature -20C to +50C
Signal Input HDMI, DVI, VGA, SDI (optional)
Brightness 1200 nits

P2.5 Indoor LED Wall Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

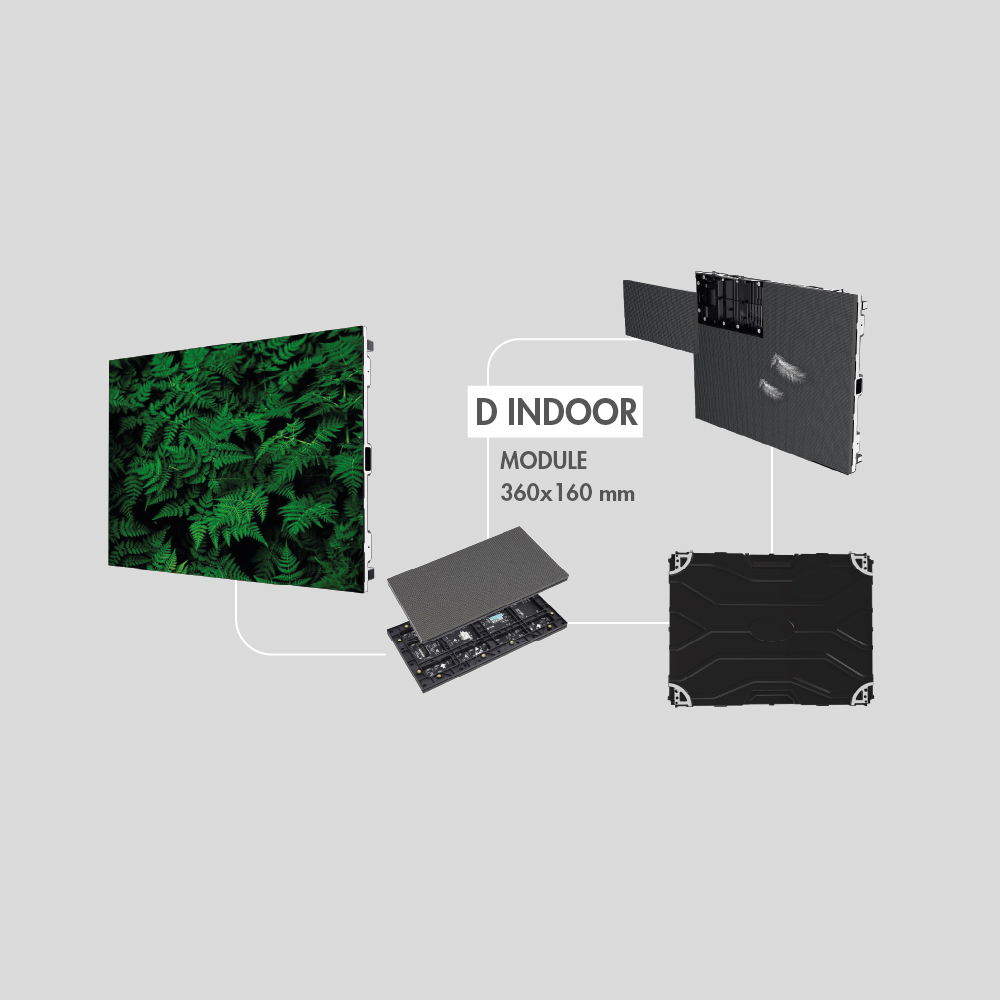

P2.5 Indoor LED Display with Die-Cast Cabinets (640480 mm) + Lampro Modules (320160 mm)

Product Overview

The P2.5 Indoor LED Display featuring precision 640480 mm die-cast aluminum cabinets and 320160 mm Lampro modules delivers high-resolution, seamless visuals for premium indoor environments. Designed for close viewing distances, this fine-pitch display ensures exceptional clarity, uniform brightness, and professional-grade performance for corporate, retail, and broadcast applications.

Key Features

2.5 mm Pixel Pitch Sharp image quality for close viewing
640480 mm Die-Cast Cabinets Lightweight, strong & precision-engineered
320160 mm Lampro Modules Perfect alignment & seamless tiling
Front Service Design Easy maintenance with magnetic module access
High Refresh Rate (3840 Hz) Flicker-free, broadcast-friendly display
Wide Viewing Angle (160) Consistent visuals from all directions
High Grey Scale (1416 Bit) Smooth color gradients & depth
Slim & Lightweight Structure Ideal for wall-mounted installations

Technical Specifications

Specification	Details
Pixel Pitch	2.5 mm
Module Size	320 160 mm
Cabinet Size	640 480 mm (Die-Cast Aluminum)
Display Type	Full-Color RGB SMD Indoor LED
Brightness	8001200 nits (adjustable)
Refresh Rate	3840 Hz
Viewing Angle	160 (H/V)
Input Voltage	AC 220V 10%, 50Hz
Operating Temperature	0C to +40C
Ingress Protection	IP20 (Indoor Use)

Applications

Corporate Boardrooms & Conference Rooms
TV Studios & Broadcast Sets
Control & Command Centers
Retail Showrooms & Luxury Brand Displays
Hotels, Auditoriums & Indoor Events

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Indoor Led Video Wall' category

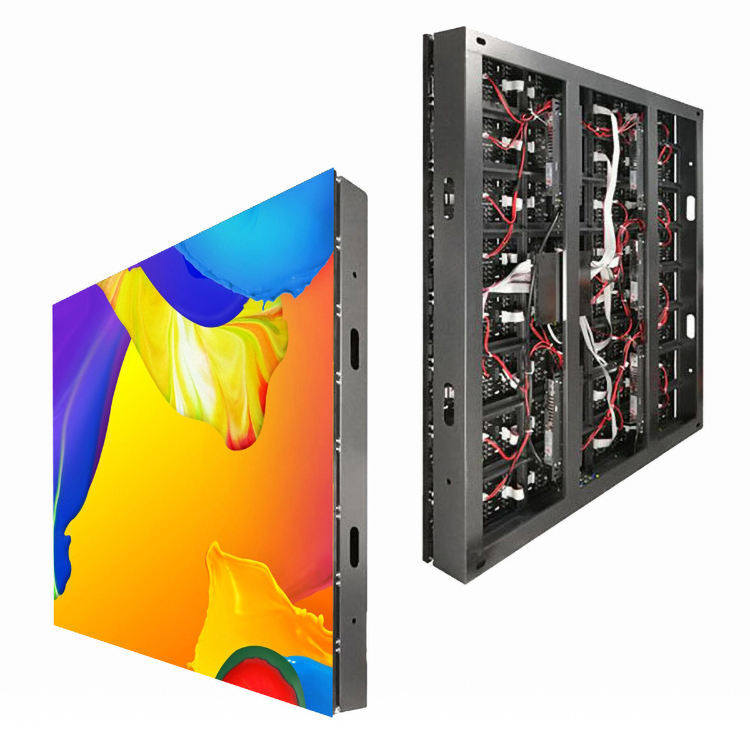

Indoor LED Display Screen Price : 5250.0 INR/Square Foot Minimum Order Quantity : 30 Warranty : 2.Years Usage & Applications : Retail showrooms, corporate offices, shopping malls, auditoriums, conference rooms, indoor advertising screens, and digital signage solutions. Usage : Indoor Display Type : Indoor Fixed LED Display Features : The NovaStar TB40 is a highperformance multimedia player for fullcolor LED displays, offering 1.3 million pixels of loading capacity, 4K@60Hz video decoding, and dual WiFi modes (AP/Sta). Key features include 2x Gigabit Ethernet ports, 16GB internal storage, and versatile content publishing from smartphones, tablets, or Material : Modules : Plastic Back Frame : MS Application Areas : Retail showrooms, corporate offices, shopping malls, auditoriums, conference rooms, indoor advertising screens, and digital signage solutions. Power Rating : Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings. Pixel Pitch : P2 Panel Size : 320X160mm Contrast Ratio : 5000 : 1 View Angle : Viewing Angle: 160 (Horizontal) / 140 (Vertical) LED Type : SMD 1515 Control System : Novastar Voltage : Input Power Max 488W/m2 Input Power Typical 163W/m2 Volt (v) Weight : 2 Kilograms (kg) Installation Type : Wall Mounted / MS Frame Structure (Fixed Installation) Frequency : 3840 HZ Hertz (HZ) Rated Voltage : Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V) Rated Current : AC90 132V/ AC186 264V Frequency 47~63 Hz Volt (v) Conductor : Highconductivity multistrand copper power wiring with shielded signal cables for stable and safe outdoor operation. Operating Temperature : Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF) Phase : Supports Single Phase (220V AC) operation, with Three Phase recommended for largescale outdoor installations. Cable Type : lat Ribbon Data Cable (HUB Connection / LAN Cable depending on controller)
