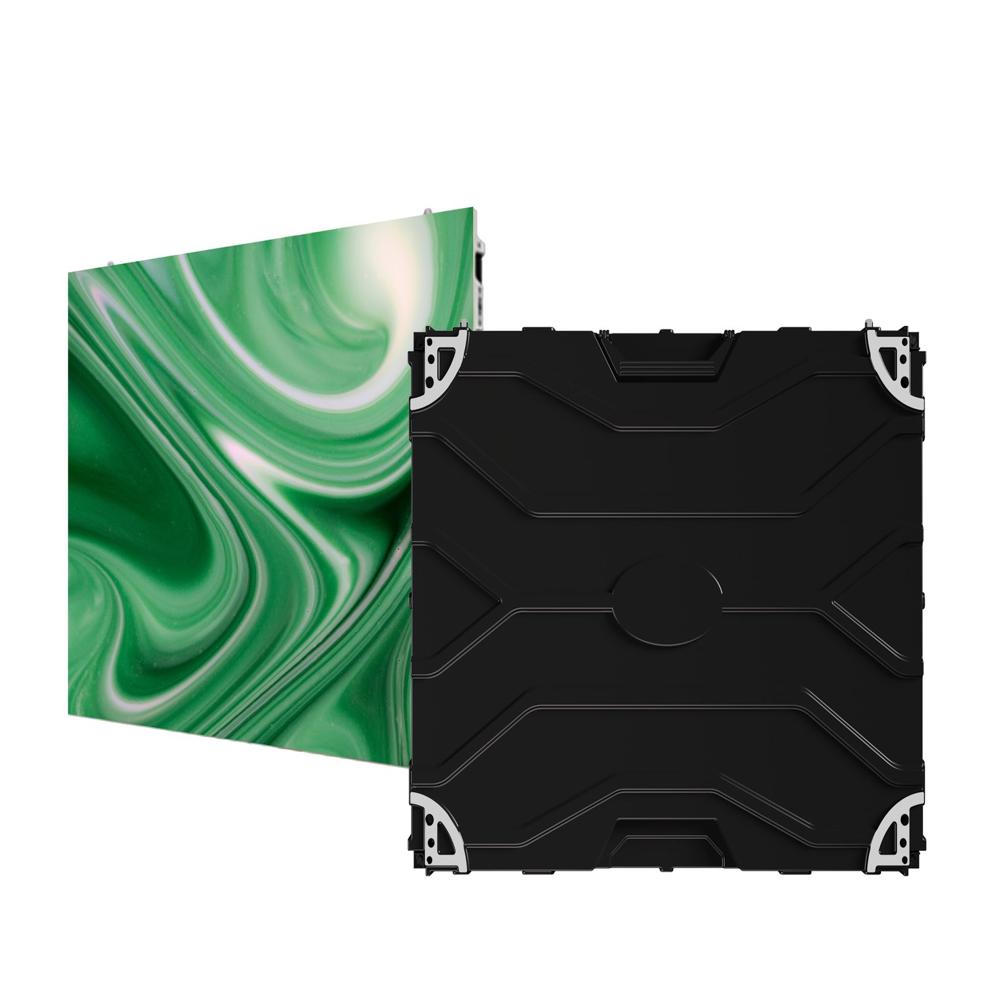

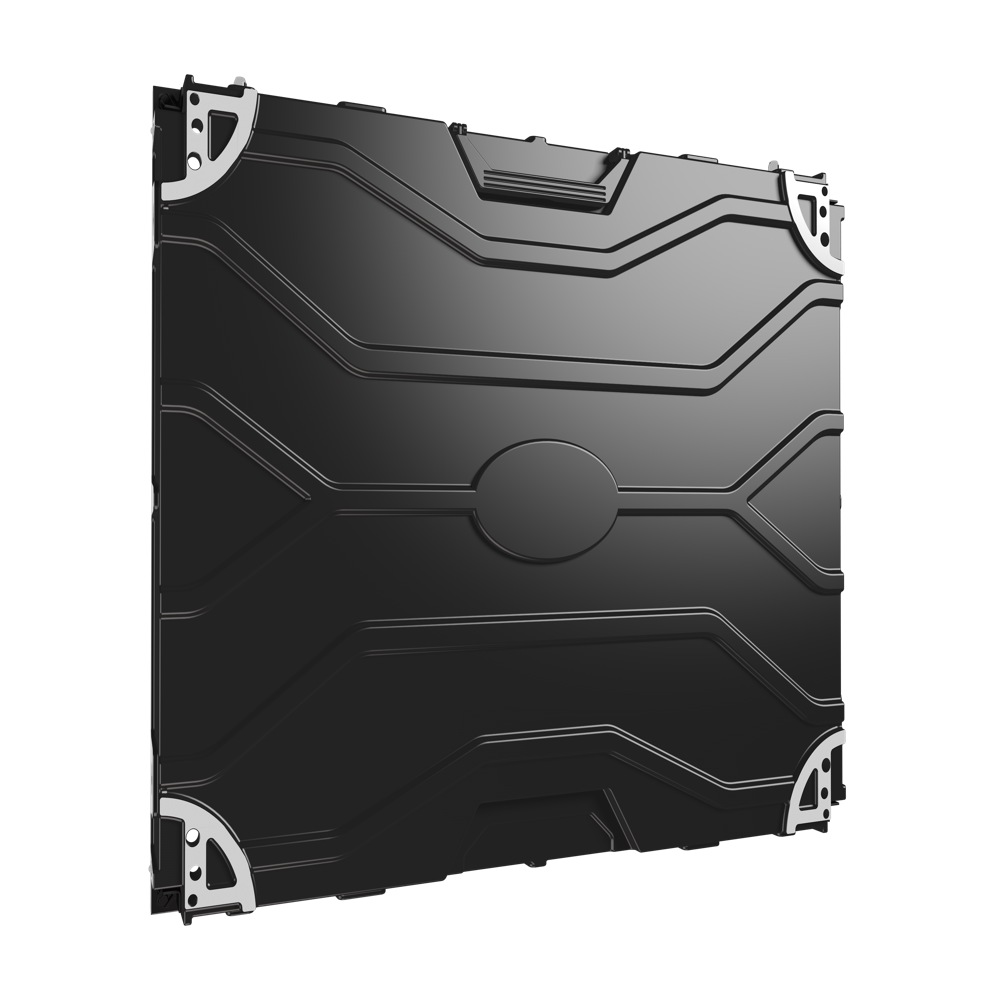

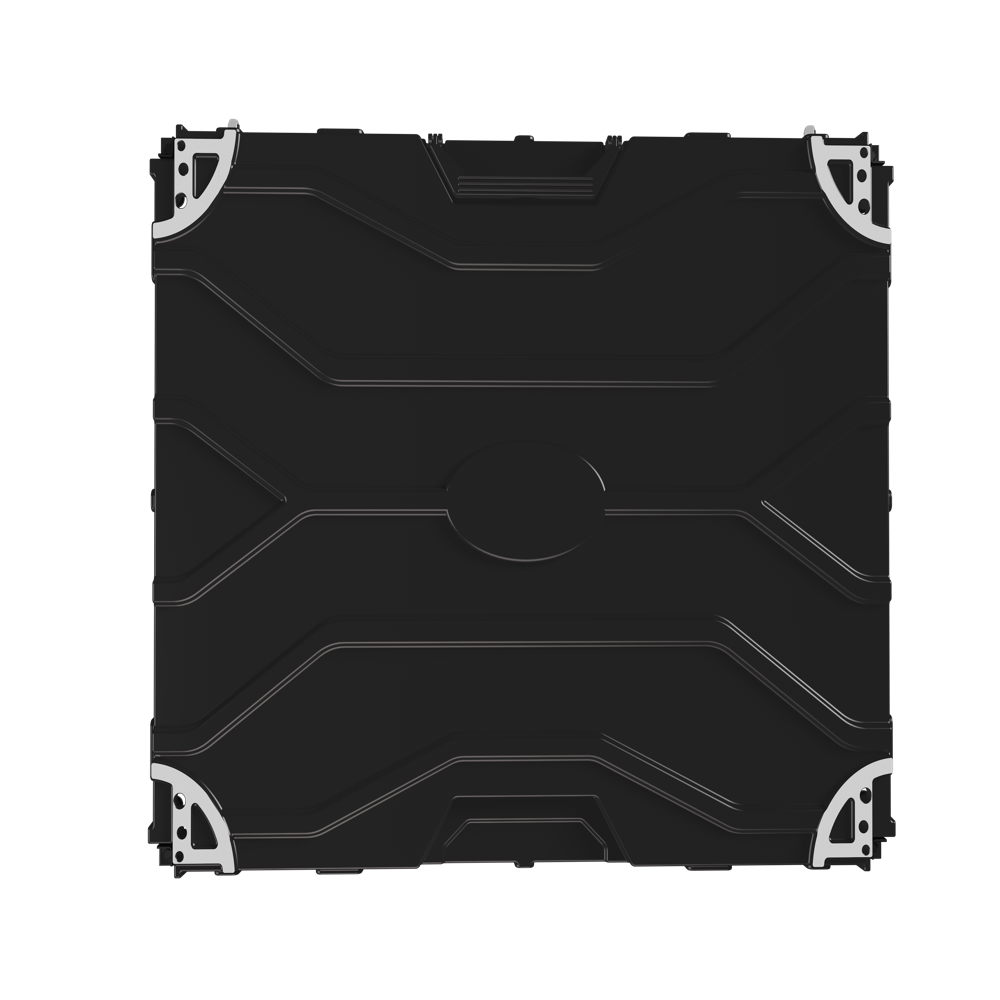

P1.8 Indoor LED Wall

7250.0 INR/Square Feet

Get a Price/Quote

Product Details:

Application Areas Conference Rooms, Shopping Malls, Auditoriums, TV Studios, Airports, Retail Stores
Pixel Pitch 1.8 mm
Control System Novastar / Colorlight / Linsn
Material Die-cast Aluminum
Features High Resolution, Seamless Splicing, Low Power Consumption, Lightweight Design
Voltage AC 110~220 V, 50/60 Hz Watt (w)
Weight 8 kg per panel (approx.) Kilograms (kg)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

P1.8 Indoor LED Wall Price And Quantity

Price 7250.0 INR/Square Feet
Minimum Order Quantity 30 Box

P1.8 Indoor LED Wall Product Specifications

Rated Voltage AC 110V 240V Volt (V)
Control System Novastar / Colorlight / Linsn
Features High Resolution, Seamless Splicing, Low Power Consumption, Lightweight Design
Usage Indoor
Material Die-cast Aluminum
Application Areas Conference Rooms, Shopping Malls, Auditoriums, TV Studios, Airports, Retail Stores
Display Type Indoor Fixed Installation, Full-Color SMD (RGB) Fine-Pitch LED Video Wall.
Power Rating MAx 488W/m2 Average 146W/m2
Pixel Pitch 1.8 mm
Contrast Ratio 3000:1
Weight 8 kg per panel (approx.) Kilograms (kg)
Operating Temperature -10 C to +45 C Celsius (oC)
Warranty 2.Years
LED Type SMD1515
Rated Current Approx. 2.8 3.0 Amps per cabinet (at 220V, Max Load) for P1.8 Indoor 640 480 Die-Cast Cabinet. Watt (w)
Frequency 3840 Hertz (HZ)
Usage & Applications High-resolution P1.8 indoor LED video wall with 640 480 die-cast cabinets and 320 160 modules for seamless, crystal-clear indoor display performance.
Panel Size 640 x 480 mm
View Angle Horizontal 160 , Vertical 140
Voltage AC 110~220 V, 50/60 Hz Watt (w)
Installation Type Wall Mounted / Hanging / Stacking
Power Consumption Max: 160 W/panel; Avg: 55 W/panel Watt (W)

Cabinet Resolution 356 x 268 pixels
Gray Scale 14~16 bit
Life Span >100,000 hours
Brightness 800 nits
Ingress Protection IP30
Frame Material Precision Die-cast Aluminum
Operating Temperature -10C to +40C
Service Access Front & Rear maintenance
Refresh Rate 1920 Hz
Module Size 320 x 160 mm

P1.8 Indoor LED Wall Trade Information

Supply Ability 5000 Box Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

P1.8 Indoor LED Video Wall 640480 Die-Cast Cabinet Series (With 320160 Indoor Modules)

Product Description

The P1.8 Indoor LED Video Wall 640480 Die-Cast Cabinet Series is a high-resolution fine-pitch display solution designed for premium indoor environments. Built with precision die-cast aluminum cabinets, this series ensures excellent flatness, structural strength, and seamless panel alignment.

Each 640480 cabinet is configured with 320160 indoor SMD modules, offering accurate pixel positioning and superior visual uniformity. With a 1.8mm pixel pitch, the display delivers ultra-sharp image clarity, smooth video playback, and vibrant color reproduction ideal for close viewing applications.

The 4:3 cabinet ratio makes it easy to create standard Full HD (19201080) and 4K display configurations with perfect scaling. Front maintenance access ensures quick servicing without dismantling the full structure, making it practical for fixed indoor installations.

Key Features

Pixel Pitch: 1.8mm (Fine Pitch Technology)
Cabinet Size: 640mm 480mm
Module Size: 320mm 160mm
Cabinet Material: High-Precision Die-Cast Aluminum
Aspect Ratio: 4:3 (Easy 16:9 & 4K scaling)
Maintenance Type: Front Serviceable
Seamless Splicing: CNC-machined cabinets for perfect alignment
High Refresh Rate: Flicker-free video performance
Wide Viewing Angle: Clear visibility from multiple angles
Energy Efficient & Long Lifespan

Technical Specifications

LED Type: SMD 1515
Brightness: Suitable for indoor controlled lighting environments
Input Voltage: AC 110V240V
Operating Temperature: -10C to +45C
Display Type: Indoor Fixed Installation
Control System: Synchronous system compatible
Installation Options: Wall-mounted / Hanging / Frame-mounted

Applications

Corporate Boardrooms
Command & Control Centers
TV Studios
Auditoriums
Conference Halls
Premium Retail & Showrooms
Hotel Lobbies

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Indoor Led Video Wall' category

P2.5 Indoor LED Wall Price : 5500.0 INR/Square Feet Minimum Order Quantity : 30 Usage : Indoor Display Type : FullColor RGB SMD Indoor FinePitch LED Display with seamless diecast cabinet design for highresolution video wall applications. Warranty : 2.years Features : High Definition, Seamless Display, Lightweight, Front/Rear Serviceable Material : Diecast Aluminum Usage & Applications : deal for conference rooms, corporate boardrooms, TV studios, control centers, retail showrooms, and premium indoor video wall installations. Contrast Ratio : 3000:1 LED Type : SMD2121 Frequency : 3840 Hertz (HZ) View Angle : 140 (Horizontal) / 140 (Vertical) Panel Size : 640mm x 640mm Installation Type : Wallmounted, Hanging, Stacking Control System : NovaStar / Colorlight / Linsn Application Areas : Shopping Malls, Conference Rooms, Indoor Events, Control Rooms, Exhibition Halls Pixel Pitch : 2.5mm Weight : ~7.5 kg/panel Kilograms (kg) Voltage : AC 110220V Volt (v) Phase : Operates on Single Phase (220V AC, 50Hz) power supply for standard indoor installations. Cable Type : Highquality multistrand copper power cables with FR/PVC insulation and shielded flat ribbon or twistedpair signal cables for stable indoor data transmission. Rated Voltage : Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V) Power Rating : Maximum power consumption approx. 600 800 W/m , with average consumption around 180 250 W/m , depending on brightness and content. Conductor : Highconductivity multistrand copper power wiring with shielded data cables for stable and reliable indoor performance. Power Consumption : Max: 650W/m , Avg: 220W/m Volt (V) Operating Temperature : Designed for stable indoor operation within a temperature range of 0 C to +40 C. Fahrenheit (oF)

Send Inquiry

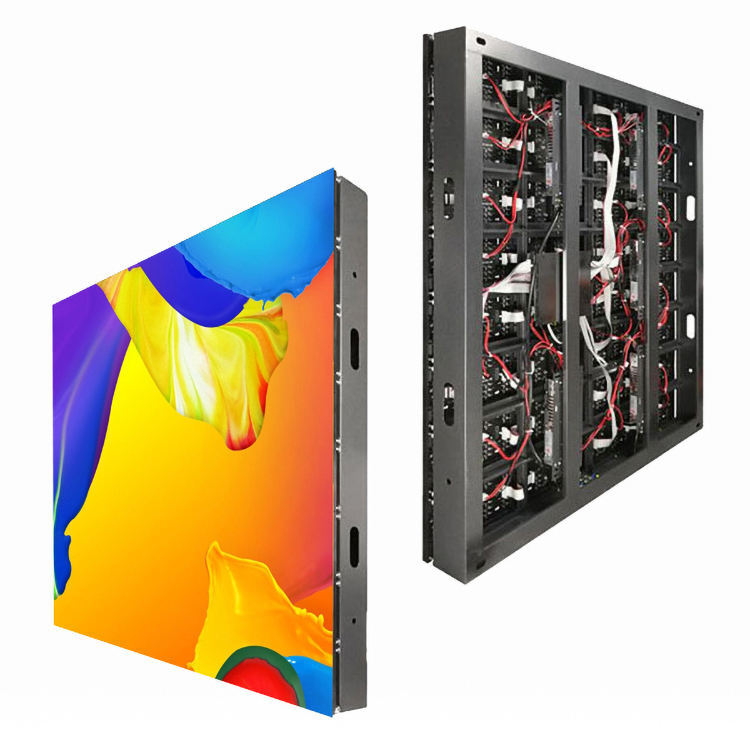

Indoor LED Display Screen Price : 5250.0 INR/Square Foot Minimum Order Quantity : 30 Usage : Indoor Display Type : Indoor Fixed LED Display Warranty : 2.Years Features : The NovaStar TB40 is a highperformance multimedia player for fullcolor LED displays, offering 1.3 million pixels of loading capacity, 4K@60Hz video decoding, and dual WiFi modes (AP/Sta). Key features include 2x Gigabit Ethernet ports, 16GB internal storage, and versatile content publishing from smartphones, tablets, or Material : Modules : Plastic Back Frame : MS Usage & Applications : Retail showrooms, corporate offices, shopping malls, auditoriums, conference rooms, indoor advertising screens, and digital signage solutions. Contrast Ratio : 5000 : 1 LED Type : SMD 1515 Frequency : 3840 HZ Hertz (HZ) View Angle : Viewing Angle: 160 (Horizontal) / 140 (Vertical) Panel Size : 320X160mm Installation Type : Wall Mounted / MS Frame Structure (Fixed Installation) Control System : Novastar Application Areas : Retail showrooms, corporate offices, shopping malls, auditoriums, conference rooms, indoor advertising screens, and digital signage solutions. Pixel Pitch : P2 Weight : 2 Kilograms (kg) Voltage : Input Power Max 488W/m2 Input Power Typical 163W/m2 Volt (v) Phase : Supports Single Phase (220V AC) operation, with Three Phase recommended for largescale outdoor installations. Cable Type : lat Ribbon Data Cable (HUB Connection / LAN Cable depending on controller) Rated Voltage : Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V) Power Rating : Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings. Conductor : Highconductivity multistrand copper power wiring with shielded signal cables for stable and safe outdoor operation. Operating Temperature : Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF) Rated Current : AC90 132V/ AC186 264V Frequency 47~63 Hz Volt (v)

Send Inquiry

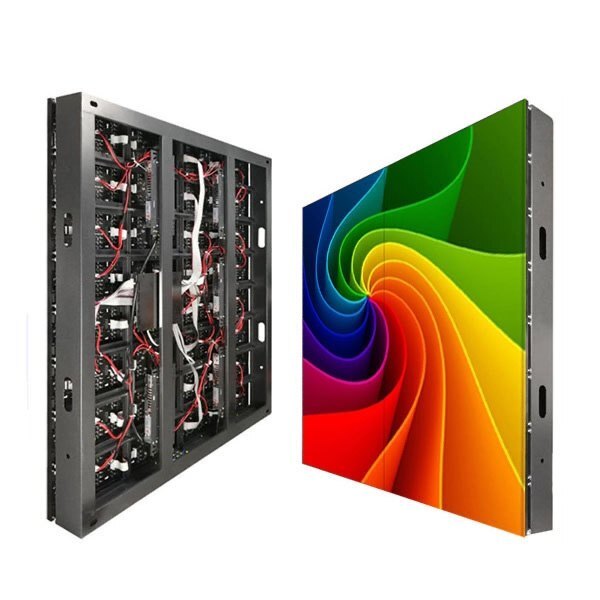

LED Wall Indoor Price : 4750.0 INR/Square Feet Minimum Order Quantity : 30 Usage : Indoor Display Type : Indoor Fixed LED Display Warranty : 2.Years Features : The NovaStar TB40 is a highperformance multimedia player for fullcolor LED displays, offering 1.3 million pixels of loading capacity, 4K@60Hz video decoding, and dual WiFi modes (AP/Sta). Key features include 2x Gigabit Ethernet ports, 16GB internal storage, and versatile content publishing from smartphones, tablets, or Material : Modules : Plastic Back Frame : MS Usage & Applications : Retail showrooms, corporate offices, shopping malls, auditoriums, conference rooms, indoor advertising screens, and digital signage solutions. Contrast Ratio : 5000 : 1 LED Type : SMD Frequency : 3840 HZ Hertz (HZ) View Angle : Viewing Angle: 160 (Horizontal) / 140 (Vertical) Panel Size : 320X160mm Installation Type : Wall Mounted / MS Frame Structure (Fixed Installation) Control System : Novastar Media Processor Application Areas : Retail showrooms, corporate offices, shopping malls, auditoriums, conference rooms, indoor advertising screens, and digital signage solutions. Pixel Pitch : P2.5 Weight : 2 Kilograms (kg) Voltage : Input Power Max 488W/m2 Input Power Typical 163W/m2 Volt (v) Phase : Supports Single Phase (220V AC) operation, with Three Phase recommended for largescale outdoor installations. Cable Type : lat Ribbon Data Cable (HUB Connection / LAN Cable depending on controller) Rated Voltage : Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V) Power Rating : Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings. Conductor : Highconductivity multistrand copper power wiring with shielded signal cables for stable and safe outdoor operation. Operating Temperature : Designed to operate reliably in outdoor conditions from 20 C to +60 C. Celsius (oC) Rated Current : Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Ampere (amp)
