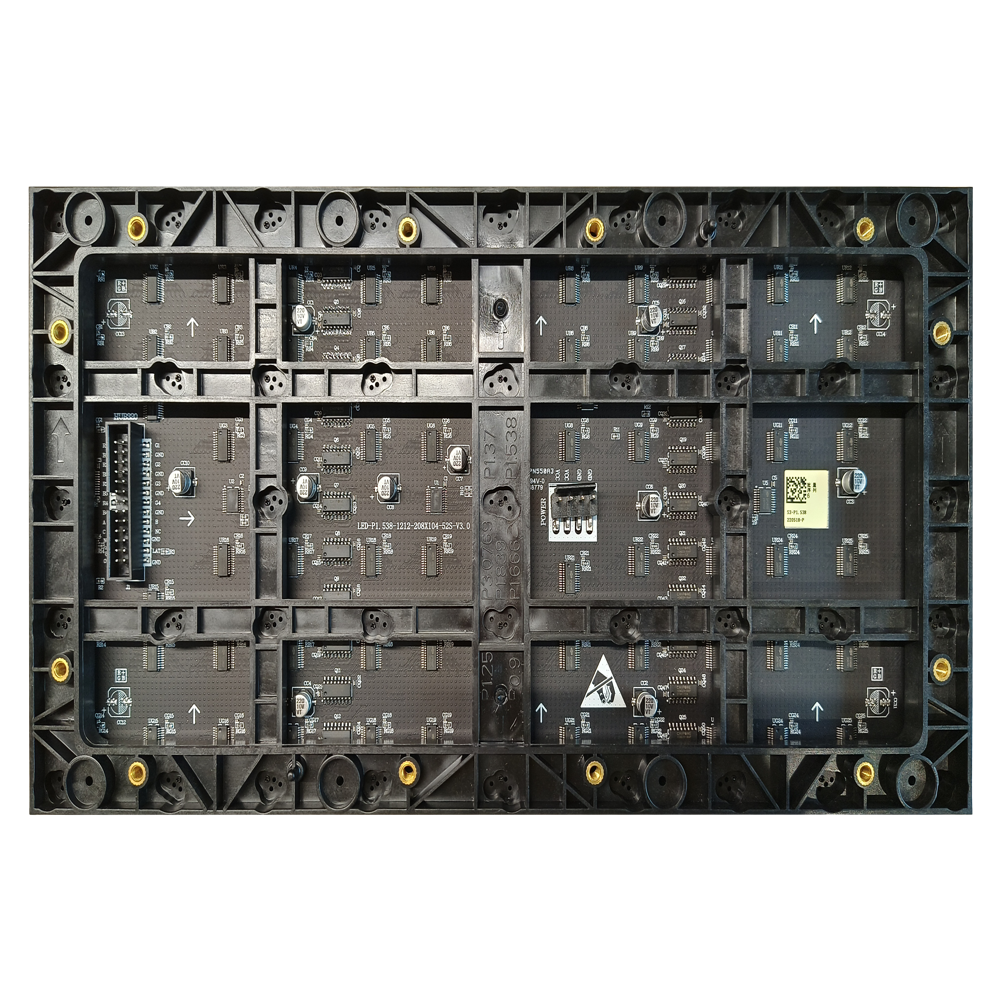

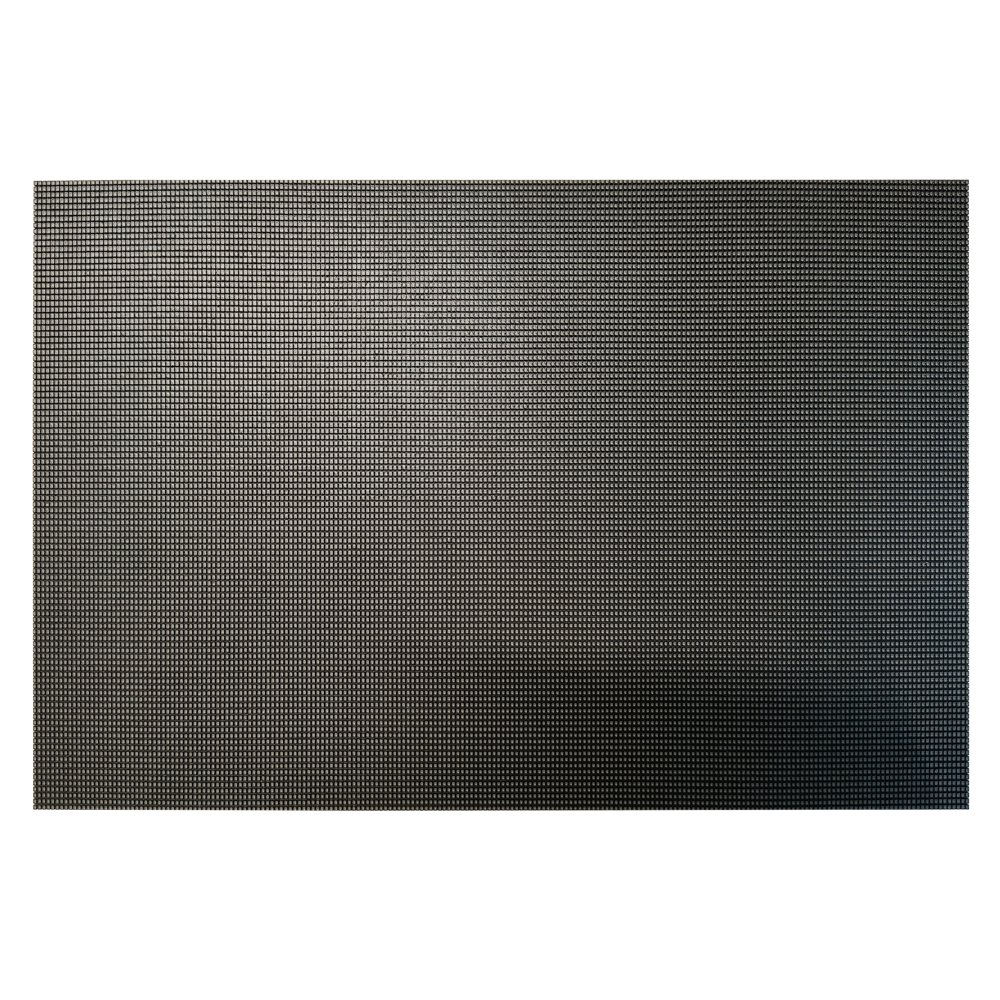

P1.5 SMD LED Module

P1.5 Indoor Lampro LED Module Product Specification

1. Pixel & Display

• Pixel Pitch: 1.5 mm

• LED Type: High-density SMD 1010 / 1515

• Display Type: Full-Color RGB Indoor LED Module

• Pixel Configuration: 3-in-1 RGB

2. Physical Specifications

• Module Size: 320 mm 160 mm (standard)

• Module Resolution: 213 107 pixels (approx., based on 1.5 mm pitch)

• Module Housing: High-strength ABS/PC fire-retardant material

• Ingress Protection: IP20 (Indoor)

3. Optical Performance

• Brightness: Typical indoor high brightness (adjustable)

• Colour Temperature: 65007500 K (adjustable)

• Contrast Ratio: High contrast for deep blacks and vivid color

• Viewing Angle:

  • Horizontal: 160

  • Vertical: 140

• Grey Scale: 1416 bit for smooth color gradients

4. Electrical & Drive

• Refresh Rate: 3840 Hz (flicker-free & broadcast friendly)

• Scan Mode: 1/32 or 1/40 (panel dependent)

• Driving Method: Constant current driving

• Power Supply: 5 V DC

• Max Power Consumption: ~ 100150 W/m (varies by brightness setting)

• Average Power Consumption: ~ 3060 W/m (typical)

5. Connectivity

• Data Interface: Standard HUB75

• Control System: Supports synchronous & asynchronous modes

• Connectors: Gold-plated for stable signal and power transmission

6. Maintenance & Service

• Service Access: Front and/or rear serviceable options

• Module Replacement: Magnetic or screw lock installation for fast servicing

7. Environmental & Operational

• Operating Temp: 0C ~ 40C (Indoor)

• Storage Temp: -20C ~ 60C

• Humidity: 10% ~ 90% RH (non-condensing)

8. Applications

Ideal for:

• Corporate boardrooms & meeting rooms

• TV broadcast studios

• Hotels, lobbies & public indoor spaces

• Retail showrooms & digital signage

• Control & command centers
