Outdoor LED Screen P3

Price 6000 INR/ Square Feet

Get a Price/Quote

Outdoor LED Screen P3 Specification

Screen Dimension
Customised

Control Mode
Novastar Video Processor

Usage

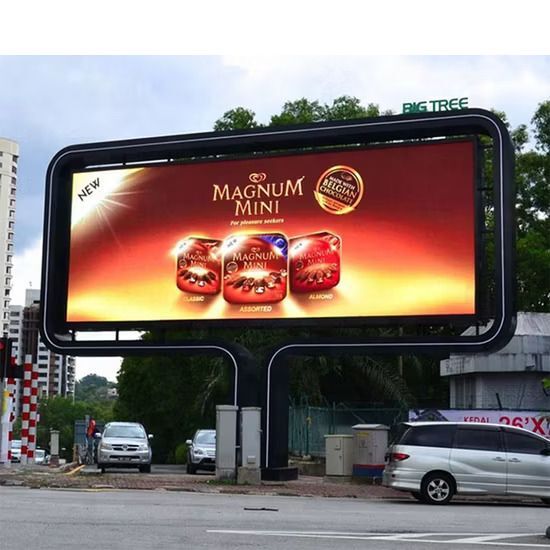

Perfect for outdoor billboards, roadside advertising, retail branding, and high-visibility public displays.

Tube Chip Color
Full Color

Pixels
P3 Px Pixel (P)

LED Type
SMD (Surface Mounted Device) Outdoor LED High brightness, full-color display.

Brightness
5000 Cd/m Sqmtr cd/m sq

Size
Customised

Application
Perfect for outdoor billboards, roadside advertising, retail branding, and high-visibility public displays.

Power Consumption
Max Power 879W/m2 Avergage Power 293W/m2 Volt-Ampere (VA)

Protection Level
IP65

Display Function
Digital

View Angle
140 (H/V)

Power Rating
Maximum power consumption approx. 650800 W/m with average consumption around 250350 W/m, depending on content and brightness settings.

Warranty
2.Years

Rated Voltage
Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)

Usage & Applications
Perfect for outdoor billboards, roadside advertising, retail branding, and high-visibility public displays.

Operating Temperature
Designed to operate reliably in outdoor conditions from 20C to +60C. Fahrenheit (oF)

Cable Type
lat Ribbon Data Cable (HUB Connection / LAN Cable depending on controller)

Display Type
Outdoor Fixed LED Display (Full Color SMD)

Phase
Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

Features
High brightness, weatherproof IP65 design, seamless display, and durable MS cabinet for reliable outdoor performance.

Conductor
High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.

Frequency
3840 HZ Hertz (HZ)

Material
Mild Steel (MS) cabinet structure with high-quality Lampro LED modules and electronic components.

Rated Current
Rated current approximately 34 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)

Outdoor LED Screen P3 Trade Information

Minimum Order Quantity
30 Square Feet

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Per Week

Delivery Time
7 Days

Main Domestic Market
All India

Certifications
BIS

About Outdoor LED Screen P3

Outdoor LED Screen ï P3

(With Mild Steel Cabinets & Lampro Modules 320ï160 mm)

Full Product Description

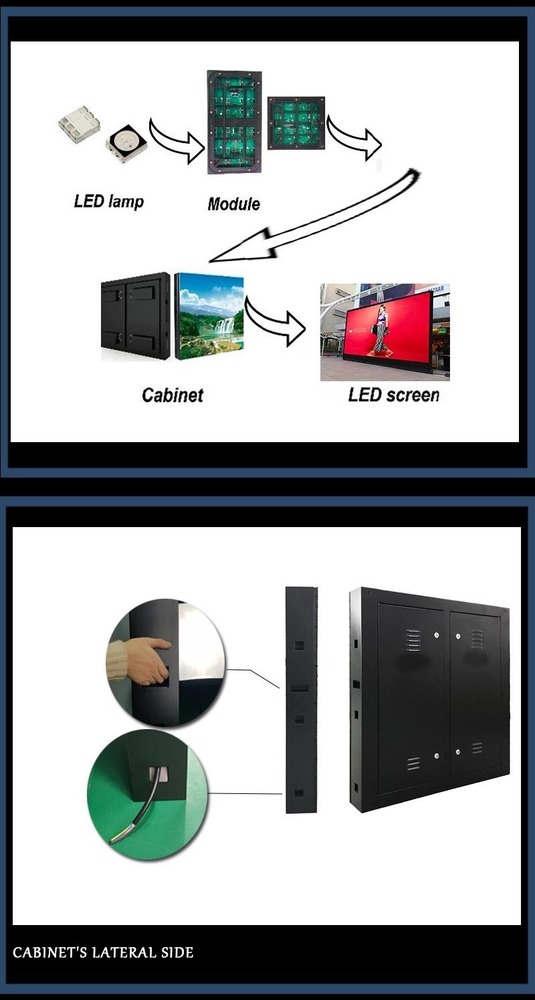

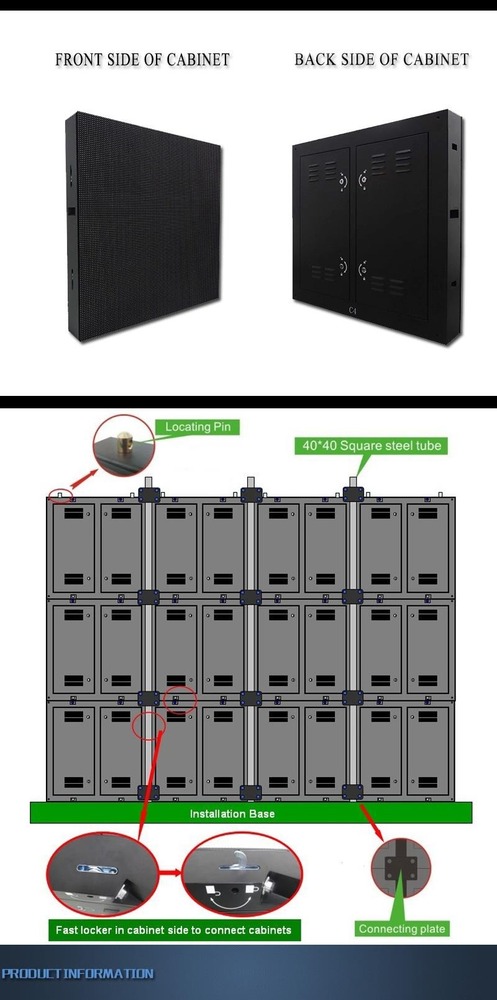

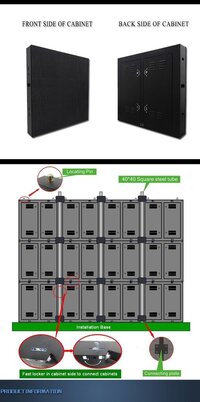

The P3 Outdoor LED Screen is designed for high-definition outdoor display applications where clarity and detail are essential. Built with Lampro modules (320ï160 mm) and strong mild steel cabinets (960ï960 mm), it ensures durability along with superior visual performance.

With a 3 mm pixel pitch, this display delivers sharper images compared to standard outdoor screens, making it suitable for relatively closer viewing distances. It offers high brightness (4500ï5000 nits) to ensure clear visibility even under direct sunlight.

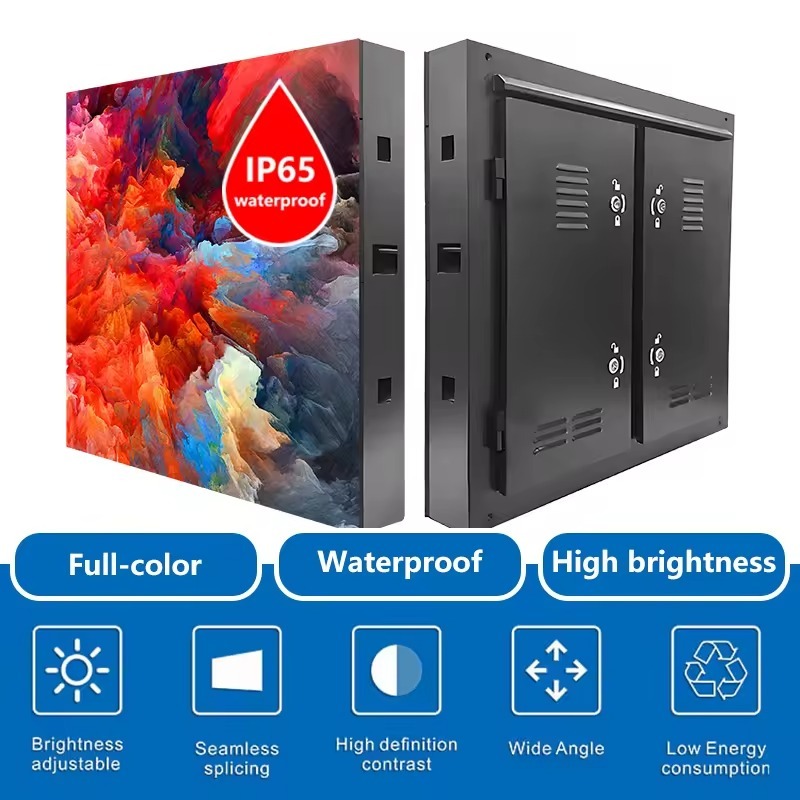

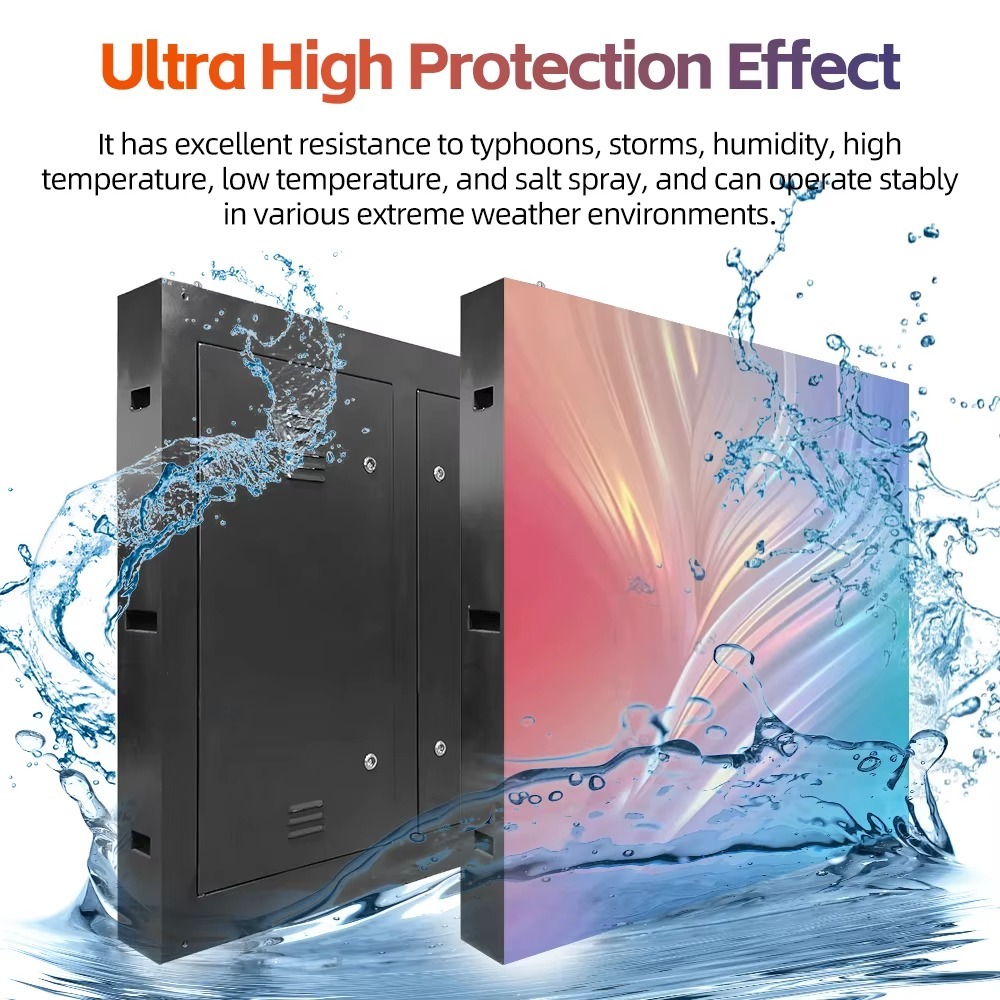

Engineered with IP65 protection, the screen is resistant to dust, rain, and harsh outdoor conditions. Its modular design allows easy maintenance and flexible customization for various installation needs.
