LED Outdoor Screen
LED Outdoor Screen
LED Outdoor Screen
LED Outdoor Screen
LED Outdoor Screen
LED Outdoor Screen
LED Outdoor Screen
LED Outdoor Screen

LED Outdoor Screen

Price 8500.0 INR/ Unit

MOQ : 30 Square Foots

LED Outdoor Screen Specification

  • Application
  • Suitable for outdoor billboards, roadside advertising, retail branding, and large public display installations.
  • Display Function
  • Digital
  • LED Type
  • SMD (Surface Mounted Device) Outdoor LED High brightness, full-color display.
  • Size
  • Customised

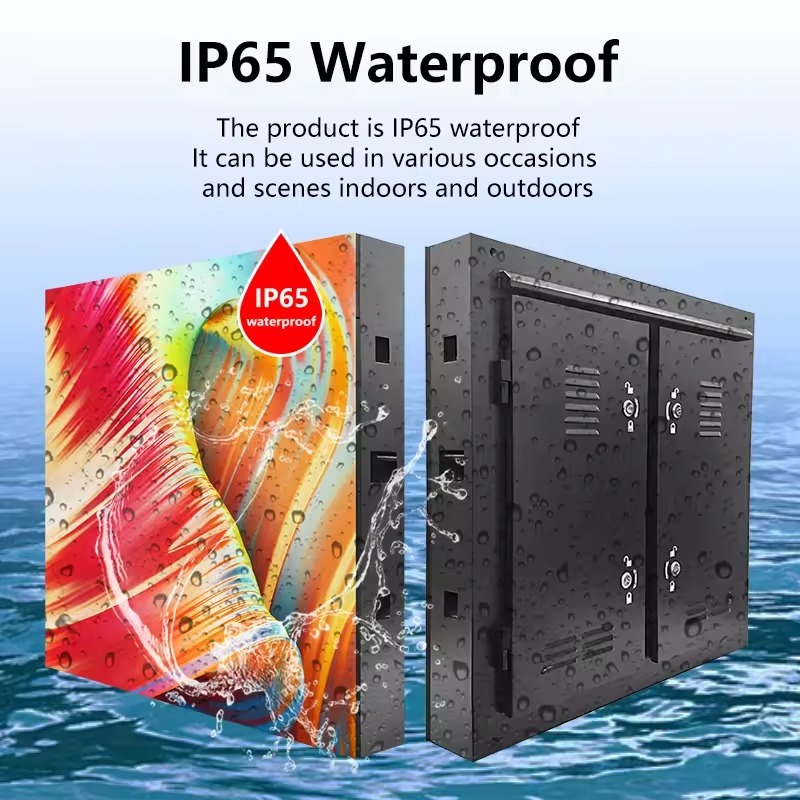

  • Protection Level
  • IP65
  • Screen Dimension
  • Customised
  • View Angle
  • 140 (H/V)
  • Usage
  • Perfect for outdoor billboards, roadside advertising, retail branding, and high-visibility public displays.
  • Control Mode
  • Novastar Video Processor
  • Pixels
  • P2.5 Pixel (P)
  • Tube Chip Color
  • Full Color
  • Brightness
  • 5000 Cd/m Sqmtr cd/m sq
  • Power Rating
  • Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.
  • Warranty
  • 2.Years
  • Usage & Applications
  • High brightness, IP65 waterproof, seamless display, and rugged MS cabinets for long-lasting outdoor performance.
  • Rated Voltage
  • Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Ampere (A)
  • Operating Temperature
  • Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF)
  • Cable Type
  • lat Ribbon Data Cable (HUB Connection / LAN Cable depending on controller)
  • Phase
  • Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.
  • Display Type
  • Outdoor Fixed LED Display (Full Color SMD)
  • Features
  • High brightness, weatherproof IP65 design, seamless display, and durable MS cabinet for reliable outdoor performance.
  • Rated Current
  • Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Watt (w)
  • Material
  • Mild Steel (MS) cabinet structure with high-quality Lampro LED modules and electronic components.
  • Frequency
  • 3840 HZ Hertz (HZ)
  • Conductor
  • High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.


LED Outdoor Screen Trade Information

  • Minimum Order Quantity
  • 30 Square Foots
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 1000 Square Foots Per Day
  • Delivery Time
  • 7 Days
  • Main Domestic Market
  • All India


About LED Outdoor Screen

P2.5 Outdoor LED Display Screen

(960960 MS Cabinets with 320160 Lampro Modules)

Detailed Product Description

With a 2.5mm pixel pitch, this LED display delivers very high pixel density, resulting in crystal-clear images, fine details, and smooth video playback. It is perfectly suited for viewing distances starting from 2.5 meters, making it one of the best choices for high-end outdoor installations.

The Lampro 320160 mm modules ensure uniform brightness and color consistency, while being designed to withstand rain, dust, humidity, and extreme temperatures.

The 960960 mm MS cabinets are fabricated with precision and coated for corrosion resistance, providing a strong and long-lasting structure. The cabinet supports rear service access, ensuring easy maintenance and reduced downtime.

With brightness levels of 50006000 nits, the display maintains excellent visibility under direct sunlight, ensuring impactful outdoor communication.


Core Features

  • Ultra-High Resolution (P2.5 Pixel Pitch): Sharp and detailed image quality
  • High Brightness (50006000 nits): Clear visibility in daylight
  • Strong MS Cabinets: Durable and weather-resistant build
  • IP65 Waterproof Protection: Reliable outdoor performance
  • Wide Viewing Angle (140160): Better audience coverage
  • High Refresh Rate (3840 Hz): Smooth and flicker-free visuals
  • Seamless Display Panels: Uniform and gapless appearance
  • Easy Maintenance: Rear service design

Technical Specifications

  • Pixel Pitch: P2.5 (2.5 mm)
  • Module Size: 320 160 mm
  • Cabinet Size: 960 960 mm
  • Pixel Density: 160,000 pixels/m
  • Cabinet Resolution: 384 384 pixels
  • LED Type: SMD Outdoor LEDs
  • Brightness: 5000 nits
  • Refresh Rate: 3840 Hz
  • Viewing Distance: 2.5m 25m
  • Ingress Protection: IP65 (Front & Rear)
  • Operating Temperature: -20C to +60C
  • LED Life: 100,000 hours

Build & Material

  • Cabinet Material: Mild Steel (MS) Powder Coated
  • Modules: Lampro 320160 mm Outdoor Modules
  • Structure: Custom MS fabrication as per site
  • Cooling: Natural ventilation / optional cooling fans

Installation Options

  • Wall-mounted installation
  • Steel structure billboard installation
  • Pole-mounted LED display
  • Hanging/suspended installation

Applications

  • Premium outdoor advertising
  • High-end retail showrooms
  • Mall faades & commercial buildings
  • Airports, metro stations & public areas
  • Event branding & digital promotions

XLNT DISPLAY Advantage

  • Ultra-high resolution outdoor display solutions
  • Premium Lampro modules for superior performance
  • Strong MS fabrication suited for Indian conditions
  • Customized sizes and installation solutions
  • Reliable service and technical support
