Advertising Led Display Screen P6

3750.0 INR/Square Foot

Get a Price/Quote

Product Details:

LED Type SMD 3-in-1
Pixels P6 Pixel (P)
Usage Outdoor Advertising
Screen Dimension Custoized
Input Voltage AC 220V 10%, 50/60Hz Volt (V)
Control Mode Synchronous/Asynchronous Control
Working Temperature -20 C to +50 C Fahrenheit (oF)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Advertising Led Display Screen P6 Price And Quantity

Price 3750.0 INR/Square Foot
Minimum Order Quantity 1 Unit Square Foot

Advertising Led Display Screen P6 Product Specifications

Rated Current Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v)
Size Customizable
View Angle Horizontal 140 , Vertical 120
Power Consumption Max 680 W/m , Avg 230 W/m Volt-Ampere (VA)
Display Type Full-Color RGB SMD Outdoor LED Display with high-brightness, weatherproof design for large-format installations.
Conductor High-conductivity multi-strand copper power wiring with shielded signal cables for stable and safe outdoor operation.
Tube Chip Color Full Color
Power Rating Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings.
Rated Voltage Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V)
Warranty 2.Years
Working Temperature -20 C to +50 C Fahrenheit (oF)
Control Mode Synchronous/Asynchronous Control
Operating Temperature 20 C to +60 C. Fahrenheit (oF)
Features High-brightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable large-format performance.
Cable Type Industrial-grade multi-strand copper power cables with FR/PVC insulation and shielded twisted-pair data cables for reliable outdoor signal transmission.
Material Heavy-duty powder-coated MS cabinet with fire-retardant ABS/PC LED modules and high-quality FR-4 PCB for durable outdoor performance.
Brightness 5500 cd/m cd/m sq
Display Function Other
Application Promotion, Outdoor Advertisement, Information Display
Frequency 3840 Hertz (HZ)
Protection Level IP65
LED Type SMD 3-in-1
Pixels P6 Pixel (P)
Usage Outdoor Advertising
Input Voltage AC 220V 10%, 50/60Hz Volt (V)
Screen Dimension Custoized
Usage & Applications deal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays.
Phase Supports Single Phase (220V AC) operation, with Three Phase recommended for large-scale outdoor installations.

Compatibility PC, Laptop, Media Box
Cabinet Material Die-cast Aluminum
Operating Humidity 10% ~ 95% RH
Lifetime 100,000 hours
Pixel Pitch 6 mm
Display Resolution 128 x 64 dots
Refresh Rate 1920 Hz
Gray Scale 16 bit
Cabinet Weight Approx. 35 kg/m

Advertising Led Display Screen P6 Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

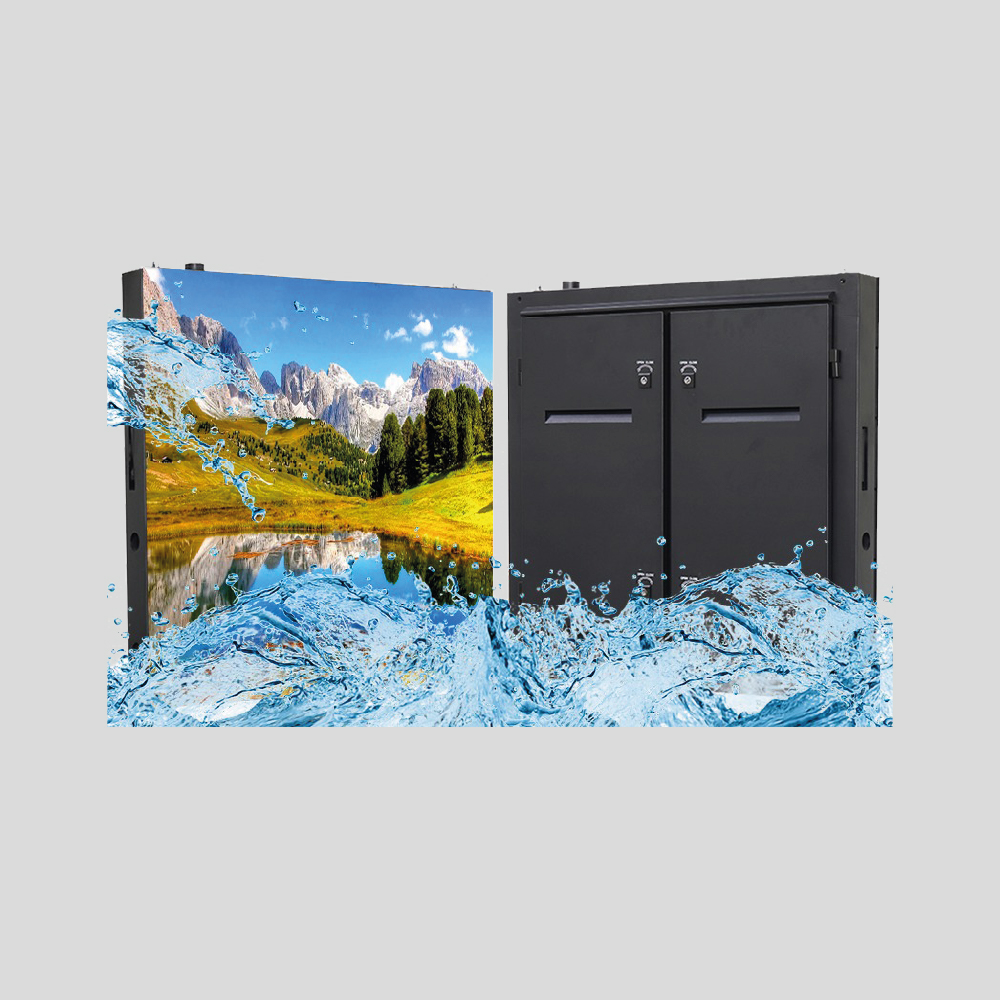

P6 Outdoor LED Display with Lampro Modules (192192 mm) + MS Cabinets 960960 mm

Product Overview

The P6 Outdoor LED Display with Lampro Modules (192192 mm) integrated into heavy-duty 960960 mm MS (Mild Steel) Cabinets is engineered for high-performance outdoor advertising and large-format digital displays. With a 6 mm pixel pitch, it provides excellent visibility for medium to long viewing distances, making it ideal for highways, commercial facades, stadiums, and public installations.

Key Features

6 mm Pixel Pitch Optimized for long-distance outdoor viewing
High Brightness (Sunlight Readable) 55006500 nits
192192 mm Lampro Modules Precise alignment & seamless tiling
960960 mm MS Cabinets Strong, powder-coated corrosion-resistant structure
IP65 Weatherproof Protection Reliable in rain, dust & humidity
High Refresh Rate (3840 Hz) Smooth, flicker-free visuals
Wide Viewing Angle (140) Clear display from multiple perspectives
Front/Rear Serviceable Design Easy maintenance & reduced downtime

Technical Specifications

Specification	Details
Pixel Pitch	6 mm
Module Size	192 192 mm
Cabinet Size	960 960 mm
LED Type	Outdoor High-Brightness SMD
Brightness	55006500 nits
Refresh Rate	3840 Hz
Ingress Protection	IP65 (Front)
Operating Temperature	20C to +60C
Input Voltage	AC 220V 10%, 50Hz
Max Power Consumption	~ 650800 W/m
Average Power Consumption	~ 250350 W/m

Applications

Highway & Roadside Billboards
Outdoor Advertising Hoardings
Stadium & Sports Displays
Transportation Hubs
Commercial Complex Facades
Government & Public Information Boards
