Advertising Led Display Screen

5000.0 INR/Square Foot

Get a Price/Quote

Product Details:

Power Consumption Max 800W/m Volt-Ampere (VA)
Size Customized Sizes Available
Screen Dimension Customized
Working Temperature -20 C to +60 C Celsius (oC)
LED Type SMD3535
Display Function Video
Brightness 5500 cd/m cd/m sq
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Advertising Led Display Screen Price And Quantity

Price 5000.0 INR/Square Foot
Minimum Order Quantity 1 Piece Square Foot

Advertising Led Display Screen Product Specifications

Control Mode Synchronous / Asynchronous Remote Control
Protection Level IP65
Rated Current Approx. 3.5 4.0 Amps per cabinet (at 220V, Max Load) for P4 Outdoor 960 960 110mm MS Cabinet. Volt (v)
Power Rating Max 750 850W per cabinet | Average 250 320W per cabinet (P4 Outdoor 960 960 110mm MS Cabinet).
Phase Single Phase (AC 110V 240V, 50/60Hz); Three Phase recommended for large outdoor display installations.
Input Voltage AC 110V/220V, 50-60Hz Volt (V)
Features Robust P4 outdoor LED display with 960 960 110mm MS cabinet and high-brightness Lampro modules delivering durable, weatherproof, and reliable performance.
Rated Voltage AC 110V 240V, 50/60Hz (Designed for standard outdoor power supply conditions). Volt (V)
Application Stadiums, Building Facades, Billboards, Roadsides
Tube Chip Color Full Color
Usage Outdoor Advertising
Pixels P4 Pixel (P)
Conductor High-conductivity copper power and signal conductors with weather-resistant insulated connectors for reliable outdoor operation.
Usage & Applications Ideal for outdoor billboards, building facades, roadside LED screens, and commercial advertising displays requiring bright and weatherproof performance.
Operating Temperature -20 C to +60 C, suitable for stable outdoor performance in heat, rain, dust, and humid conditions. Celsius (oC)

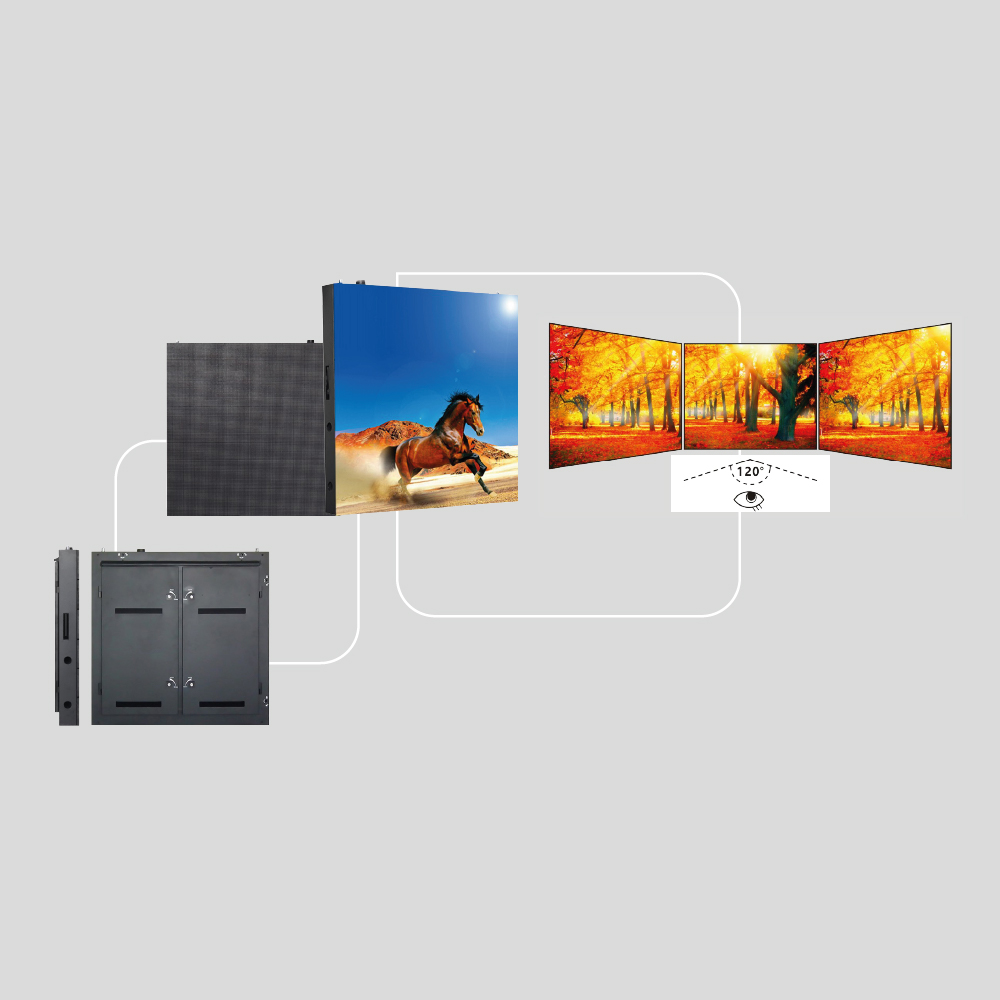

View Angle 140 Horizontal, 120 Vertical
Display Type Outdoor Fixed Installation, Full-Color SMD (RGB) LED Display with MS Cabinet Construction.
Power Consumption Max 800W/m Volt-Ampere (VA)
Working Temperature -20 C to +60 C Celsius (oC)
Material MS (Mild Steel) Cabinet with Anti-Corrosion Powder Coating and Outdoor-Grade SMD LED Modules.
Frequency 3840 Hertz (HZ)
Display Function Video
Brightness 5500 cd/m cd/m sq
LED Type SMD3535
Screen Dimension Customized
Size Customized Sizes Available
Cable Type Heavy-duty PVC insulated copper power cable with shielded CAT6/CAT6A data cable for stable outdoor signal transmission.
Warranty 2.Years

Signal Transmission Distance 100 m (default), extendable via optical fiber
Refresh Rate 1920 Hz
Cabinet Material Aluminum / Steel
Display Resolution High Definition
Life Span 100,000 Hours
Operating Humidity 10% to 90% RH
Maintenance Front / Rear Access
Mounting Type Wall Mounted, Pole Mounted, Roof Top
Gray Scale 16 bit

Advertising Led Display Screen Trade Information

Supply Ability 5000 Square Foot Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

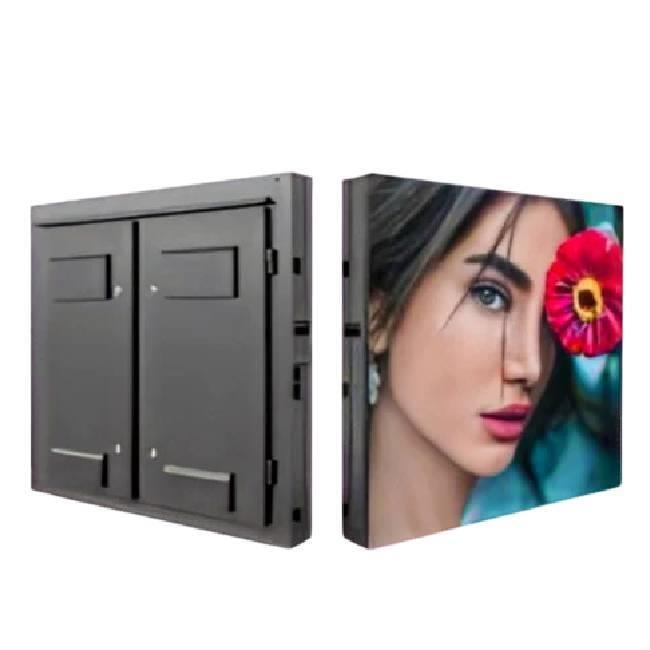

P4 Outdoor LED Display 960960110mm MS Cabinet (With 320160mm Lampro Modules)

Product Description

The P4 Outdoor LED Display with 960960110mm MS Cabinet is a high-performance and cost-effective solution designed for durable outdoor advertising and digital signage applications. Built with a strong Mild Steel (MS) cabinet, this display ensures structural stability, long-term durability, and resistance to harsh weather conditions.

Equipped with 320160mm Lampro outdoor modules, the display delivers uniform brightness, vivid colors, and sharp image clarity. With a 4mm pixel pitch, it provides excellent visibility for medium to long viewing distances, making it ideal for billboards, commercial facades, and roadside installations.

The cabinet depth of 110mm ensures sturdy construction while maintaining efficient heat dissipation and easy maintenance access.

Key Specifications

Pixel Pitch: 4mm
Cabinet Size: 960mm 960mm 110mm

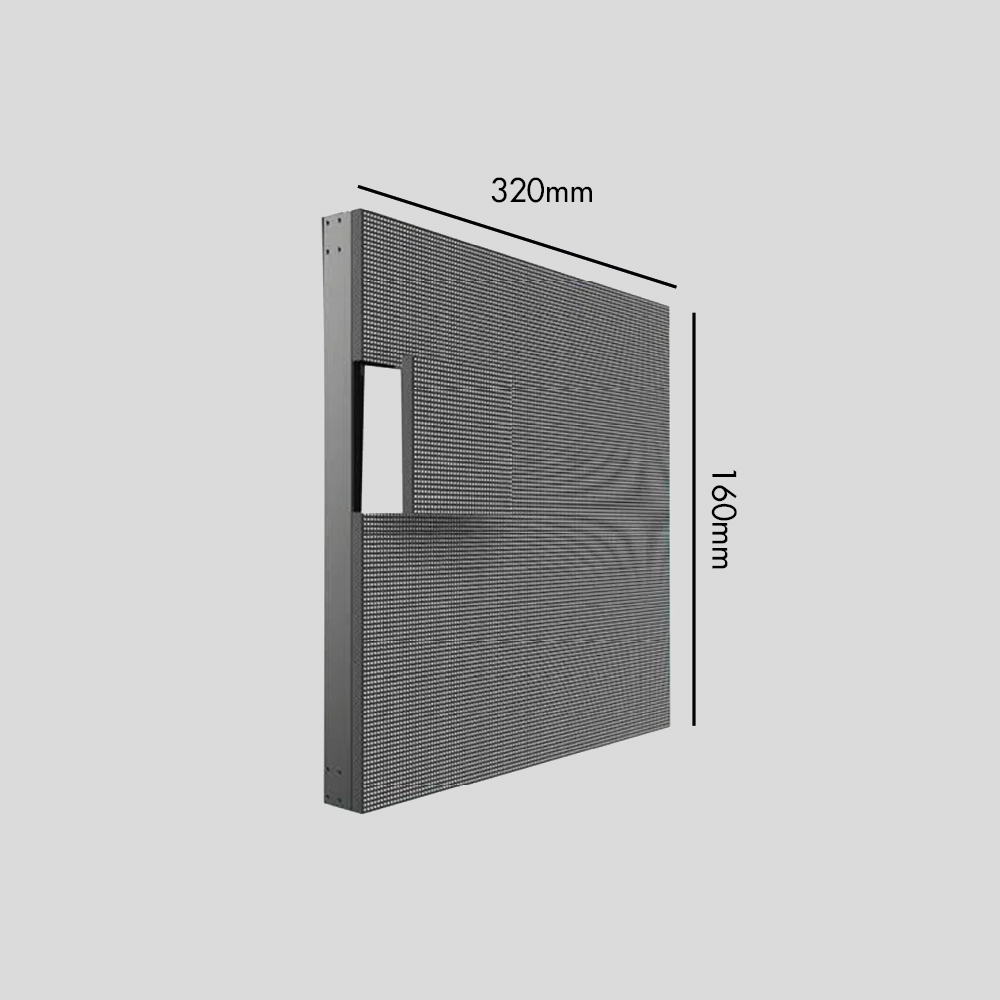

Module Size: 320mm 160mm (Lampro Outdoor Modules)
Cabinet Material: MS (Mild Steel) with Anti-Rust Coating
Brightness:5,0005,500 Nits
Protection Rating: IP65 (Outdoor Weatherproof)
Rated Voltage: AC 110V240V, 50/60Hz
Operating Temperature: -20C to +60C
Power Rating: Max 750850W | Avg 250320W per cabinet
Rated Current: Approx. 3.54.0 Amps (at 220V, Max Load)
Maintenance: Rear Service (Front optional depending on structure)
Phase: Single Phase (Three Phase recommended for large screens)

Applications

Outdoor Advertising Hoardings
Highway & Roadside LED Screens
Commercial Building Facades
Mall & Retail Outdoor Signage
Public Information Displays

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Outdoor Led Display Screen' category

Outdoor LED Display Price : 5000.0 INR/Square Feet Minimum Order Quantity : 30 Brightness : 5000 Cd/m Sqmtr cd/m sq Display Function : Video LED Type : SMD Size : Customised Screen Dimension : Customised Usage : Indoor Tube Chip Color : Full Color Pixels : P4 Pixel (P) Control Mode : Novastar Video Processor Protection Level : IP65 Application : Outdoor View Angle : Viewing Angle: 160 (Horizontal) / 140 (Vertical) Frequency : 3840 HZ Hertz (HZ) Material : Modules : Plastic Back Frame : MS Warranty : 2.Years Usage & Applications : Ideal for outdoor advertising, billboards, retail facades, and highvisibility public display applications. Display Type : Outdoor Fixed LED Display (Full Color SMD) Cable Type : lat Ribbon Data Cable (HUB Connection / LAN Cable depending on controller) Conductor : Highconductivity multistrand copper power wiring with shielded signal cables for stable and safe outdoor operation. Operating Temperature : Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF) Power Rating : Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings. Rated Current : Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v) Phase : Supports Single Phase (220V AC) operation, with Three Phase recommended for largescale outdoor installations. Rated Voltage : Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V) Features : The NovaStar TB40 is a highperformance multimedia player for fullcolor LED displays, offering 1.3 million pixels of loading capacity, 4K@60Hz video decoding, and dual WiFi modes (AP/Sta). Key features include 2x Gigabit Ethernet ports, 16GB internal storage, and versatile content publishing from smartphones, tablets, or

Send Inquiry

Advertising Led Display Screen P6 Price : 3750.0 INR/Square Foot Minimum Order Quantity : 1 Unit Brightness : 5500 cd/m cd/m sq Display Function : Other LED Type : SMD 3in1 Size : Customizable Screen Dimension : Custoized Usage : Outdoor Advertising Tube Chip Color : Full Color Pixels : P6 Pixel (P) Control Mode : Synchronous/Asynchronous Control Protection Level : IP65 Application : Promotion, Outdoor Advertisement, Information Display View Angle : Horizontal 140 , Vertical 120 Frequency : 3840 Hertz (HZ) Material : Heavyduty powdercoated MS cabinet with fireretardant ABS/PC LED modules and highquality FR4 PCB for durable outdoor performance. Warranty : 2.Years Usage & Applications : deal for highway billboards, outdoor advertising hoardings, stadium screens, commercial facades, and large public information displays. Display Type : FullColor RGB SMD Outdoor LED Display with highbrightness, weatherproof design for largeformat installations. Working Temperature : 20 C to +50 C Fahrenheit (oF) Cable Type : Industrialgrade multistrand copper power cables with FR/PVC insulation and shielded twistedpair data cables for reliable outdoor signal transmission. Power Consumption : Max 680 W/m , Avg 230 W/m VoltAmpere (VA) Conductor : Highconductivity multistrand copper power wiring with shielded signal cables for stable and safe outdoor operation. Operating Temperature : 20 C to +60 C. Fahrenheit (oF) Power Rating : Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings. Rated Current : Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v) Phase : Supports Single Phase (220V AC) operation, with Three Phase recommended for largescale outdoor installations. Input Voltage : AC 220V 10%, 50/60Hz Volt (V) Rated Voltage : Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V) Features : Highbrightness P6 outdoor display with durable MS cabinet, IP65 weather protection, wide viewing angle, and high refresh rate for reliable largeformat performance.

Send Inquiry

Outdoor LED DIsplay Screen Price : 4750.0 INR/sq Minimum Order Quantity : 30 Brightness : 5000 Cd/m Sqmtr cd/m sq Display Function : Video LED Type : SMD Size : Customised Screen Dimension : Customised Usage : Outdoor Tube Chip Color : Full Color Pixels : P4 Pixel (P) Control Mode : Novastar Video Processor Protection Level : IP65 Application : Outdoor Frequency : 3840 HZ Hertz (HZ) Material : MS Warranty : 2.Years Usage & Applications : Ideal for outdoor advertising, billboards, retail facades, and highvisibility public display applications. Display Type : Outdoor Fixed Installation Cable Type : lat Ribbon Data Cable (HUB Connection / LAN Cable depending on controller) Conductor : Highconductivity multistrand copper power wiring with shielded signal cables for stable and safe outdoor operation. Operating Temperature : Designed to operate reliably in outdoor conditions from 20 C to +60 C. Fahrenheit (oF) Power Rating : Maximum power consumption approx. 650 800 W/m with average consumption around 250 350 W/m , depending on content and brightness settings. Rated Current : Rated current approximately 3 4 Amps per cabinet (at 220V AC), depending on brightness level and content load. Volt (v) Phase : Supports Single Phase (220V AC) operation, with Three Phase recommended for largescale outdoor installations. Rated Voltage : Operates on AC 220V 10%, 50Hz input, with DC 5V module operating voltage via SMPS power supply. Volt (V) Features : High brightness, weatherproof IP65 design, seamless display, and durable MS cabinet for reliable outdoor performance.

Send Inquiry

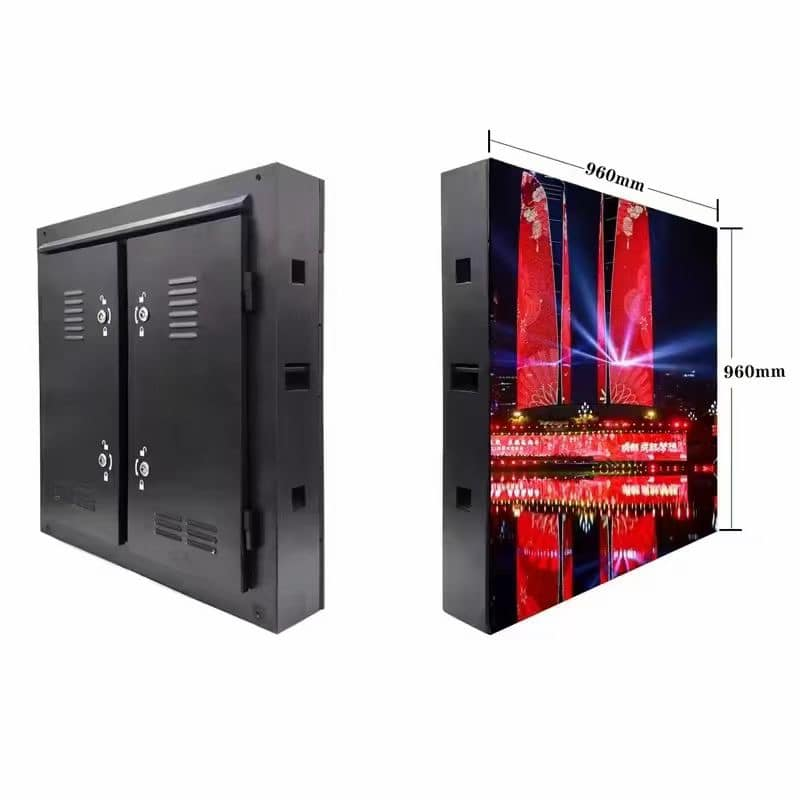

Advertising LED Display Screen P5 Price : 4750 INR/Square Foot Minimum Order Quantity : 30 Brightness : 5000 cd/m sq Display Function : Video LED Type : SMD2525 Size : Customizable Screen Dimension : 960mm x 960mm Usage : Outdoor/Indoor Advertising Tube Chip Color : Full Color Pixels : P5 Pixel (P) Control Mode : Synchronous or Asynchronous Control Protection Level : IP65 Application : Events, Commercial Ads, Retail, Stage Backdrops View Angle : Horizontal 140 , Vertical 140 Frequency : 3840 Hertz (HZ) Material : MS Warranty : 2 Usage & Applications : Outdoor Display Type : LED
